Introduction

Changes in cerebral perfusion are one symptom of chronic and acute illnesses in head diseases. Various theories propose that a capillary map can be used to diagnose the capillaries as a cause of illness and can contribute to the strategy for the treatment of the underlying disease [ 1 ]. Cerebral blood flow (CBF), cerebral blood volume (CBV), and mean transit time (MTT) are used in the perfusion imaging and in examining damaged tissues of the body [ 2 ]. An MRI scanner and popular perfusion-imaging techniques such as dynamic susceptibility contrast (DSC) and arterial spin labeling (ASL) are used to measure these parameters. However, both techniques, especially DSC, face many problems in computing various parameters of perfusion. Tremendous effort has been expended to find a mathematical model for the DSC method. Noise plays an important role in the instability of the parameters involved in the perfusion imaging and has a significant effect on thresholding. The signal-to-noise ratio (SNR) is a dependent parameter and bolus delay is a source of errors in the perfusion measurements. To measure these uncertainties and errors, perfusion models must be studied using phantoms with the same capillary network dimensions as in humans.

Various types of phantoms are used in the study of perfusion models [ 3 ], with the simplest providing detailed information while the most complicated may not be appropriate for testing perfusion models.

In this paper, we introduce a new phantom with a complex capillary network and with which perfusion parameters can be measured accurately. The capillary density of this phantom is similar to that of the human body and, therefore, can provide a CBV similar to that of the human body. The phantom was fabricated using lithographic techniques, the flexibility of which allows the simulation of capillary diseases such as stenosis. This phantom can be used to study perfusion model errors and enhance the perfusion-imaging technique.

Material and Methods

Theory

In this analytical study, most perfusion models consist of two basic models: the Kety Schmidt model [ 4 ] for penetrating contrast agents, and the Meier Zierler model for nonpenetrating contrast agents. These two models are the same in terms of computing, but they are essentially different from each other. In the following, we discuss the Meier Zierler model because we use a nonpenetrating contrast agent. First, the residue function is defined as [ 5 ]:

$R\left(t\right)=1-{\int }_0^{t}h\left(t\right)\mathrm{dt}$ (1)

Where h is the vascular transport function. The density-time diagram of the tissue is related to the density-time diagram using the following convolution equation:

$C_T=F{\int }_{\mathrm{-\infty }}^t{C}_A(t-\tau )R\left(\tau \right)\mathrm{d\tau }=F)C_A⦻R($ (2)

Where F is the flow rate, and is the same as CBF, and C_A is the arterial input function. Equation (2) can be used to control perfusion measurements. To calculate the contrast agent the rate convolutions should be taken of the residue function and the arterial input function (AIF). CBV and MTT, two other parameters involved in perfusion are calculated as follows [ 6 ]:

$\mathrm{CBV}=\frac{{\int }_{\mathrm{-\infty }}^{\infty }{C}_T\mathrm{dt}}{{\int }_{\mathrm{-\infty }}^{\infty }{C}_A\mathrm{dt}}$ (3)

$\mathrm{MTT}=\frac{\mathrm{CBV}}{\mathrm{CBF}}$ (4)

Design of MicroPhantom

In designing the phantom, we used the tree pattern used in quantitative studies on the cardiovascular network and Murray’s minimum work rule [ 7 ]. To simulate the hemodynamics of the vessels (Figure 1). According to the minimum work rule, nature uses a minimum of four energies. Therefore, the relationship between the diameter and the bifurcation angle of the capillaries is [ 8 ]:

$\frac{r_0^3}{f_0}=\frac{r_1^3}{f_1}=\frac{r_2^3}{f_2}=\mathrm{const}$ (5)

$\cos \left({\theta }_1\right)=\frac{r_0^4+r_1^4-r_2^4}{r_1^4{r}_2^4}$ (6)

$\cos \left({\theta }_2\right)=\frac{r_0^4+r_1^4-r_2^4}{r_1^4{r}_2^4}$ (7)

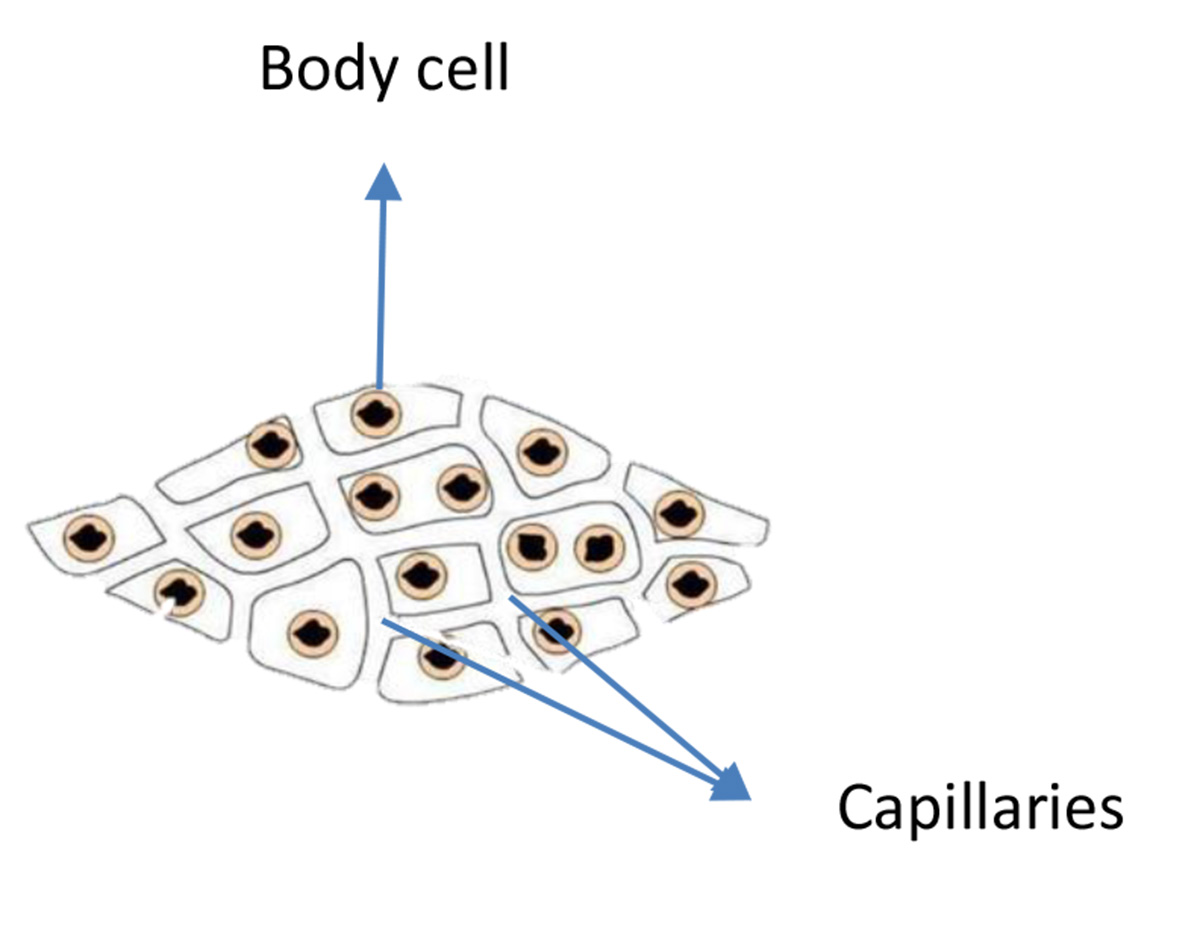

Figure 1. Shape of the capillary network inside the body.

Where r₀, r₁, and r₂ are the radii of the main and daughter channels, θ₁ and θ₂ are the bifurcation angles, and f₀, f₁, and f₂ are the flow in the main and daughter channels. Murray’s rule is applicable for circular channel sections; however, owing to prospective difficulties in fabrication, we used rectangular sections [ 9 ]. Therefore, so as to be able to apply Murray’s rule to rectangular sections, the following formula was used in our calculation and designs:

${\alpha }_n(1+{\alpha }_n)P_0\left({\alpha *}_n\right)={\left(\mathrm{2X}\right)}^n{\alpha }_n(1+{\alpha }_0)P_0{\alpha *}_0$ (8)

Where α_n and a*_n are the ratio of the depth d to the width w of channel n when the depth is smaller than the width.

The network has two major structural components: the supplying channels and the cells. The main channels are larger than the rest of the phantom sections that Murray’s rule has been used in order to design them. Table 1 shows the width of main and daughter channels in Calculations and in the microphantom. The three main channels are outside the capillary network. However, four other sub channels are within it. Each block consists of eight cells that replace the capillary network in the body. The results of Pawlik et al. [ 10 ] and Cassot et al. [ 11 ] were used to calculate the size of each microchannel (see Figure 2).

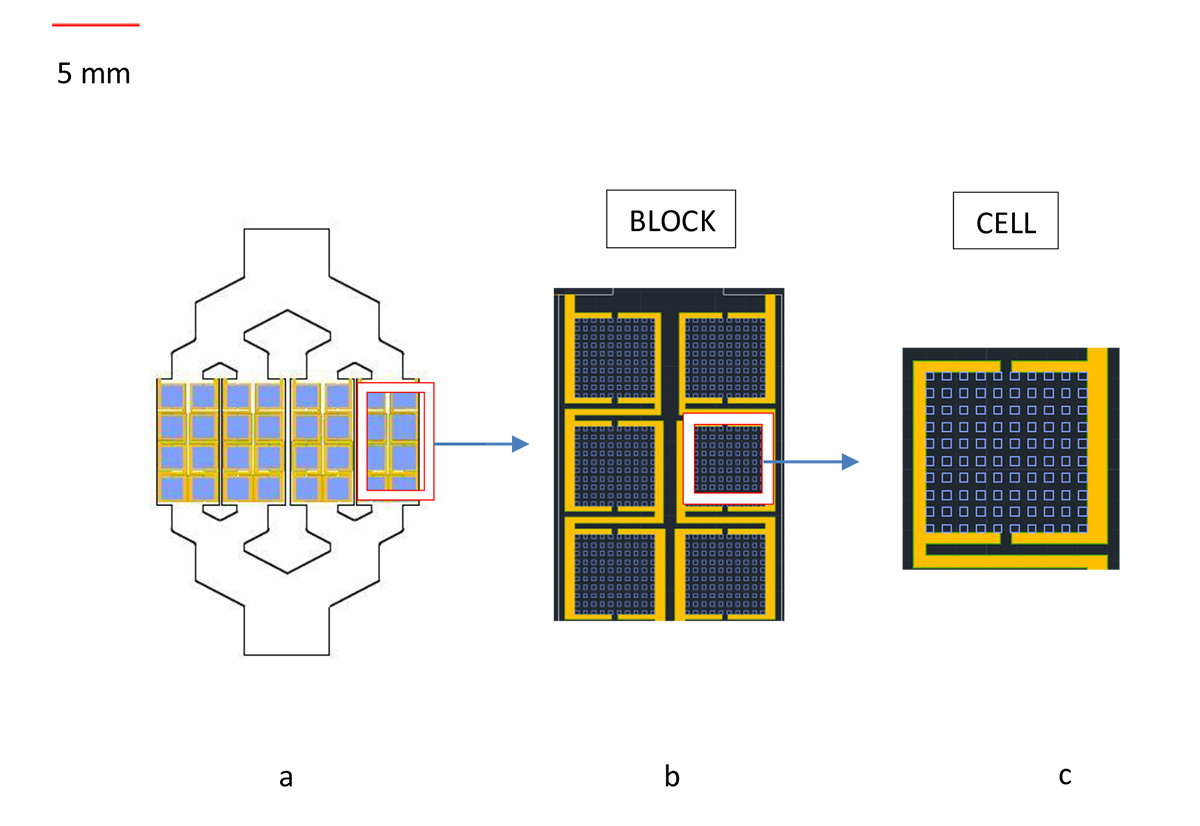

Figure 2. (a) Fabricated microphantom design and enlargement of the layout of the “blocks” and “cells”. The phantom is 15.506 mm wide. The microphantom consists of four blocks, each block also contains eight cells, and each cell has 100 features separated by channels, which are only 71 µm wide. Contrast agent passes through these channels.

According to the theories, different calculations of the capillary network were performed. Then, using the parameters obtained from the calculations, the capillary network was designed using AutoCAD software (M.49.0.0 AutoCAD 2016, Autodesk, Inc., San Rafael, CA, USA) (see Figure 2).

Microfabrication

We used a soft lithography technique to make the microphantom. This technique is called the soft lithography due to the use of a polymeric mold that gets soft and melting soon. To reproduce with soft lithography, you must first create a mold or seal. The most common way for it is to lithograph on a silicon surface (101.6 mm). This process creates an early pattern with prominent light-emitting designs that protrude from the silicon surface. Then, the polymeric fluid (SU-8, 2100 (MicroChem Corp., Boston, MA)) is poured into this highlight and turns into a soft, solid rubber. As a result, a polymeric manicure is made that has a perfect paradigm. The shape on the stamp differs by a few nm in the original pattern. Although the creation of an early pattern with outstanding elegant designs is costly, replicating the pattern on polymer seals is cheap and easy. Polymer seal (polydimethyl-siloxane (PDMS)) can be used to make nanostructures.

One of the soft lithographic methods is the printing method by the micrometric contact. Polymer sealing is impregnated with an effective solution, including organic molecules called thiol (in the role of ink). Then the stamp is strung across a thin film of gold (in the role of paper) that is placed on the glass, silicon or polymeric plates. The thiol reacts with the gold surface and creates a perfectly neat film that has the seamless design. Due to the diffusion of the ink after contacting with the surface, the precision of the single layer cannot be as large as the polymer seals. When used directly, a small 50 nm shape can be created (Figure 3).

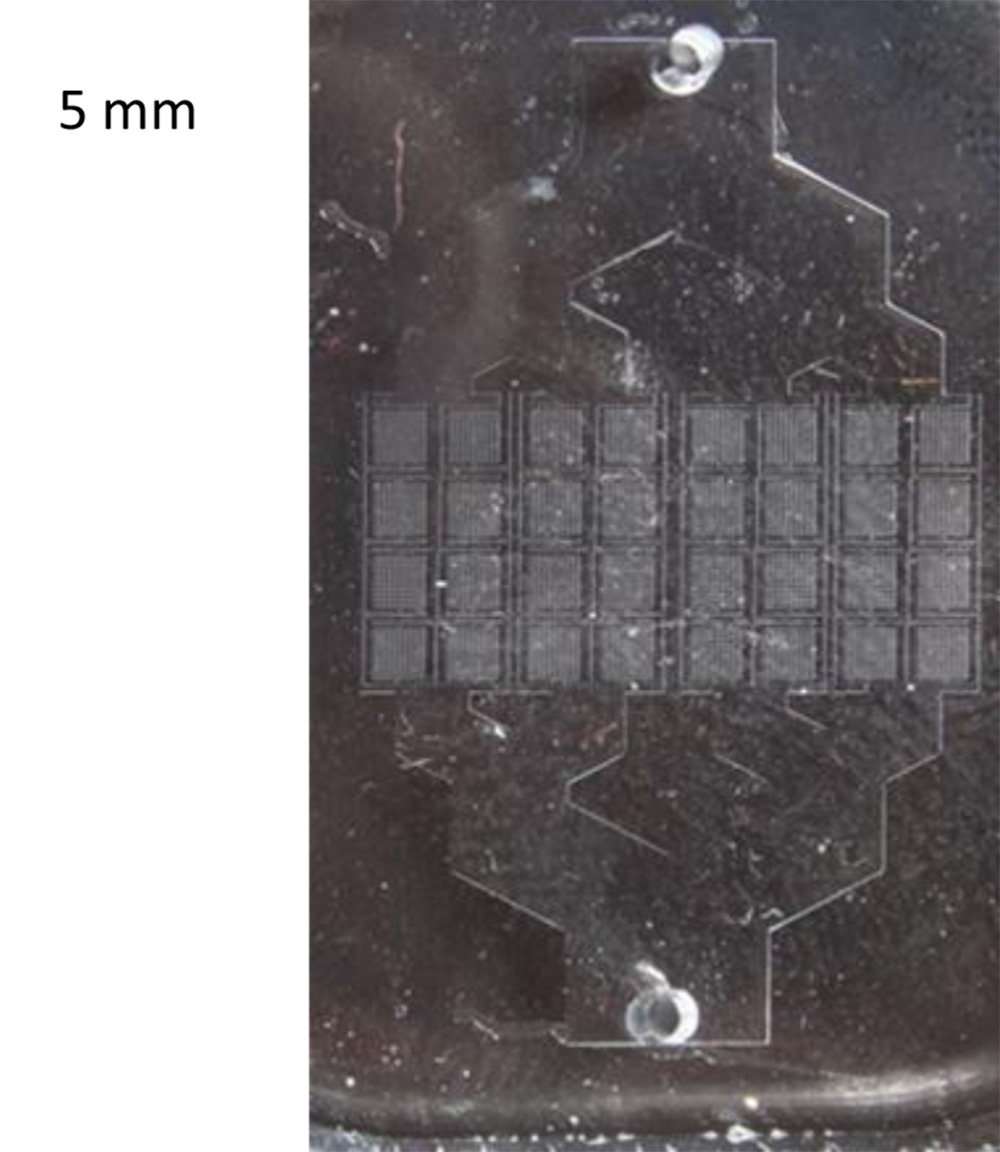

Figure 3. Microphantom fabricated using lithographic techniques. The two holes on the top and bottom of the phantom are for the injection (entrance) and exit of water or contrast agent.

Experimental setup

Distilled water was injected into the capillary network using a pump connected to the microphantom cavity via a connector. Subsequently, the microphantom was placed in the middle of the rat coil and 300 μl of distilled water was injected each time. The measurement methods used has been described here. A gradient spin-echo pulse sequence with the following parameters was used for the perfusion measurements in 3 T:

The echo time (TE) = 5 ms, the repetition time (TR) = 860 ms (1650 ms after two times averaging), field of view = 6 cm × 6 cm and the resolution was 32 × 32 pixels.

The amount of CBV within the phantom has a different definition, which is equal to the division of the desired microchannel volume into the total voxel volume in that area.

Contrast agent, injection rate was considered in injector 0.00216 – 0.023 mL/s. By calculating the volume of the capillary network and taking into account the density of its material, this injection rate of the contrast material causes the rate of movement of the contrast media within the tissue to be equal to 0.2-1.75 mL/100gr/s.

Simulation

The Navier Stokes equation was used to calculate the flow for the entire capillary network. The boundary conditions at the walls were considered zero in the software used to solve the equation. The capillary network designed using AutoCAD software was transferred to the COMSOL Multiphysics® software version 5.3 (COMSOL, Inc., Burlington, MA, USA) and simulated. From the simulation of the map, we obtained the capillary velocity map and used it to calculate the flow of the stream.

Results

Flow measurement

The MRI image of the phantom is shown in Figure 4.

Figure 4. (a) Fabricated microphantom design and enlargement of the layout of the “blocks” and “cells”. The phantom is 15.506 mm wide. The microphantom consists of four blocks, each block also contains eight cells, and each cell has 100 features separated by channels, which are only 71 µm wide. Contrast agent passes through these channels.

The CBV was calculated using Eq. (3) and is shown in Figure 5. With the value of CBV and knowing the value of MTT, we can obtain the value of CBF from Eq. (4).

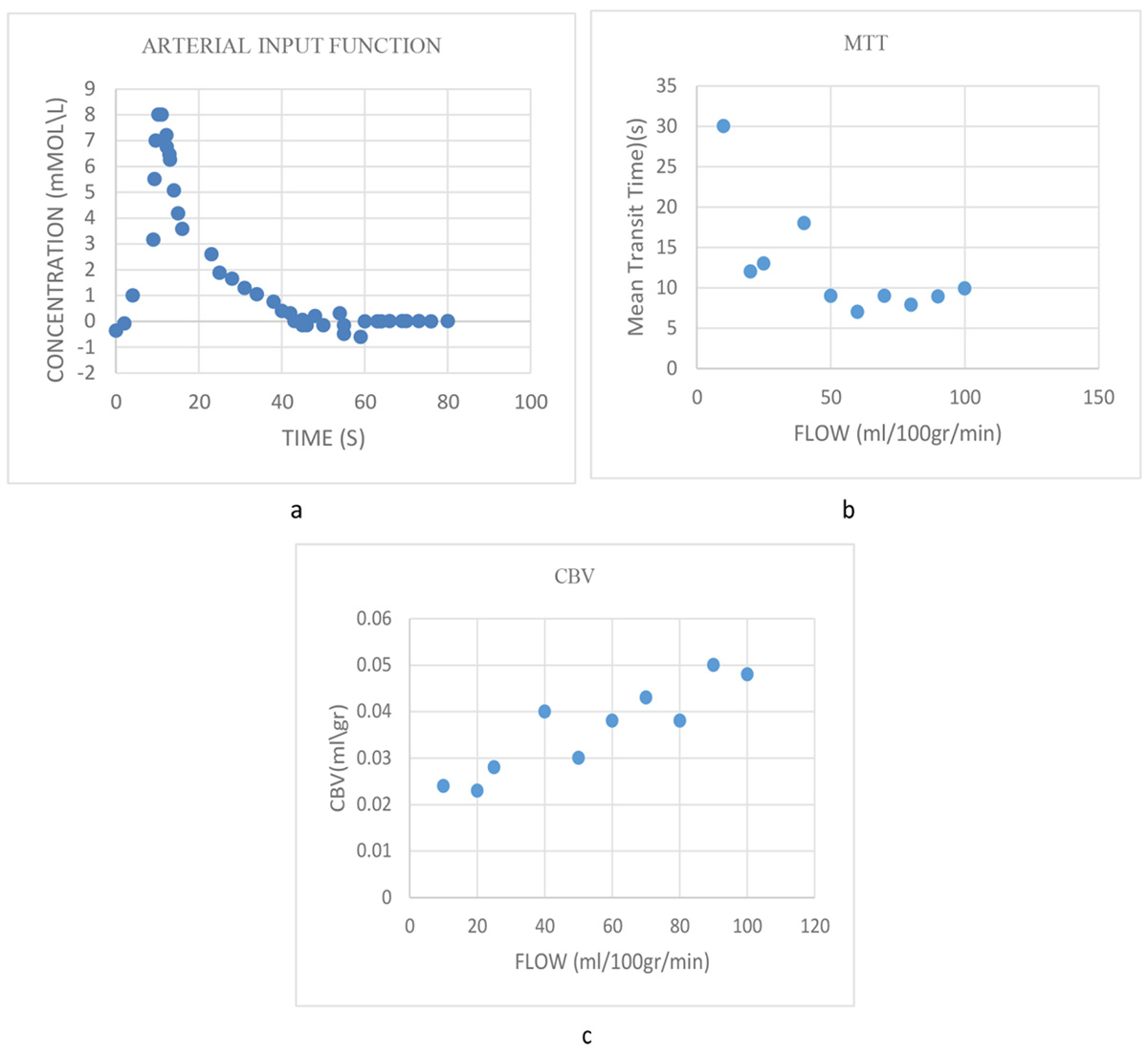

Figure 5. Values of AIF (a), CBV(b) and MTT(c) measured in the microphantom.

Flow Simulation

The velocity map of the capillary network, obtained using the COMSOL simulation software and presented in Figure 6, shows that the velocity in the capillary network was between 0.0001 and 0.0005 m/s.

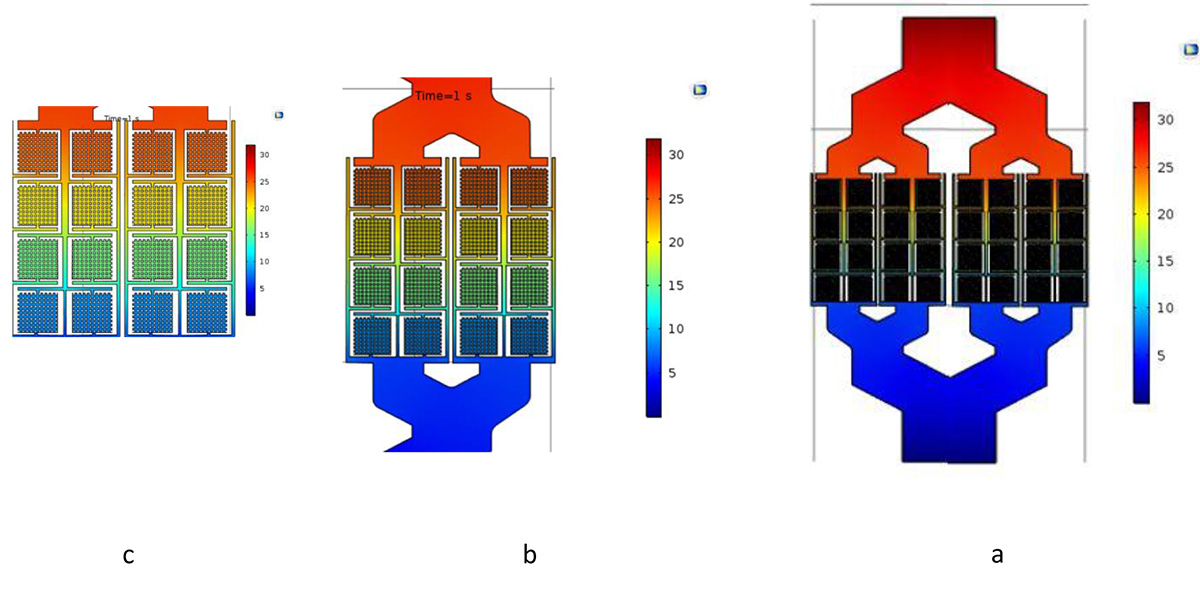

Figure 6. Velocity map for the capillary network obtained using COMSOL simulation software (version 5.3). The highest velocity was found in the capillary network.

The pressure map of the capillary network, also obtained using the COMSOL simulation software, is shown in Figure 7. The highest pressure (red) was on the interstitial side of the capillary network and decreased as the capillary mesh output was approached (blue). The pressure in the capillary network was between 5 and 25 mm/Hg.

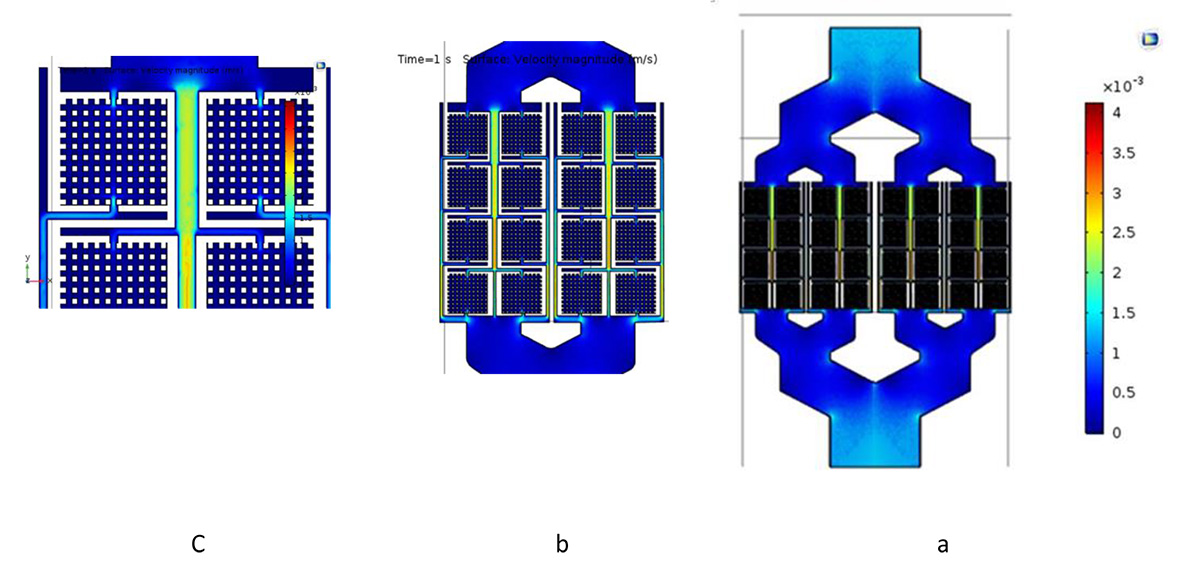

Figure 7. Pressure map of the capillary network obtained using COMSOL simulation software (version 5.3). The highest pressure (red) was on the interstitial side of the capillary network and decreased as the capillary mesh output was approached (blue).

Discussion

The simulated velocity in the capillary network was between 0.0001 and 0.0005 m/s (Figure 6), which agreed with the results of Ivanov et al. [ 12 ].

The simulated pressure in the capillary network was between 5 and 25 mm/Hg (Figure 7), which was consistent with the results of Shore et al [ 13 ].

These results reveal that our phantom can be used to create conditions similar to the blood flow in the body and to examine various models of perfusion imaging with an MRI scanner. Different parameters of perfusion imaging had the similar value to the inside of the body [ 14 ].

Conclusion

A phantom for perfusion measurement using MRI is presented. With this approach, any network geometry can be designed. The channels are in the range of actual capillaries. The phantom is MR compatible and flow rates, everywhere in the sample can be calculated precisely to be compared with estimated flow rates to investigate the accuracy of models. Purely PDMS phantoms are used for non-diffusible and diffusible tracers, respectively. According to the results, this phantom can be used to validate various methods in perfusion imaging such as singular value decomposition deconvolution.
