Introduction

Linear accelerator (linac) is a proper machine to accelerate particles and reach a certain high kinetic energy. Recently, linac, with high-energy electron or bremsstrahlung X-ray, has been implemented in clinics as one facility to improve cancer treatments. Bremsstrahlung X-ray produced by linac has a non-uniform distribution so that a filter called flattening filter (FF) is used to obtain a homogeneous energy fluence on a large radiation field in the patient, generally up to 40×40 cm² [ 1 ].

A modern linac has commonly implemented intensity modulated radiation therapy (IMRT) technique in order to achieve better precision and accuracy on the cancer treatment irradiation. IMRT has applied jaws and multi-leaf collimators (MLCs) to shape photon distribution referring to the target volume. MLC has been also used to modulate the energy fluence inside the tumor volume. This modulation builds a non-uniform dose volume at the planning target volume to support organs at risk nearby. As a result, the flat beam is not necessary on IMRT irradiation technique and the flattening filter can be removed. The linac without the flattening filter is called flattening filter free (FFF) [ 2 ].

Monte Carlo (MC) has been a standard method for calculation of particle transport and widely used to simulate high energy X-ray beams in linac with flattening filters. The FF linac head specification can be found on the Monte Carlo data package [ 3 ]. On the other hand, the flattening filter is replaced with other filter material to maintain the signal received by monitor chambers on FFF linac design [ 4 ]; however, the filter design is not provided by manufacturers. Thus, many researchers have been predicted and simulated design of the FFF linac head especially on the flattening filter replacement material [ 5-7 ]. Several studies have been conducted to measure and compare 6MV photon beam characteristics, both on Monte Carlo simulations and measurements. Differences in the characteristics of photon beams are usually evaluated as percentage depth dose (PDD), maximum depth, beam profile, penumbra, output factor (OF), energy spectrum, surface dose, beam quality, and the alignment of photon [ 6-12 ]. This research aims to design a proper filter for the best flattening filters using Monte Carlo simulations, especially for small field irradiation techniques. We evaluated the spectrum ratio of FF and FFF linac using 4 filter variations. Furthermore, comparison of beam air profile for field sizes, including 1 × 1, 2 × 2, 3 × 3, and 4 × 4 cm² was performed using Monte Carlo simulation between FF and FFF linac.

Material and Methods

This experimental and simulation studies were carried out using linac 6MV photon beam of Varian Trilogy, which was modified to operate on FFF photon beam at Pasar Minggu Regional General Hospital. The measurement was performed using a water tank phantom and ionization chamber detector type CC13. Besides, we employed EGSnrc user code to simulate the particles transport that implemented Monte Carlo method.

Measurement and TPS Calculation

We used Blue Phantom2 (iBa dosimetry), which had a field 48 × 48 × 48 cm³ in volume to perform our measurement. A pair of ionization chamber detectors named Compact Chamber 13 (CC13) with an active volume of 0.13 cc was set for relative dose measurement coupled to MyQAccept application software in order to control the movement of the detector. The detector was remotely moved by continuous scan protocol with a constant speed of 1.5 mm/s. The phantom was irradiated with field size of 10 × 10 cm² on the surface of the phantom and the source to surface distance (SSD) of 100 cm. We focused on the characteristics of PDD and profile at 10 cm depth of the water phantom.

Eclipse v.13, which has an analytical anisotropic algorithm (AAA), was used to calculate the interest beam characteristics as the calculation of treatment planning system (TPS). The beam data commissioning for this calculation was imported from the several measurement results using the same ionization detectors. Furthermore, the photon spectrum of FFF linac 6MV was extracted from TPS beam for the comparison purpose to the Monte Carlo simulation. The spectrum of TPS photon beam was set with no material filter.

Monte Carlo simulation parameters

The head of FF linac design obtained from Varian Monte Carlo data package contained 8 geometry structures, including target, primary collimator, vacuum glass, flattening filter, monitor chamber, mirror, jaws, and air until SSD 100 cm. Whereas, FFF linac design was constructed from the same design as FF LINAC with a modification at flattening filter material and geometry. We used 4 replacement filters, such as FakeBeam design with 0.8 mm of brass, 2 mm of copper, and without filter (literally no filter attached) [ 4-7 ].

Since the real geometry and material were designed for FF linac, we did trial and error to obtain the electron source kinetic energy and full width half-maximum (FWHM) using the FF linac design and then implemented the electron source to all FFF linac design. This was performed for the kinetic energy and FWHM from 5.8 to 7.2 MeV and 0.10 to 0.20 cm, respectively. Particle history was 10⁸ particles with photon cut-off energy (PCUT) of 0.01 MeV and electron cut-off energy (ECUT) of 0.70 MeV included its rest mass. We used direct bremsstrahlung split (DBS) method with a radius of 10 cm to increase the efficiency of simulation time and the particle direction to Z positive or straightforward to the head linac. Phase space files were taken at the end of the air material which meant 100 cm of SSD to examine energy spectrum and fluence laterally for field sizes, including 1×1, 2×2, 3×3 and 4×4 cm². Moreover, phase space file of 10 × 10 cm² was practically used as a particle source on a water phantom using the DOSXYZnrc user code to evaluate the percentage depth dose (PDD) and the beam profile at a depth of 10 cm. The DOSXYZnrc result of FFF linac was then compared to the MC FF linac and the measurement of FFF linac. Besides, we used BEAMDP user code in which one of the add-ons in EGSnrc was to obtain the spectrum and the beam air profile for small field evaluation. The water phantom of DOSXYZnrc was built by a voxel size of 0.25×0.25×0.25 cm³, whereas the beam air profile was generated by 0.025 cm spatial resolution laterally.

Dose evaluation between FF and FFF linac was performed by comparing a relative dose at specific points called local dose comparison following Equation (1):

$\mathrm{\%D}=\frac{(D_s-D_p)}{D_s}\times \mathrm{100\%}$ (1)

Where %D is local dose comparison, D_s and D_p are relative doses obtained by simulation and measurement, respectively.

Results

Initial electron kinetic energy and FWHM, which were 7.0 MeV and 0.2 cm, respectively, for FF linac led into the best match for local dose comparison between MC and measurement on PDD and profile of 10×10 cm² photon beam. Furthermore, these parameters were used for the electron source of FFF linac design.

FF and FFF linac energy spectrum

The ratio of FF and FFF linac photon spectrum with various filters using the Monte Carlo simulation are displayed in Figure 1. The energy ratio in Figure 1 is just displayed until 1 MeV because the energy, thereafter, has a ratio by a relatively constant value. The highest ratio was shown without filter design, while the ratio of 2 mm copper and FakeBeam showed better results. The results show that 2 mm copper filter has a considerable thickness with the maximum ratio of the spectrum between FF and FFF linac of 3.22.

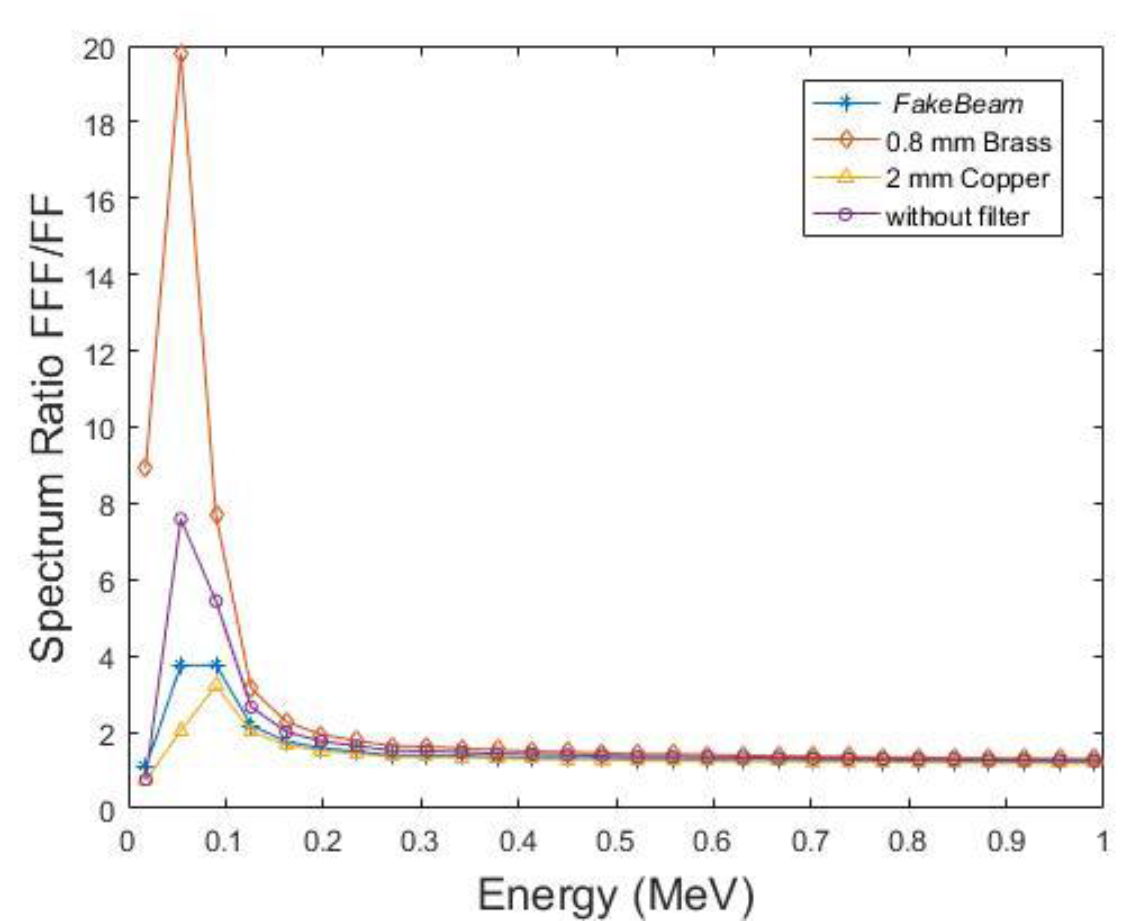

Figure 1. Spectrum ratio of flattening filter (FF) and flattening filter free (FFF) photon beams for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter. The energy was just displayed until 1 MeV because the following energy ratio was 1.

Figure 2 shows the comparison of photon energy spectrum for FFF linac between MC and TPS beam based on percent normalized at 0.375 MeV for all filters. It obviously shows that spectrum of 2 mm copper filter and FakeBeam intercepted the zero line ratio at some points, whereas 0.8 mm brass filter and without filter were far from spectrum calculated by TPS.

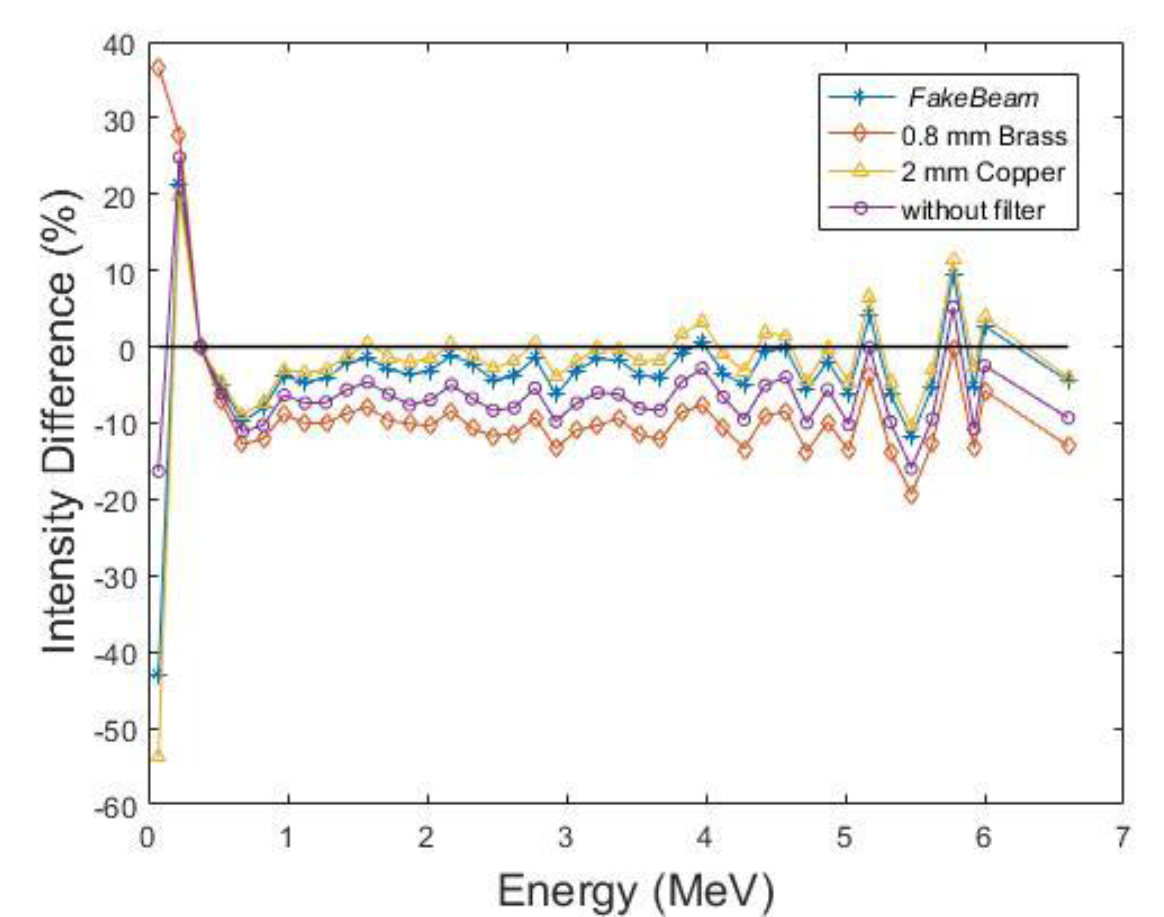

Figure 2. Intensity difference of photon energy spectrum 6MV flattening filter (FF) and flattening filter free (FFF) beam for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter.

PDD and profile at 10×10 cm2

The comparison of PDD and profile on the radiation field, which is10×10 cm², between MC simulation and measurements using ionization chamber detector was performed. Evaluation of PDD was carried out along with a center of axis (CAX) from the water phantom surface until 30 cm depth. The results of the local dose comparison between MC FF and FFF linac simulation can be seen in Figure 3. The data shows that the lowest dose difference between FF and FFF linac was at 0.8 mm brass filter followed by 2 mm copper, FakeBeam, and without filter. The average deviations of the PDDs excluding the build-up area were -4.27 ± 1.97%, -3.73 ± 1.74%, -4.28 ± 1.88%, and -4.80 ± 1.8% for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter, respectively.

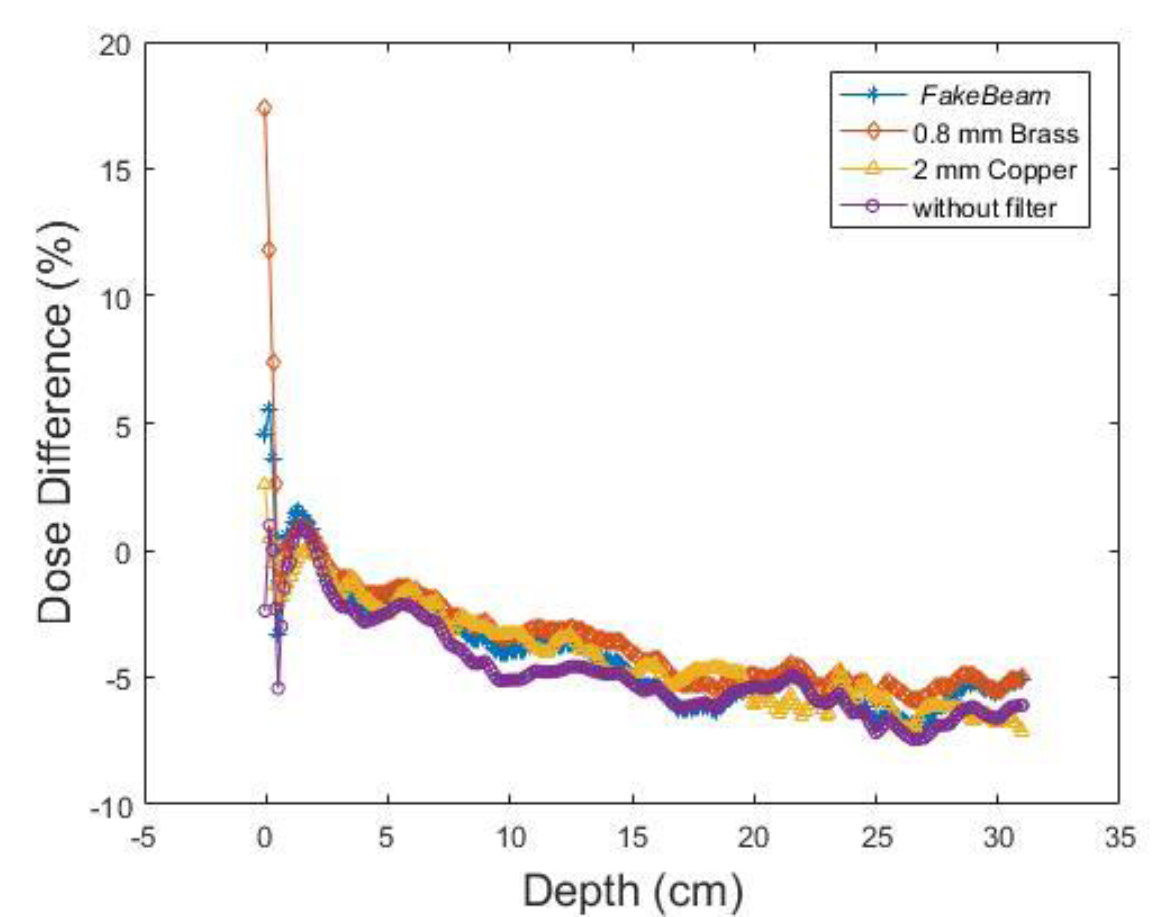

Figure 3. Difference of percentage depth dose between simulated 6MV flattening filter (FF) and flattening filter free (FFF) photon beams for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter.

On the order hand, the average dose difference of the PDD including the build-up region of MC simulation compared to measurement for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter were 6.20 ± 5.12%; 9.72 ± 7.55%; 3.63 ± 2.69%; and 2.78 ± 3.98%, respectively. However, the difference of PDDs tends to positively increase with a deeper point of interest between MC and measurement of FFF linac as shown in Figure 4.

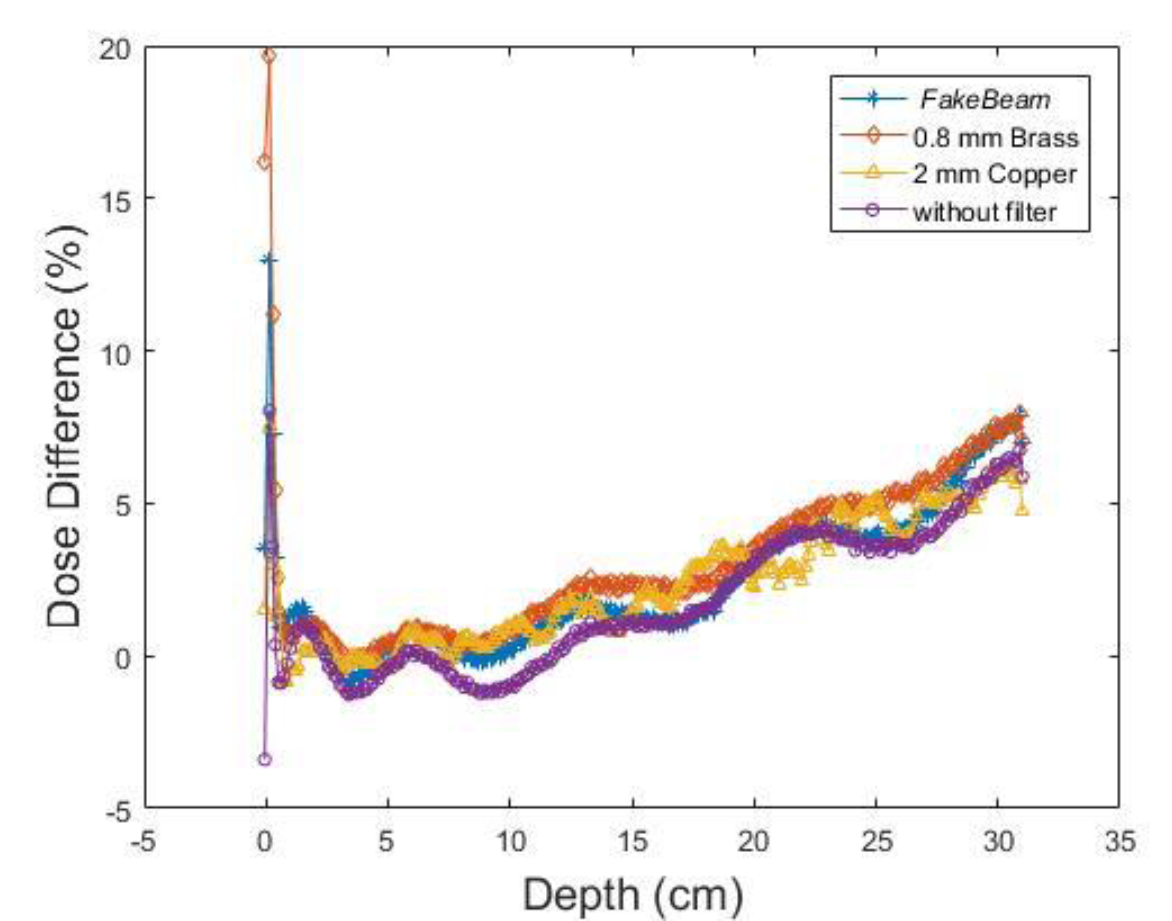

Figure 4. Percentage of depth dose difference between simulated 6MV flattening filter free (FFF) and measured FFF photon beams for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter.

Furthermore, we evaluated the beam profile of FFF linac which considered the non-flat beam for the replacement of a flattening filter. Local dose difference of MC simulation between FF and FFF linac can be seen in Figure 5. The results described the softened of the beam profile of FFF linac in which the dose difference was 0 at CAX and tended to 10% at the edge of the radiation field size. Moreover, the dose difference at off-axis after 7 cm from CAX shows that negative value, around 10%, led into the lower dose for FFF than FF. Visually, there was no significant dose difference of lateral beam profile from both of variation of filters. The averages of dose differences, which were quantitatively calculated along 10 cm, were -4.13 ± 2.90%, -4.49 ± 3.67%, -5.55 ± 3.91%, and -5.24 ± 3.73% for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter, respectively.

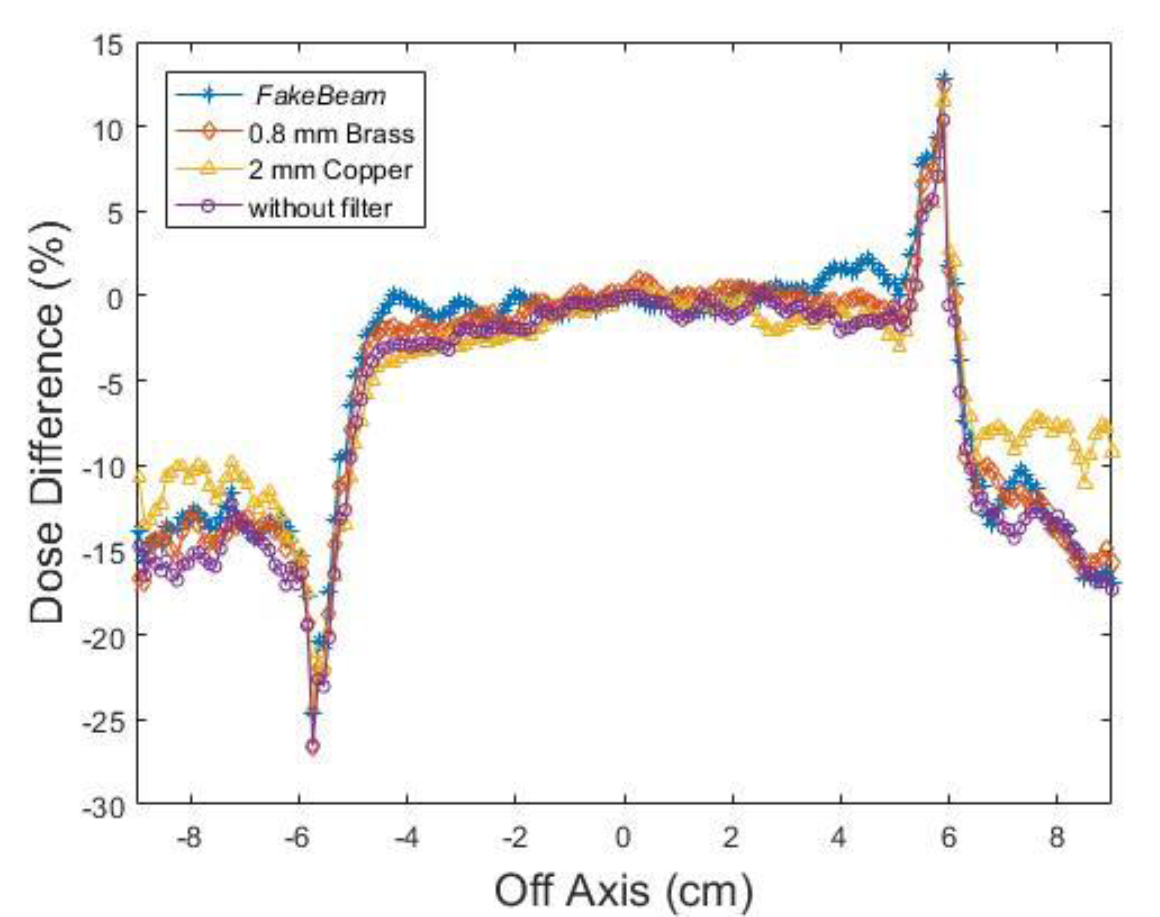

Figure 5. Percentage of dose difference of cross lane off axis between simulated 6MV flattening filter (FF) and flattening filter free (FFF) photon beams for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter.

On the order hand, the dose difference of FFF linac between MC simulation and measurement can be seen in Figure 6. We achieved that the averages of dose difference for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter were -0.35 ± 1.21%, -0.76 ± 1.32%, -1.85 ± 1.75%, and -1.54 ± 1.49%, respectively.

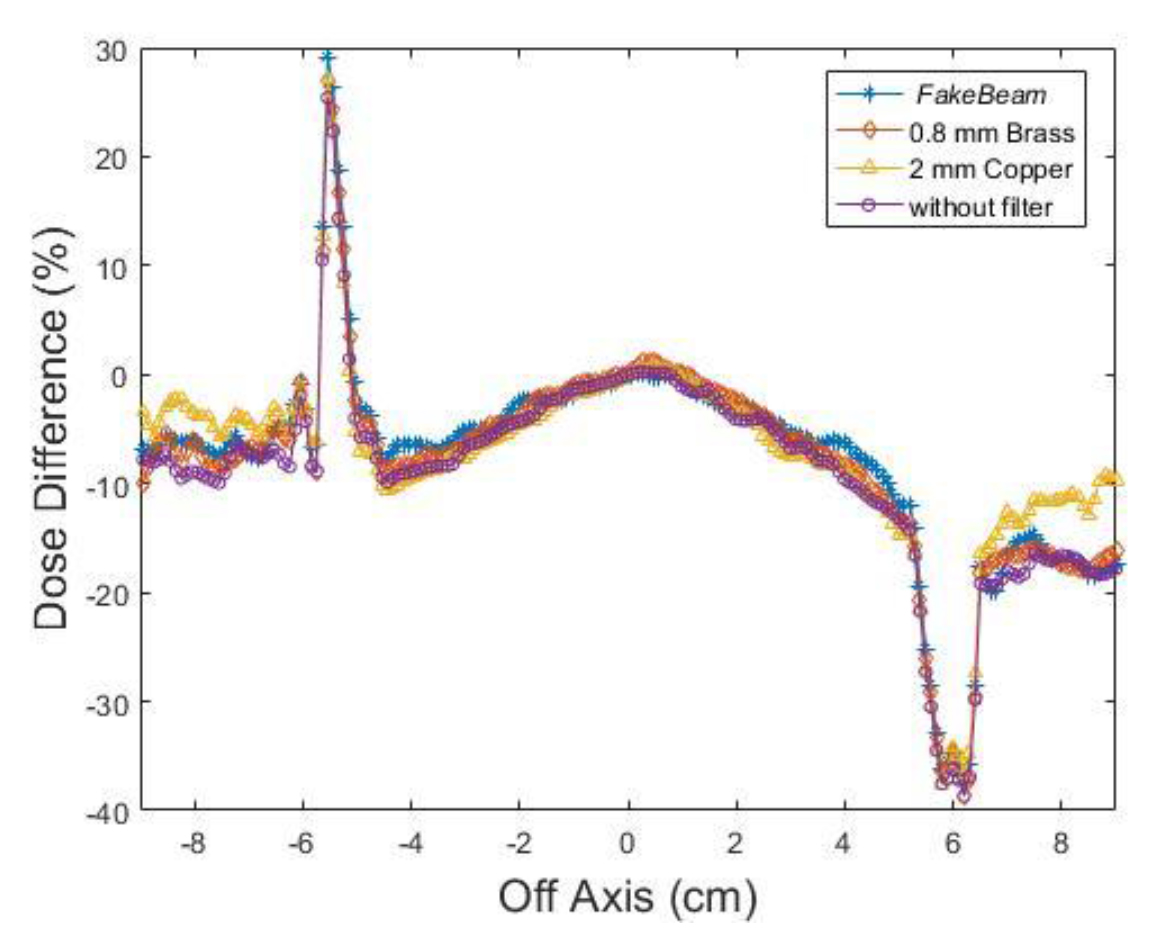

Figure 6. Percentage of dose difference of cross lane off axis between simulated 6MV flattening filter (FF) and flattening filter free (FFF) photon beams for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter.

Beam profile in small field sizes

We evaluated the outcome of MC energy fluence of field sizes, including 1×1, 2×2, 3×3, and 4×4 cm² between FF and FFF linac. The analysis of beam air profile was conducted to obtain the characteristics, which were different from the small field on our various filters to flattening filter as shown in Figure 7. It shows that all of the various FFF filters indicated the same relative dose. The deviation of air beam profile affected by the flattening filter was visually seen on the periphery of the beam at 3×3 and 4×4 cm². Meanwhile, field sizes such as 1×1, and 2×2 cm² between FF and FFF photon beams were relatively identical both of visual and quantity along with the irradiation beam size. These results show that lateral dose from the center axis up to the beam edge of FF and FFF was similar for the field size of 2×2 cm² or smaller. However, there was a significant dose difference at the out of beam field size as seen in Figure 8. According to the results, the variation of FFF filter design did not have any impact on relative dose profile in the small field area.

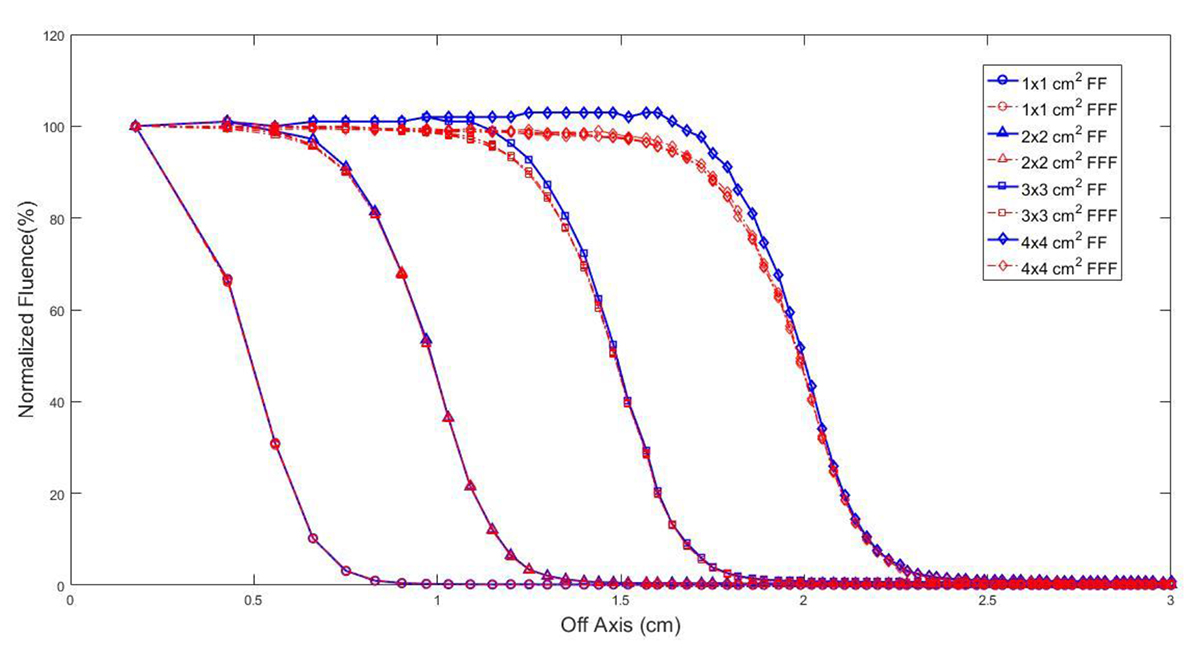

Figure 7. Fluence percentage of air profile for flattening filter (FF) and flattening filter free (FFF) linac for small field sizes

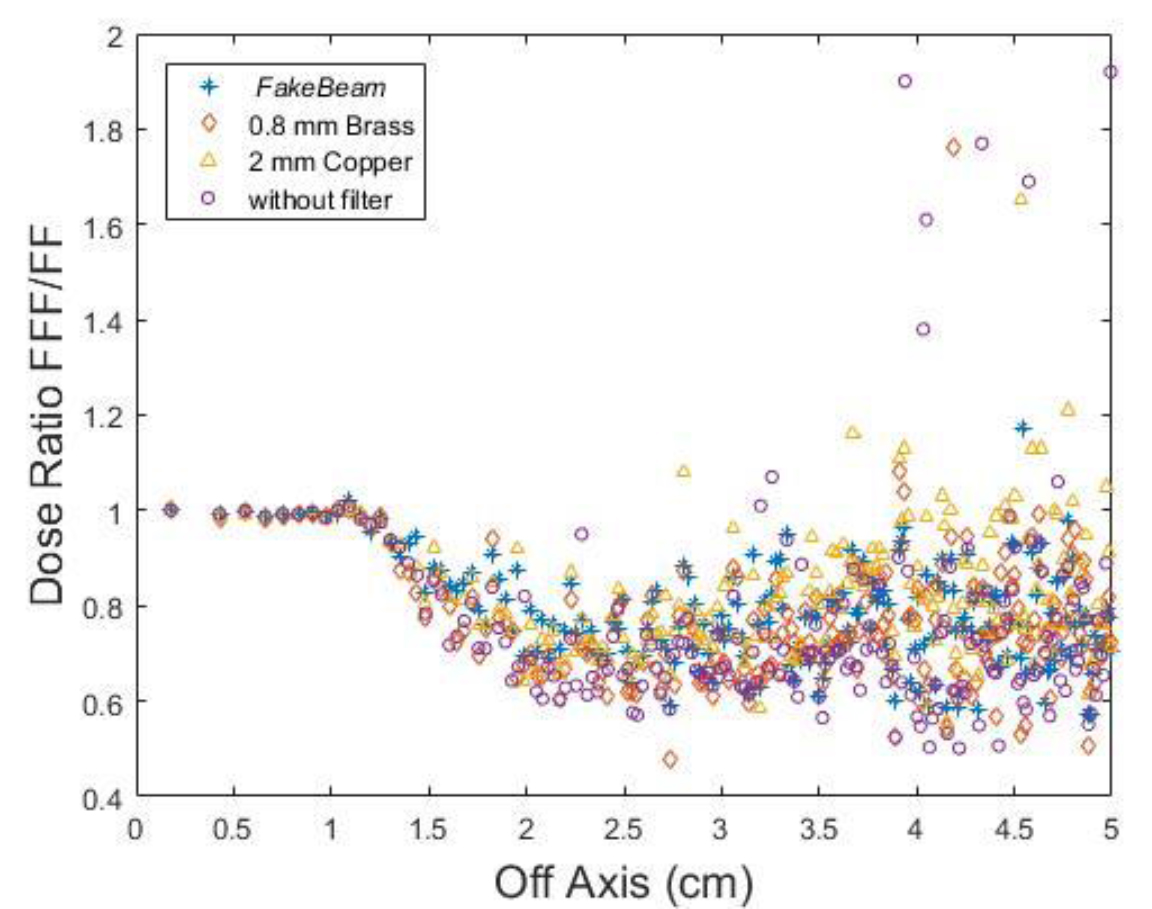

Figure 8. Dose ratio of flattening filter free (FFF) by flattening filter (FF) photon beam at 2×2 cm² field sizes for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter

Discussion

This study investigated the effect of flattening filter on the dose distribution of photon particles using Monte Carlo method. The simulation was conducted based on five difference structures and materials of flattening filter, including regular 6MV linac, FakeBeam, 0.8 mm brass, 2 mm copper, and without filter. Regular 6MV linac flattening filter is considered to be a standard of FF linac design in which the Monte Carlo simulation was calibrated to the measurement on this filter design. Another filter was for FFF linac because the blueprint of FFF linac is a confidential file. In this study, we evaluated the purposed filters based on the Monte Carlo simulation for photon spectrum, PDD and profile of filed sizes 10×10 cm² and smaller for photon beams.

Energy spectrum output of 6MV FF and FFF linac was different due to the interaction of photon and other particle contaminants such as electron and positron with the material and flattening filter. Different ratio was computed between FF and FFF linac, which seemed high on the low energy spectrum. This effect was found because the absence of beam hardening in flattening filter on the FFF linac head design. On the beam of TPS eclipse-based, we extracted the spectrum component and compared the energy spectrum of FFF linac on MC simulation and TPS. The average of spectrum FFF was different between MC simulation and TPS i.e. -3.13 ± 3.61%, -10.35 ± 3.12%, -1.52 ± 3.82%, and -6.92 ± 3.41% for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter, respectively. The best photon spectrum matching to TPS was copper filter of 2 mm thickness. This showed that although the thickness of material filter was great enough for a beam hardening, which was as much as FF linac, adding 2 mm thickness into copper filter in flattening filter did not change the characteristic of energy spectrum of FFF linac compared to TPS. Moreover, there was a significant percentage of spectrum difference between MC simulation and TPS at low energy spectrum. We found that the photon spectrum’s peak of MC was shifted to lower energy than TPS. The nominal spectrum shift of MC simulation compared to TPS calculation for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter were 0.105, 0.105, 0.069, and 0.105 MeV, respectively.

In a standard field, we did a simulation on 10×10 cm² for PDD and profile at 10 cm depth of water. The trend of PDD difference between FF and FFF linac gradually decreased at great depth. Moreover, the PDD difference between FFF simulation and measurement led to increase at greater depth. It seemed that the initial electron kinetic energy of the MC simulation of FFF linac had to reach an independent relative dose difference in depth for these filters. The better match of MC PDD to measurement in this study was without filter followed by 2 mm copper, FakeBeam, and 0.8 mm brass. Besides, we evaluated the dose differences in profile of 10×10 cm² at 10 cm depth. An interesting area was found around 5 to 7 cm from the CAX. In this area, the dose difference between FF and FFF was high. This phenomenon was indicated by beam horns on FF linac; however, the beam horn was not recorded at all FFF linac designs. Furthermore, the FWHM between FFF and FF beam profile at 10 cm depth was also found different. We investigated that there was a 2 mm discrepancy on penumbra region between FF and FFF photon beam profile. Based on the IAEA TRS 430 [ 13 ], the evaluation of beam profile below the half maximum could be conducted by dose difference or deviation of distance of two profiles which had tolerance of 10 % and 2 mm, respectively. Therefore, the sharp area of dose difference was agreed according to the deviation of distance. However, the evaluation of beam umbra i.e. 20 % of maximum beam and lower or outside beam edge only could be carried out based on dose difference parameter with the tolerance maximum of 3%. The dose differences computed between FF and FFF linac on this area were about -10 % meaning that FFF photon beam had lower dose than FF linac. On the other hand, this result shows that FFF beam was superior in order to reduce dose received at the surrounding organ than FF. Based on the result, FakeBeam design had the better characteristics representation of linac FFF beam profile because the FakeBeam geometry has a special shape rather than other filter design, whereas the largest discrepancy was found at 2 mm copper filter. As a result, the beam hardening effect was highly produced at off-axis of 2 mm copper filter.

Moreover, we checked the profile on the small field sizes, including 1×1 to 4×4 cm² on photon air profile. The dose profile of FFF actually had the same trend and slight difference with each other. It seems that characteristics of small field were not dependent on structure or material filter. However, if the normalization was not implemented, there would be a different fluence ratio of 1.07, 1.57, 1.45, and 1.65 for FakeBeam, 0.8 mm brass, 2 mm copper, and without filter to FF linac because of the different interaction of particles with filter materials. On the other hand, the differences of photon profile in air between FF and FFF linac showed the differences on beam fringe from 90% until 50% of maximum dose, especially at quite large field size. Quantitatively, the percentage of discrepancies between all various FFF filters and FF of this area were 3.24 ± 0.45 and 6.79 ± 1.01% for 3×3, and 4×4 cm², respectively. It indicates that the softened beam as an impact of removing flattening filter was found at larger field size of 2×2 cm². Furthermore, the dose reduction of the FFF beam was also made at small field sizes as shown in Figure 8. It shows that the dose of FFF photon beam decreased by 0.6 smaller than FF beam at out of field which spared the dose of surround the target volume. According to the dose distribution outside of field, the FakeBeam design had a constant distribution rather than all filters.

Conclusion

In this study, the best corresponding filter that matches the measurement of FFF linac was FakeBeam design filter. FakeBeam filter was superior in beam lateral of 10×10 cm² and consistent with PDD beam evaluation. In the small field irradiation, various filters did not differ from each other for beam air profile. The positive local dose difference between FF and FFF indicated that it is necessary to modify the initial energy kinetic to simulate MC head linac of FFF from FF linac design. FFF linac beam had a better dose sparing for organs at risk than FF; however, a comprehensive study for out of field effect of FFF linac is needed.
