Introduction

Many radionuclides are used in nuclear medicine with the aim of diagnosis and treatment of diseases [ 1 ]. The common radionuclides, which are used for diagnosis of diseases in nuclear medicine, are gamma emitters [ 2 ]. Radionuclides are significant sources of radiation and increase the risk of carcinogenic effects to personnel, patients and public [ 3 ]. In nuclear medicine, the main concern is safety of personnel against radiation [ 4 ]. It is a fact that ionizing radiation may cause genetic and carcinogenic effects [ 5 ]. There is much concern regarding to radiation protection of personnel, who are exposed to high energy gamma-rays emitted from radionuclides used in nuclear medicine.

The most common radionuclides, which are applied in nuclear medicine, are ⁹⁹Tc^m and ¹³¹I utilized for diagnostic and treatment of diseases [ 2 , 6 ]. ¹³¹I emits both beta and gamma-rays. Beta-rays, which are applied for treatment purposes, are entirely absorbed by the patient’s body [ 7 ]. Therefore, radiation protection is considered for gamma rays emitted by ¹³¹I.

¹³¹I source emits spectrum of gamma-rays as: 364 keV (82%), 637 keV (7%), 284 keV (6%), 80 keV (3%) and 723 keV (2%) [ 7 ]. In addition, ⁹⁹Tc^m emits monoenergetic gamma photons with 140 keV energy [ 8 ]. For years, shields, which are made of lead, were applied for radiation protection in radiation departments of hospitals [ 7 ]. Additionally, implementation of as low as reasonably achievable (ALARA) principle is needed to minimize the radiation to personnel and public in all of radiation departments [ 9 ].

International Commission on Radiological Protection (ICRP) recommends that application of lead apron is useful against ⁹⁹Tc^m when personnel are exposed to high dose radiation, but it should not be used for protection against ¹³¹I because it does not provide a reasonable protection in this case [ 10 ].

A few studies have been performed to evaluate various shields in nuclear medicine. In fact, this study aims to determine the optimum shields against ⁹⁹Tc^m and ¹³¹I sources and an optimum thickness of lead shielding is suggested against ¹³¹I, as well.

Material and Methods

This an experimental study consists of two steps:

- The first step is evaluation of the efficiency of shields against ⁹⁹Tc^m source by dosimetric method and lead partition as the only shield used against ¹³¹I.

- The second step is finding an optimum thickness of lead against ¹³¹I source by simulation method.

First step: evaluation of the efficiency of shields against 99Tcm and 131I sources

In the dosimetric set-up, a calibrated model of GraetzX5C Plus dosimeter (made in Germany by Graetz Strahlungsme βtechnik Company) with reading range between 0.01-1000 µSv/h, was used to measure the exposure rate passing through the evaluated shields in nuclear medicine. The dosimeter was calibrated by Secondary Standards Dosimetry Laboratory (SSDL) Karaj, Iran dependent on Atomic Energy Organization of Iran. In the dosimetric set-up, a plastic syringe containing 1 mCi of ⁹⁹Tc^m and/or ¹³¹I hanging from a stand was considered as the source. A dose calibrator (Model of Initial Calibrated Blank (ICB) made in the United States by Alfa Aesar Company) was applied to measure the activities of the sources.

The applied shields were lead aprons with lead equivalent thicknesses of 0.25 and 0.5 mm, a 0.5 mm thickness lead thyroid shield, a 3 mm thickness lead partition and a 2 mm thickness tungsten syringe shield and a syringe holder shield. The syringe holder shield was made up of lead shielding encased in steel with thickness of lead shielding 0.5 mm lead [ 11 ].

The dosimeter was placed at distance of 50 cm from the source in the horizontal direction and the reading of the dosimeter was recorded. Then each of the mentioned shields was hung from a stand while the dosimeter was placed behind the shields at distance of 50 cm from the source (Figure 1). The dosimeter reading was recorded again. In each case, the dosimetry was read three times in duration of 30 seconds in the nuclear medicine department. This time was selected since the personnel normally are exposed about 120 seconds from ⁹⁹Tc^m and/or ¹³¹I source at distance of 50 cm from the source. The average of the readings was considered as the reading of the dosimeter. The efficiency was calculated through the following equation:

Efficiency (%) = 100 × (I₀-I/I₀) (1)

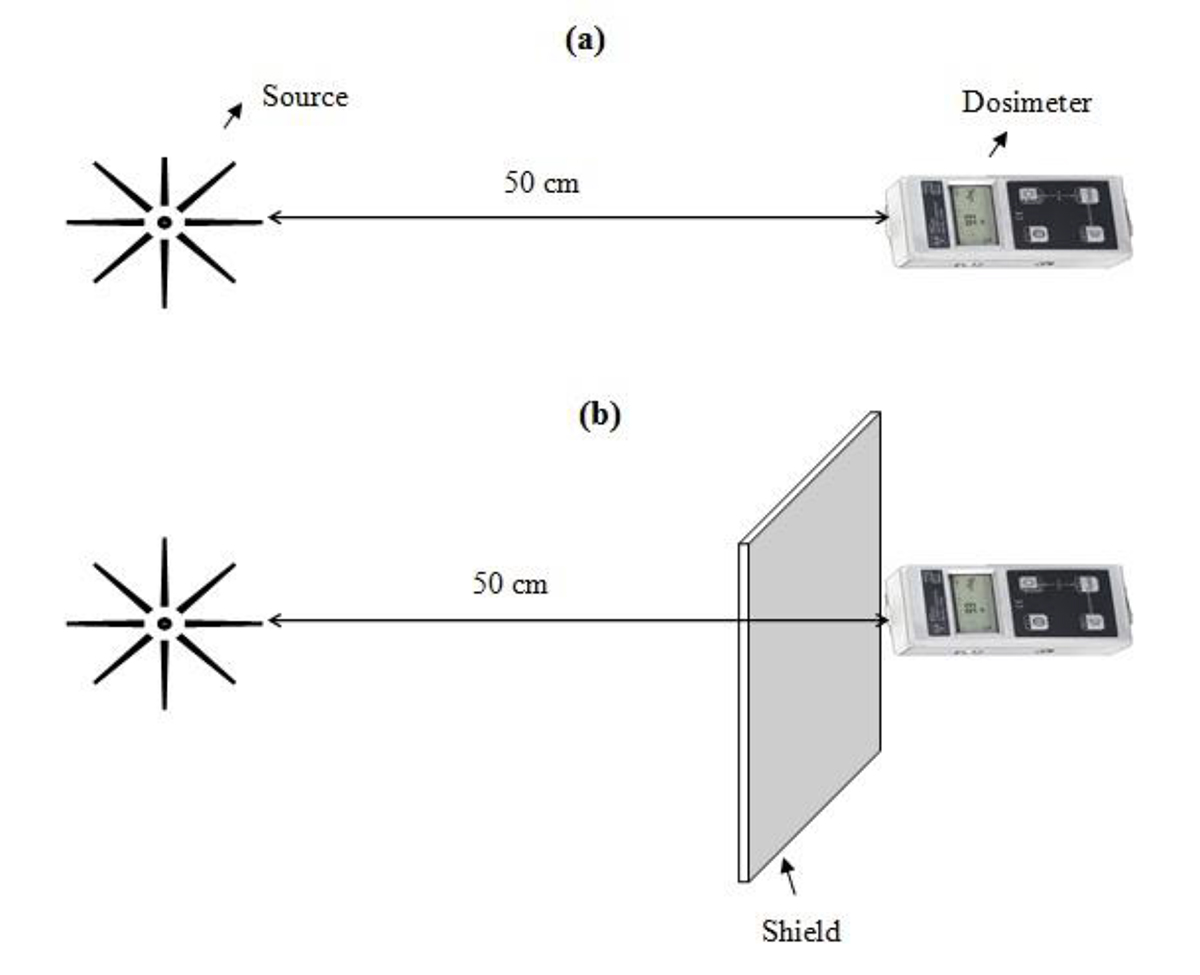

Figure 1. The set-up used in the dosimetric method; without shield (a); and with shield (b). This figure is schematic and not based on a real scale.

The difference in this case is that herein I and I₀ are dosimeter readings per unit time (µSv/h) with and without shielding, respectively. The measured dose rates were less than the legal dose (20 mSv/yr) [ 12 ] for the radiation workers.

Lead partition is the only applied shield in nuclear medicine against high-energy gamma rays emitted by ¹³¹I (82%, 364 keV). Therefore, in this study, the efficiency of lead partition was evaluated against ¹³¹I. After dosimetry for the shields, the simulations were conducted to find an optimum thickness of lead in order to protect against ¹³¹I.

Second step: Simulation to find an optimum thickness of lead against 131I source

In this study, simulation was used to find an optimum thickness of lead against ¹³¹I source. In the simulations, MCNPX Monte Carlo code (version 2.4.0) was used to simulate the interactions of photons with the lead shield. A server computer with 7-core 1.7 GHz Intel mobile processor and 16.0 GB Random Access Memory (RAM) carried out the simulations.

In this set-up of simulation, a spherical ¹³¹I source was simulated with 0.2 mm radius, emitting gamma-rays spectrum of: 364 keV (82%), 637 keV (7%), 284 keV (6%), 80 keV (3%) and 723 keV (2%) [ 7 ]. A cylindrical dosimeter containing air with 1 cm radius and 1 cm height was also simulated at distance of 50 cm from the ¹³¹I source. An air environment was considered surrounding the dosimeter and the source (Figure 2). In the program of the simulation, a sheet of lead and/ or air with dimensions of 50 cm × 30 cm and thickness of 0.1 cm was also simulated. The dimensions were determined optional (Figure 2).

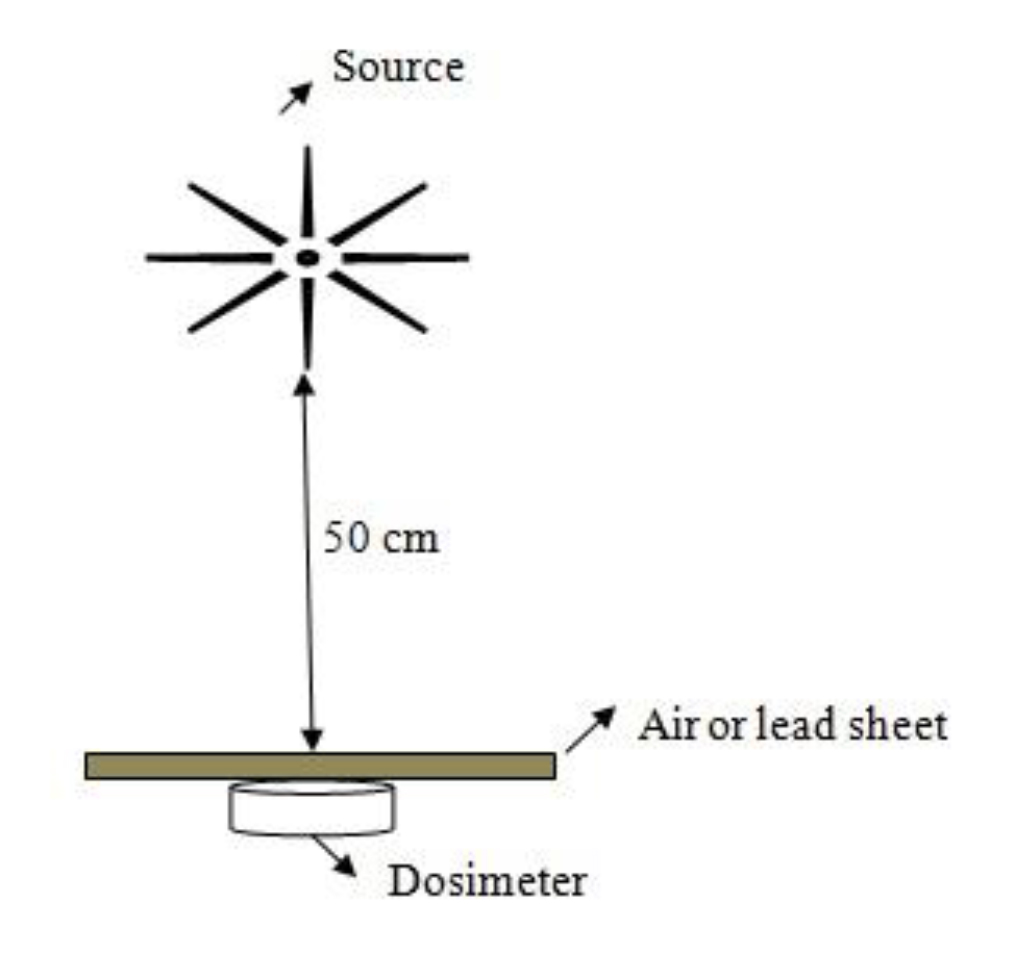

Figure 2. The set-up used in the simulation method. This figure is schematic and not based on a real scale.

F6 tally was used to calculate the energy deposited per unit mass (MeV/g) inside the dosimeter. In each of the simulations, the number of transported photons was 1.4 × 10⁸. The energy cut-off for photons was defined to be 10 keV.

Initially, a lead sheet was simulated with thickness of 0.1 cm. Then its efficiency was calculated through the equation (1). In the next simulation, the thickness of the lead sheet then increased with 0.1 cm intervals. This method was followed to obtain the highest efficiency for the lead sheet against gamma-rays spectrum emitted by the ¹³¹I source. Based on the MCNPX manual, the acceptable criterion for a simulation is that the uncertainty of the calculation is less than 5.0% [ 13 ]. In each simulation, type a uncertainty was between 1-4%.

Results

Figure 3 shows the efficiencies of the used shields against ⁹⁹Tc^m source in nuclear medicine. The minimum and maximum efficiencies were obtained from the lead apron with lead equivalent thickness of 0.25 mm and the syringe holder shields with lead shielding of 0.5 mm lead encased in steel were 50.86% and 99.5%, respectively.

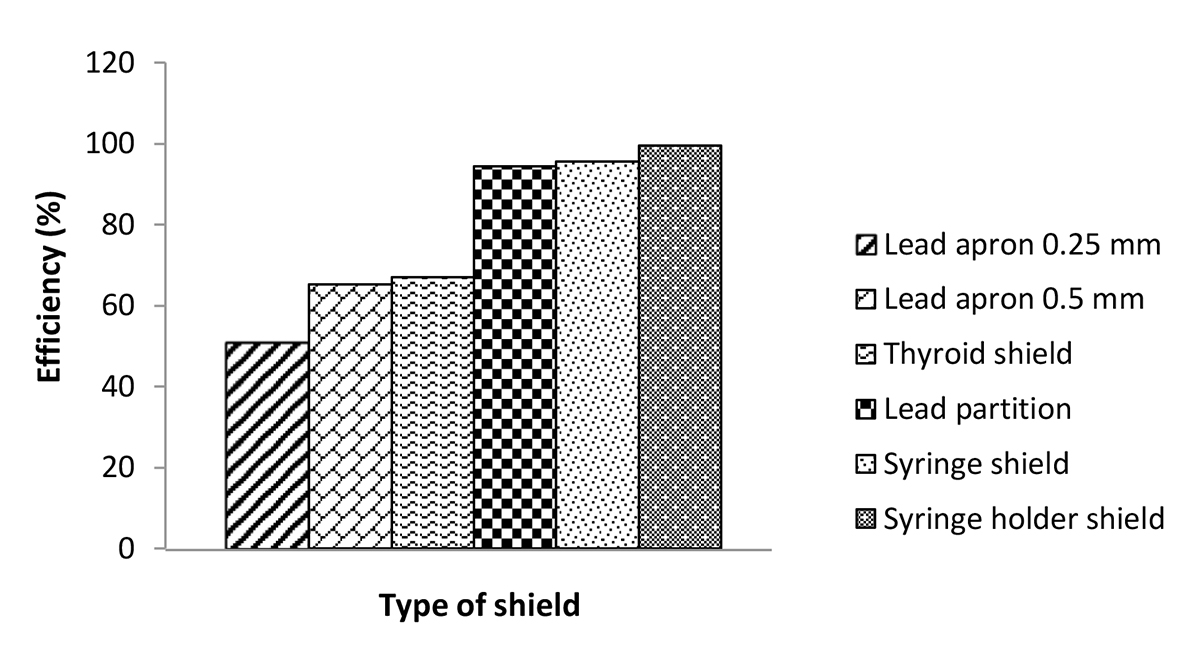

Figure 3. The efficiency obtained for the nuclear medicine shields against ⁹⁹Tc^m source by the dosimetric method.

Figure 4 shows the efficiency of the lead partition with thickness of 3 mm against ⁹⁹Tc^m and ¹³¹I sources. The efficiency of the lead partition was obtained 95.5% and 66.5% for ⁹⁹Tc^m and ¹³¹I sources, respectively.

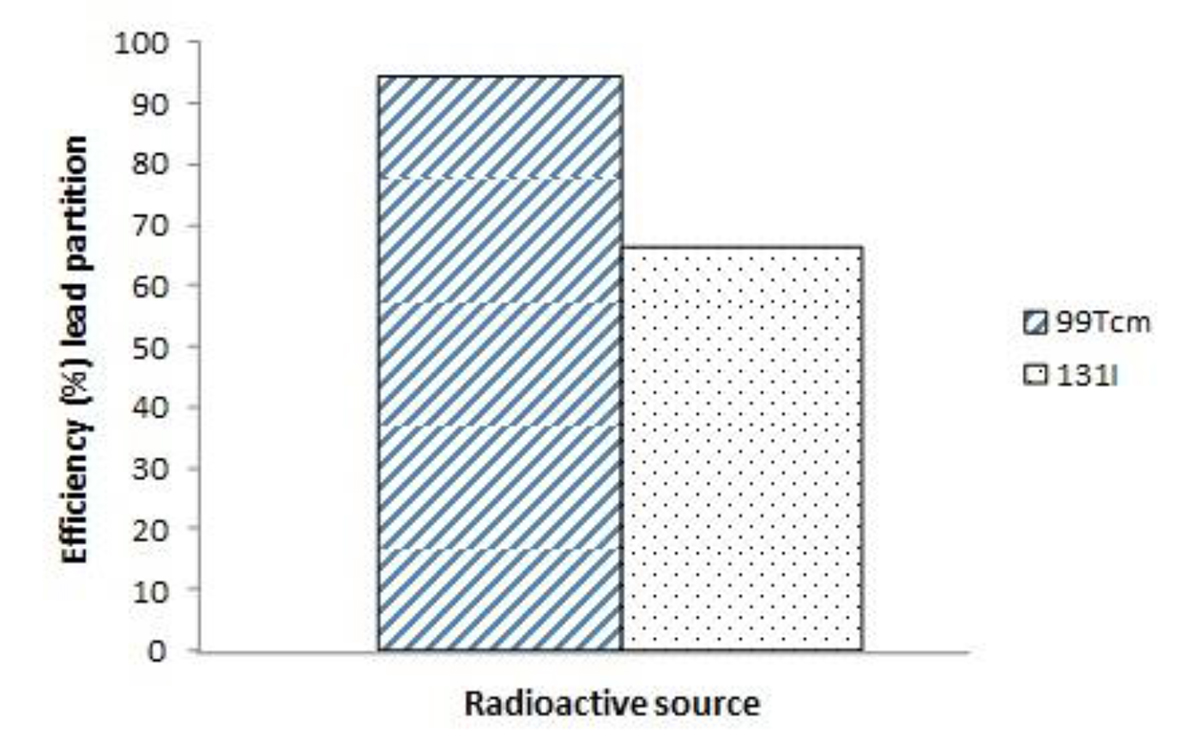

Figure 4. The efficiency obtained for the lead partition against ⁹⁹Tc^m and ¹³¹I sources by the dosimetric method.

Figure 5 illustrates the efficiency obtained by the simulated lead shields with lead thicknesses of 1-44 mm. The minimum and maximum efficiencies obtained by lead thicknesses of 1 and 43 mm are 19.36% and 99.79%, respectively.

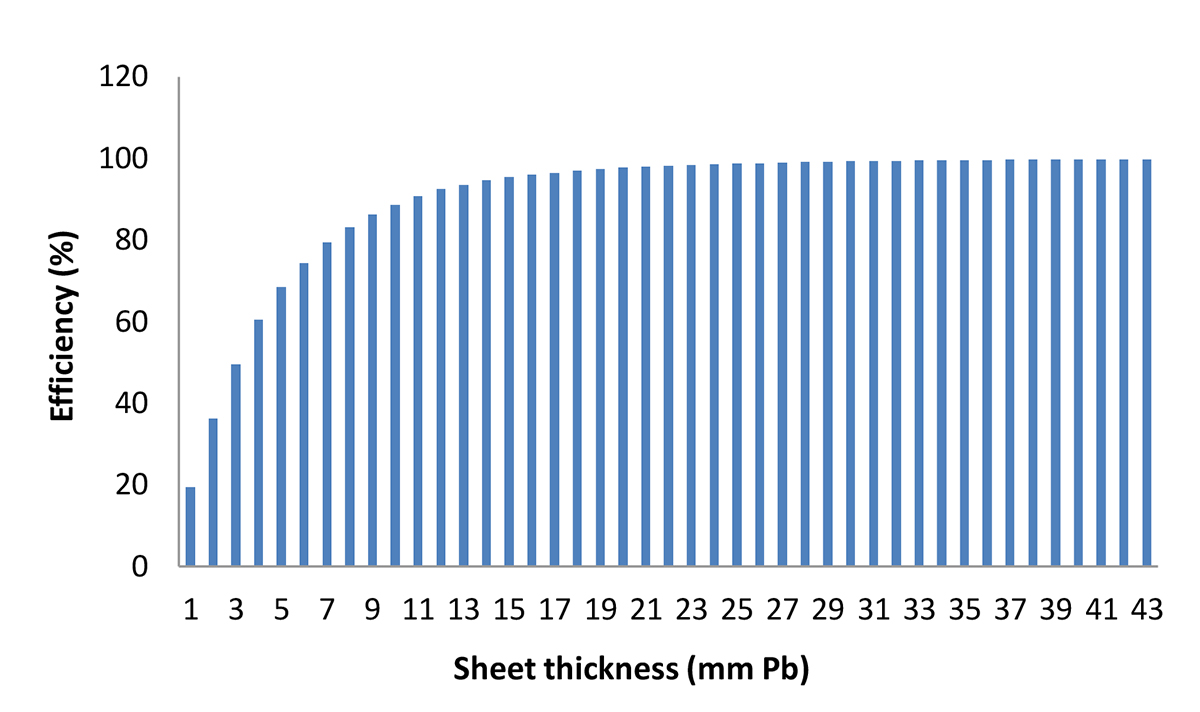

Figure 5. The efficiency obtained for the simulated lead shield with various thicknesses against the ¹³¹I source by the simulation method.

Discussion

In this study, efficiencies were obtained for nuclear medicine shields against 140 keV gamma rays emitted by ⁹⁹Tc^m (Figure 3), and efficiency of lead partition was obtained against ¹³¹I source by dosimetric method (Figure 4). Additionally, simulations were carried out to find an optimum thickness of lead material as a shielding against gamma-rays spectrum emitted by ¹³¹I (Figure 5).

Based on the dosimetric method of the shields against the ⁹⁹Tc^m source, the shields with more thicknesses provide higher efficiencies against ⁹⁹Tc^m. This is due to higher number of photons interactions with atoms of the shield. Photons lose much energy and finally are stopped in the shield (Figure 3). In the case of lead apron with lead equivalent thicknesses of 0.25 and 0.5 mm and thyroid shield with lead equivalent thickness of 0.5 mm, the results show that they provide efficiencies less than 70% (Figure 3). This is because of the predominance of Compton scattering at 140 keV photon energy emitted by the ⁹⁹Tc^m. Compton scattering is independent to atomic number of shield but it is dependent to shield- material density. Material shield is lead with relative density (11.34 g/cm³), which is less than high-density materials such as tungsten with density 19.25 g/cm³. Thus, at high energy (more than 100 keV) for obtaining the higher efficiency, high- or low-density material shield with less thickness and/or more thickness can be used, respectively. Therefore, it seems that the lead aprons and the thyroid shield are not optimum shields against a ⁹⁹Tc^m source due to lower density of lead and less thickness. This indicates that studies should be carried out to find an optimum material for protective garment for nuclear medicine personnel against ⁹⁹Tc^m source. Based on a previous study, an optimum material was achieved as the protective garment for nuclear medicine personnel against ⁹⁹Tc^m source [ 14 ]. In a similar study, using dosimetric method, Young [ 15 ] showed that lead apron with lead equivalent thickness of 0.5 mm provides efficiency of 64.5% against ⁹⁹Tc^m while in the current study, this was obtained 65%. The result of the current study is in good agreement with Young’s study with differences equal to 0.5%. Furthermore, in a similar study, Ahmed’s et al. [ 16 ] showed that the efficiency of lead apron with lead equivalent thickness of 0.5 mm was 82.7% for ⁹⁹Tc^m source. The result of the current study is relatively in low agreement with study carried out by Ahmed with a difference equal to 17.7%. It seems that this discrepancy is due to different situations used in these studies such as the types of dosimeters, exposure times and distances from the source. In study carried out by Ahmed et al., measurements were made by thermoluminescent dosimeter placed at 2 cm distance from ⁹⁹Tc^m source with and without lead apron for durations of 49 to 57 minutes [ 16 ]. In the current study, measurements were made using a calibrated model of GraetzX5C Plus dosimeter and the dosimeter was placed at 50 cm distance from the ⁹⁹Tc^m source with and without lead apron for duration of less than 1 minute in each dosimetric measurement.

In the case of shields such as lead partition, syringe shield and syringe holder shield, the results show that they provide efficiencies higher than 90% against ⁹⁹Tc^m radionuclide (Figure 3). In the case of a lead partition, it provides high efficiency equal to 94.4% against ⁹⁹Tc^m since high thickness of lead partition is seemly equal to 3 mm lead. At high thickness, interactions of high-energy photons with atoms of shield increased and more photons stopped at shield. Therefore, a lead partition with thickness of 3 mm is an optimum shield against ⁹⁹Tc^m source. This is due to the predominance of Compton scattering at 140 keV photon emitted by the ⁹⁹Tc^m. Compton scattering is dependent on density of material shield and independent on atomic number of shield. It is fact that at high-energy (more than 100 keV) lead shield due to relatively low density should be used with high thickness to provide higher efficiency against ⁹⁹Tc^m.

In the case of the tungsten syringe shield, again due to the predominance of Compton scattering at 140 keV energy, the tungsten syringe shield with a high density (19.25 g/cm³) and thickness of 2 mm is the optimum shield to protect radiation worker’s hands against gamma photons emitted by ⁹⁹Tc^m. In a similar study, Schürnbrand’s et al. [ 17 ] showed that the continuous use of tungsten syringe shield could significantly reduce the dose of fingers tips from 60 rad/y to 2-3 rad/y. The results of the current study are in agreement with the results obtained from study carried out by Schürnbrand et al. and only there is 1-2% difference.

In the case of the syringe holder shield, it provides the highest efficiency than other shields mentioned in this study against ⁹⁹Tc^m source. This may be due to its special structure made up of lead shielding encased in steel with the shielding tapers from 0.5 mm lead [ 11 ]. In the other words, the high efficiency of syringe holder is due to the combination of lead and steel in a cylindrical shape. Furthermore, steel has some advantages such as absorption of high-energy photons, radiation shielding, and lower thermal conductivity [ 18 ]. There are uncertainties in the dosimetric method in this study, which may be due to radiation contaminations in the dosimeter. The type a uncertainties are low because the readings of dosimeter were very similar in repeated dosimetry for each shield.

The results of the dosimetric method against ¹³¹I source show that the lead partition does not provide any significant efficiency against gamma-rays (364 keV (82%)) emitted by ¹³¹I source, but this is not true regarding to the lead partition against 140 keV gamma-rays emitted by the ⁹⁹Tc^m source (Figure 4). It is as a result of predominance of Compton effect at high energy photons (364 keV) emitted by ¹³¹I. Compton scattering is dependent on density of material shield and independent on atomic number of shield. Furthermore, Lead is a material with relative density (11.34 g/cm³) less than high-density materials such as tungsten with density 19.25 g/cm³. At high energy (more than 100 keV), lead shield with more thickness provides higher efficiency. It is concluded that lead partition with higher thicknesses should be applied for protection against a ¹³¹I source.

Therefore, in this study, Monte Carlo simulation was used to find the optimum thickness of lead shield against ¹³¹I source. The results of the simulations show that lead shields with thicknesses of 11-28 mm provide efficiency ranging from 90.6%-99.0% (Figure 5). At thicknesses higher than 28 mm, efficiency slightly increased. For example, at thicknesses of 29-43 mm, efficiency is ranging from 99.10 to 99.79%. For ¹³¹I, it seems that higher thicknesses of lead provide higher efficiencies because lead has continuously increased mass attenuation coefficient at energies less than 1000 keV. This is reasonable based on the diagram of mass attenuation coefficient for lead in energies less than 1000 keV [ 19 ].

It is concluded that lead shields with thicknesses of 11-28 mm are optimum for ¹³¹I source in nuclear medicine. Additional to high efficiency, the weight of shield is another important factor for designing the shield and its durable. Therefore, it seems that lead shield with thickness of 11 mm is optimum and can be applied to protect against high-energy gamma rays (364 keV) emitted by ¹³¹I source in nuclear medicine. In a similar dosimetric study carried out by Deb’s et al. [ 20 ] it was concluded that lead shield with lead equivalent thickness of 1.25 mm did not reduce the dose against ¹³¹I source. In the present study, using simulation method, the efficiency of lead shield with thickness of 1 mm was obtained 19.36% against ¹³¹I source, which is a low level of efficiency. The result of this study is in agreement with the result of the study conducted by Deb’s et al.

Based on the results of the current study, a lead shield with higher thickness is necessary to protect against the gamma rays by ¹³¹I source and a higher thickness leads to a higher weight that is disadvantage. As a future study, it is suggested that this work is performed to find an optimum material as the protective garment against ¹³¹I source in nuclear medicine.

Conclusion

Lead partition, lead syringe and syringe holder shield provide efficiencies higher than 90%, and they are optimum shields used routinely against 140 keV gamma-rays emitted by ⁹⁹Tc^m source in nuclear medicine.

In the case of ¹³¹I source, the available lead partition with lead equivalent thickness of 3 mm does not provide significant efficiency. It seems that lead shields with thicknesses of 11-28 mm provide the optimum efficiencies ranging from 90.6% to 99.0% against ¹³¹I source.
