Introduction

Breast cancer is the most common malignant disease in Iranian women with 6160 new cases each year and 1063 cases lead to death [ 1 - 3 ]. Radiotherapy (RT) plays an important role in the treatment of breast cancer as a post-operative modality increasing locoregional control and survival rate [ 4 , 5 ]. Radiotherapy of breast cancer typically included two tangential opposed fields to cover chest wall or breast tissue. Because of the adjacency of lung to breast tissue, the lung inevitably receives higher doses from treatment field; this lead to incidence of lung injury after radiotherapy [ 6 ]. One of the most common radiation-induced lung injuries is radiation pneumonitis (RP) developing 3 to 6 months after radiotherapy. RP is an inflammatory reaction in alveolar region of lung that in severe cases decreases patient quality of life and can be fatal [ 7 ]. Symptoms of RP included dry cough, chest pain and low-level fever. This complication can be detected by radiological and pulmonary function changes after radiotherapy [ 8 ]. Many clinical factors such as age [ 9 ], smoking history [ 10 ], chemotherapy [ 11 ] are associated with RP risk. In addition, three-dimensional (3D) treatment planning systems provides the data of dose distribution and irradiated volume in the organ of interest. Many studies reported that the irradiated lung volume, total dose and dose per fraction influence the risk of RP [ 12 , 13 ].

The present study aims to investigate predictive factors of RP incidence and pulmonary function changes after breast cancer radiotherapy to manifest how pulmonary function changes can predict the risk of radiation pneumonitis.

Material and Methods

Forty women, who were referred for adjuvant RT after surgery to Imam Reza hospital, Tabriz, Iran, were recruited to this prospective basis study. The ethics committee of Tabriz University of medical sciences approved the study and informed consent was obtained from each patient included in the study. Two patients were omitted from the study because early metastasis and incomplete RT treatment and 6 patients refused to continue follow-ups. The remaining 32 patients were followed up to 6 months after RT. Most of the patients underwent modified radical mastectomy (MRM), and all patients had pathology of invasive ductal carcinoma and received 6-8 cycles of chemotherapy concluded 3–4 weeks before RT. 30 patients received nodal irradiation to supraclavicular and axillary region.

Treatment technique

All patients were placed in supine position, with the arms elevated above the head, during the CT simulation and treatment. Two tangential opposed fields were used to cover chest wall and breast tissue in patients who underwent MRM and breast conserving surgery (BCS), respectively. In the patients with possibility of lymph node metastasis, one anterior photon field (with 10-12 degree angel) was used to cover axillary lymph node and supraclavicular fossa. An additional electron beam (6-9 MeV) as a boost to surgical scar was delivered in patients who had undergone BCS. Radiotherapy was delivered with total dose of 50 Gy in 25 fractions (5 days per week).

Chemotherapy regimen included Adriamycin (60 mg/m²), cyclophosphamide (500-600 mg/ m²) and taxol or taxotere (75 mg/m²).

All patients received 3D-conformal RT with multileaf collimator to reduce lung and heart volume in the treatment field. The dose-volume parameters of mean lung dose (MLD), lung volume, percentage of lung volume receiving at least dose of 5-50Gy (V₅-V₅₀) were derived from dose-volume histogram.

Pulmonary function evaluation

The spirometry tests were obtained before, 3 and 6 months after RT. Two important factors measured by spirometry are Forced vital capacity (FVC) measuring lung volume and Forced expiratory volume in 1 second (FEV1) revealing the properties of large and medium size airways [ 14 ]. Changes of these parameters were recorded as the difference between pre- and post-RT values relative to pre-RT values.

Radiation pneumonitis

All patients were followed up to 6 months after RT for clinical examination and assessment of respiratory symptoms. Patients underwent computed tomography (CT) scan 4 months after RT. The common radiographic features in the irradiated lung included ground-glass opacities and airspace consolidation. RP was graded based on common terminology criteria for adverse events version 3 (CTCAE v3.0.). The grade 1 is asymptomatic with only radiographic findings, and grade 2 is symptomatic, but not interfering with activities of daily living (ADL). Grade 3 is symptomatic and interfering with ADL and O2 indicated; in addition to, grade 4 is life-threatening with ventilator support indicated, while grade 5 is equal to death [ 15 ].

Statistical analysis

Paired t-test used to compare spirometry parameters before and after RT. The correlation between RP and spirometry changes was evaluated by independent t-test. Univariate and multivariate regressions methods were used to analyze correlation between RP and dose-volume factors. All the statistical analysis were performed by Stata version 14.2 (StataCrop, Texas).

Results

Patients and related factors of treatment are shown in Table 1. Eight patients developed grade 1 and 2 RP. There were no severe cases (grade ≥3) in this study. From 8 patients, who developed RP, only one patient showed clinical symptom of dry cough, but in the other patients, the grade1 of RP was defined by radiographic features. The area of consolidation and opacities was seen on CT. Sometimes features of atelectasis and ipsilateral pleural effusion were observed.

According to results of univariate analysis, all the dose-volume parameters correlated to RP incidence, except V₄₅ and MLD. None of patient and treatment-related factors correlated to RP incidence. The results of univariate analysis about the associated factors to RP are summarized in Table 2.

To multivariate analysis, the parameters which highly correlated to each other (correlation>0.85) were omitted from analysis. Among the dose-volume parameters, only the V₁₀ significantly was associated to RP incidence (P<0.05). The mean value of V₁₀ was higher in patients who developed RP (44.03% vs. 35.75%, P<0.0001). For V₁₀<40% and V₁₀≥40%, the RP incidence were 5.26% and 61.54%, respectively.

Spirometry parameters at 3 and 6 months after RT were compared with pre-RT value and mean relative changes of FEV1 and FVC were compared between two groups with and without RP. The mean values of FEV1 reduction were significantly higher in the group with RP at 3 and 6 months. Figure 1 illustrated the changes of FEV1 and FVC at 3 and 6 months after RT. The mean relative decrease of FEV1 and FVC in the patients group who developed RP was 15.25± 3.81, 9.97 ± 2.52 at 3 months and 15.26 ± 2.37, 12.25 ± 2.35 at 6 months after RT. Both parameters of FEV1 and FVC had a reduction 3 and 6 months after RT but FVC changes were not significantly associated to RP incidence.

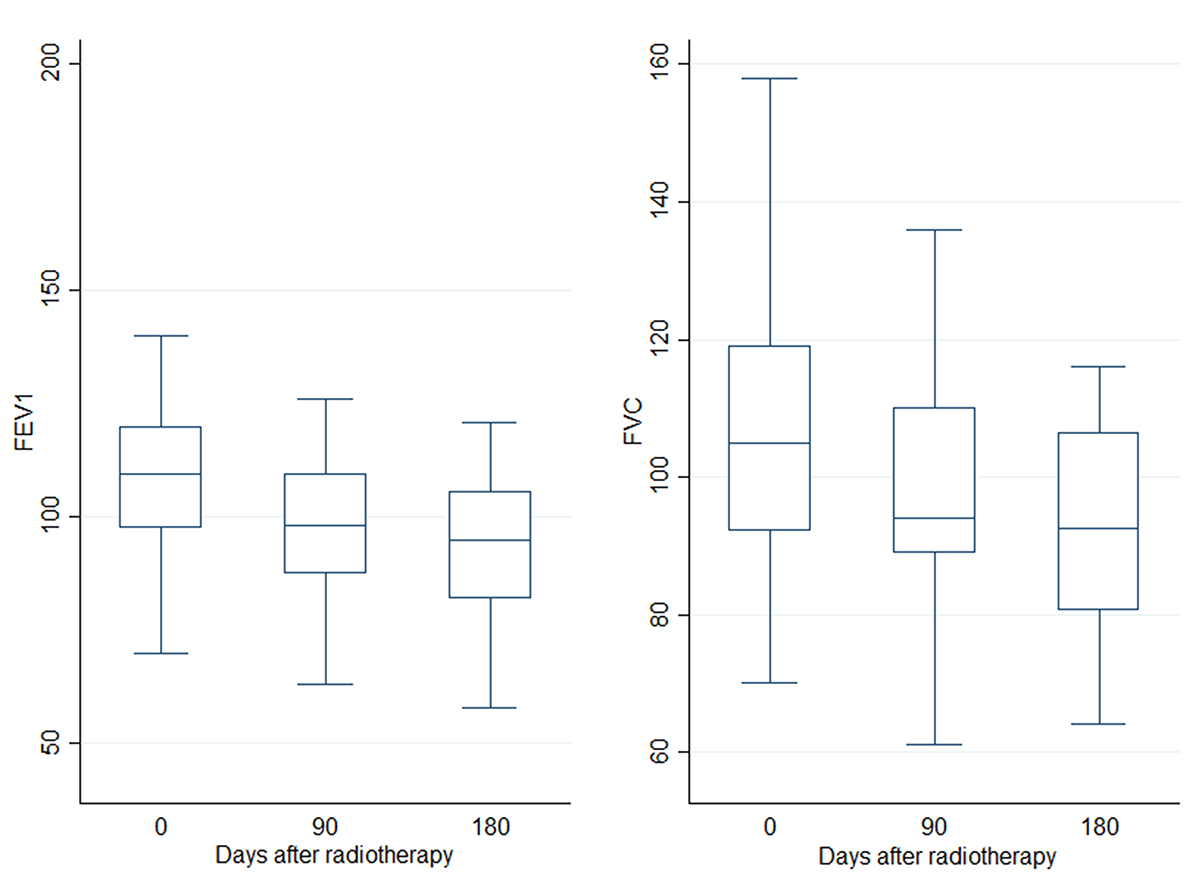

Figure 1. Changes of Spirometry parameters (Forced expiratory volume in 1 (FEV1) and Forced vital capacity (FVC) ) over time; the left graph shows changes of FEV1, 90 and 180 days after radiotherapy in comparison to before radiotherapy (day 0). The right graph shows changes of FVC, 90 and 180 days after radiotherapy in comparison to before radiotherapy (day 0). FEV1: forced expiatory volume in 1 second, FVC: forced vital capacity.

None of the patient and treatment related factors were associated to pulmonary function reduction at 3 and 6 months after RT. The correlation analysis did not show any relation between dose-volume parameters and FEV1 and FVC reduction after RT.

Discussion

Radiation pneumonitis is one of the most common adverse effects after thoracic radiotherapy [ 16 ]. Identifying patients at risk of RP is important to modify treatment plan and minimize volume and dose received by lung. Since 3-D conformal RT and multileaf collimation reduces lung volume in the treatment field, no severe cases of RP was seen in this study.

Several clinical and dose-volume factors (MLD, percentage of lung volume receiving at least dose of d Gy) suggested as predictive parameters for RP, but the results are inconsistent. Zhou et al. evaluated predictors of radiation induced lung injury (RILI) in 109 patients with breast cancer who underwent intensity modulated radiation therapy (IMRT). They found that the parameters of age, clinical staging and operation has no effect on RILI incidence and suggested the V₂₀ (threshold value: 29.03 %) as an independent predictor for RILI [ 17 ]. Lee et al. also reported the ipsilateral V₂₀, age and low BMI as predictors of RP in breast cancer patients who underwent hybrid-IMRT [ 18 ]. In the present study, the V₂₀ was eliminated from multivariate analysis due to high correlation with other dose-volume parameters. The clinical factors did not show any correlation to RP incidence; it can be related to small sample size in this study. From all dose-volume parameters, the V₁₀ statistically was associated to RP. The RP incidence in the group with V₁₀<40% and V₁₀≥40% were 5.26% and 61.54%, respectively. Our results are in agreement with study of Shi et al. which found that V₁₀>50% was associated to severe acute RP in lung cancer patients treated with concurrent chemotherapy and IMRT [ 19 ].

The pulmonary function parameters showed significant reductions after radiotherapy, especially in the patients who developed grade 1 and 2 radiation pneumonitis. Decrease in FEV1 and FVC 3 to 6 months after RT represents early inflammatory reaction in the alveolar region known as radiation pneumonitis. Our results are in agreement with other studies that assessed changes of pulmonary function after RT. Spyropoulou et al evaluated pulmonary function changes, 3 months after breast cancer radiotherapy. They found the significant reduction in pulmonary function only in the patients group who received locoregional radiotherapy and chemotherapy [ 14 ]. Because the most patients in this study received supraclavicular field, we could not compare FEV1 and FVC changes in the two patients group with and without loco-regional RT. Erven et al. evaluated changes of pulmonary function, 3, 6, 12 months and 8 to 10 years in 75 patients with breast cancer who received locoregional RT. They reported that all the pulmonary function parameters significantly had reduction 3 and 6 months after RT and late reduction of parameters were clinically significant in the patients with lower baseline lung function. In addition, they found that the patients with right breast cancer showed more reduced FEV1, 8 to 10 years after RT because the left lung volume is smaller due to heart, while larger lung volume is irradiated in right breast cancer [ 20 ]. In the present study, most incidence of RP was seen in the patients with lower pre-RT values of FEV1 and FVC. Nevertheless, there was no difference in pulmonary function reduction in the right and left breast cancer.

Park et al. evaluated predictive factors of RP and pulmonary function changes after definitive concurrent chemoradiotherapy for non-small cell lung cancer; they found all parameters of the pulmonary function had reduction after RT and the magnitude of changes was associated to dose-volume parameters. In the patients with grade≥2 RP, mean relative reduction of 15.7% and 9.7% for FEV1 and FVC at 3 months and 17.9% and 4.6% at 6 months were observed. The MLD was associated to FEV1 and FVC reduction at 6 and 12 months after RT. The parameters of V₂₀ and V₃₀ were associated to FEV1 reduction at 6 months and FVC reduction at 12 months [ 21 ]. While, in the present study none of dose-volume parameters correlated to pulmonary function changes after RT (only V₁₀ and V₁₅ showed trend, P=0.06).

Conclusion

In the breast cancer patients, pulmonary function parameters especially FEV1 decreased at 3 and 6 months after RT, while most of these patients did not show obvious clinical symptoms. Therefor in the breast cancer, 3D-conformal radiotherapy spirometry test is valuable to identify patients at the risk of radiation pneumonitis.

Acknowledgement

This work was supported by the office of the vice president for research at the Tabriz University of Medical Sciences in Iran.

Conflict of Interest None

References

1. Emami RS, Aghajani H, Haghazali M, Nadali F, et al. The most common cancers in Iranian women. Iranian J Publ Health. 2009; 38:109-12.
2. Alizadeh OH, Hoseini M, Mirmalek A, Ahmari H, Arab F, Mohtasham AN. Breast Sarcoma: a review article. Iranian Journal of Surgery. 2014; 22:1-11.
3. Mousavi SM, Montazeri A, Mohagheghi MA, Jarrahi AM, Harirchi I, Najafi M, et al. Breast cancer in Iran: an epidemiological review. Breast J. 2007; 13:383-91. DOI | PubMed
4. Huang EH, Tucker SL, Strom EA, McNeese MD, et al. Postmastectomy radiation improves local-regional control and survival for selected patients with locally advanced breast cancer treated with neoadjuvant chemotherapy and mastectomy. J Clin Oncol. 2004; 22:4691-9. DOI | PubMed
5. Group EBCTC. Effect of radiotherapy after breast-conserving surgery on 10-year recurrence and 15-year breast cancer death: meta-analysis of individual patient data for 10 801 women in 17 randomised trials. Lancet. 2011; 378:1707-16.
6. Madani I, De Ruyck K, Goeminne H, et al. Predicting risk of radiation-induced lung injury. J Thorac Oncol. 2007; 2:864-74. DOI | PubMed
7. Mehta V. Radiation pneumonitis and pulmonary fibrosis in non-small-cell lung cancer: pulmonary function, prediction, and prevention. Int J Radiat Oncol Biol Phys. 2005; 63:5-24. DOI | PubMed
8. Marks LB, Bentzen SM, Deasy JO, Kong FM, et al. Radiation dose-volume effects in the lung. Int J Radiat Oncol Biol Phys. 2010; 76:S70-6. Publisher Full Text | DOI | PubMed
9. Lind PA, Wennberg B, Gagliardi G, Fornander T. Pulmonary complications following different radiotherapy techniques for breast cancer, and the association to irradiated lung volume and dose. Breast Cancer Res Treat. 2001; 68:199-210. DOI | PubMed
10. Jin H, Tucker SL, Liu HH, Wei X, Yom SS, Wang S, et al. Dose-volume thresholds and smoking status for the risk of treatment-related pneumonitis in inoperable non-small cell lung cancer treated with definitive radiotherapy. Radiother Oncol. 2009; 91:427-32. Publisher Full Text | DOI | PubMed
11. Dang J, Li G, Zang S, Zhang S, Yao L. Risk and predictors for early radiation pneumonitis in patients with stage III non-small cell lung cancer treated with concurrent or sequential chemoradiotherapy. Radiat Oncol. 2014; 9:172. Publisher Full Text | DOI | PubMed
12. Roach 3rd M, Gandara DR, Yuo HS, et al. Radiation pneumonitis following combined modality therapy for lung cancer: analysis of prognostic factors. J Clin Oncol. 1995; 13:2606-12. DOI | PubMed
13. Tsujino K, Hirota S, Endo M, Obayashi K, et al. Predictive value of dose-volume histogram parameters for predicting radiation pneumonitis after concurrent chemoradiation for lung cancer. Int J Radiat Oncol Biol Phys. 2003; 55:110-5. DOI | PubMed
14. Spyropoulou D, Leotsinidis M, Tsiamita M, et al. Pulmonary function testing in women with breast cancer treated with radiotherapy and chemotherapy. In Vivo. 2009; 23:867-71. PubMed
15. Trotti A, Colevas AD, Setser A, et al. CTCAE v3. 0: development of a comprehensive grading system for the adverse effects of cancer treatment. Semin Radiat Oncol. 2003; 13:176-81. DOI
16. Wang S, Liao Z, Wei X, Liu HH, et al. Analysis of clinical and dosimetric factors associated with treatment-related pneumonitis (TRP) in patients with non-small-cell lung cancer (NSCLC) treated with concurrent chemotherapy and three-dimensional conformal radiotherapy (3D-CRT). Int J Radiat Oncol Biol Phys. 2006; 66:1399-407. DOI | PubMed
17. Zhou ZR, Han Q, Liang SX, et al. Dosimetric factors and Lyman normal-tissue complication modelling analysis for predicting radiation-induced lung injury in postoperative breast cancer radiotherapy: a prospective study. Oncotarget. 2017; 8:33855-63. Publisher Full Text | DOI | PubMed
18. Lee TF, Chao PJ, Chang L, et al. Developing Multivariable Normal Tissue Complication Probability Model to Predict the Incidence of Symptomatic Radiation Pneumonitis among Breast Cancer Patients. PLoS One. 2015; 10:e0131736. Publisher Full Text | DOI | PubMed
19. Shi A, Zhu G, Wu H, Yu R, et al. Analysis of clinical and dosimetric factors associated with severe acute radiation pneumonitis in patients with locally advanced non-small cell lung cancer treated with concurrent chemotherapy and intensity-modulated radiotherapy. Radiat Oncol. 2010; 5:35. Publisher Full Text | DOI | PubMed
20. Erven K, Weltens C, Nackaerts K, et al. Changes in pulmonary function up to 10 years after locoregional breast irradiation. Int J Radiat Oncol Biol Phys. 2012; 82:701-7. DOI | PubMed
21. Park YH, Kim JS. Predictors of radiation pneumonitis and pulmonary function changes after concurrent chemoradiotherapy of non-small cell lung cancer. Radiat Oncol J. 2013; 31:34-40. Publisher Full Text | DOI | PubMed
