Background: The effects of radiation on the cellular compartments of the tumor microenvironment (TME) might be essential in radiotherapy outcomes.
Objective: We aimed to assess the effects of the different doses of gamma irradiation on viability, ABCA1 and MMP-9 expression in adipose-derived mesenchymal stem cells (ASCs) as a critical part of TME.
Material and Methods: In this experimental study, ASCs were extracted from five healthy donors and irradiated with different doses of 5, 10 and 30 Gy of gamma. Then, RNA was extracted from irradiated ASCs and cDNA was synthesized. The viability of ASCs was determined at 24, 48, 72 and 168 h after irradiation using trypan blue staining. The expression of ABCA1 was checked by quantitative real-time (qRT)-PCR technique and the expression of MMP-9 protein was evaluated by western-blot.
Results: Based on our findings, 10 Gy and 30 Gy but not 5 Gy of gamma irradiation significantly decreased the viability of ASCs after 24, 48, 72 and 168 h compared to the non-irradiated cells (p < 0.05). However, a dose of 5 Gy increased ABCA1 in ASCs significantly compared to 10 Gy and 30 Gy (P=0.01 and P=0.02, respectively). In addition, the analysis of western blot data showed that 5 Gy of gamma irradiation significantly increased the expression of MMP-9 in ASCs (P=0.019).
Conclusion: It is concluded that various doses of gamma radiation elicit differential ASCs responses that may lead to different tumor cell reactions to the radiotherapy through bystander effects.
Tumor microenvironment (TME) is considered as a dynamic and heterogeneous environment regulating cancer destiny and the outcome of cancer targeted therapies [ 1 - 3 ]. Among the cells that are present in TME, mesenchymal stem cells (MSCs) have impressively attracted great attention in recent years. MSCs are progenitor cells, which can be picked from numerous adult tissues such as adipose tissue, periodontal ligament, and lungs [ 4 - 6 ]. These cells produce various subsets of stromal renewing cells subscribed to maintain the diversity of tissues in the body [ 7 , 8 ]. Moreover, MSCs are proficient in regulating the immune system by secreting several growth factors and cytokines [ 9 ]. Previous studies showed the presence of MSCs in the stromal of numerous tissues experiencing tumorigenesis and cancer development [ 10 ]. Nevertheless, other reports showed that MSCs have an anti-cancer role in the TME [ 11 , 12 ].
For many years, scientists focused only on strategies targeting tumor cell but it seems to be not efficient enough. However, extending the therapeutic approaches to the TME may lead to the complete success of overcoming cancer [ 13 ]. Thereafter, scientists realized that the effects of radiation on TME might be decisive for the outcome of radiotherapy [ 14 , 15 ]. In this regard, a previous study reported that irradiation induces reactive oxygen species, thereby stimulating TME modifications towards transformation and activating cancer cells and inflammatory responses [ 15 ]. Another study reported that microenvironment helps glioblastoma stem-like cells to resist against radiation [ 16 ]. It seems that releasing a variety of inflammatory cytokines from cancer stem cell which are located in the TME may lead to radioresistance and, consequently, failure in radiation therapy [ 17 ].
Since the tumor microenvironment might be effective in radiotherapy outcomes, in this study, we decided to evaluate the effects of different doses of gamma irradiation on the survival of ASCs and the expression of ABCA1 and MMP-9 in these cells.
Material and Methods
Ethical approval and sampling
In this experimental study, all of the persons who participated in this study approved informed and voluntary research consent. The original protocol of this study was sought and granted by the ethical committee of Shiraz University of Medical Sciences (IR.SUMS.REC.1396. S.290). All members were assured that their information would be preserved confidential. We randomly selected five healthy women who referred to the MRI Hospital for mammoplasty.
ASCs isolation and culture
We obtained adipose samples and extracted ASCs using a previously reported method [ 18 ]. Briefly, the tissues were transferred to the laboratory in normal saline tubes and washed twice with phosphate buffered saline (PBS). At first, for improving digestion of adipose tissues with 0.2% collagenase type I (GIBCO, USA), they were fragmented with surgical scalpels. Then, the crushed samples were incubated at 37 °C for 40 min. The suspension was centrifuged at 400 G for 5 min and cultured in DMEM medium supplemented with 1% penicillin/streptomycin and 10% fetal calf serum (GIBCO, USA). Finally, the flasks enclosing primary cells were kept in incubators with a moist condition, 5% of CO2 and at temperature of 37 °C. When the confluence of the primary cells reached more than 90%, the cells were transported to larger flasks with a new culture medium. In addition, flow cytometry test was done to check the type of the cells t extracted.
After growth of ASCs and increase the confluence of ASCs to 90% per flask, they were irradiated to gamma with a dose of 5, 10 and 30 Gy (dose rate 0.28 Gy/min). We used a Theratron cobalt-60 therapy unit (MDS Nordion, Canada) in the Radiotherapy and Radiation Oncology Department of Namazi Hospital. In this study, ASCs were irradiated in the field of view of 35×35 cm2. In addition, the distance between the radiation source and the ASCs was 80 cm. At the same time during the irradiation of ASCs, the cells of the control group were placed in the same conditions outside the radiation field. After irradiation, to inhibit repair of DNA damage, the flasks containing ASCs were moved onto icebox and immediately relocated to the incubator.
The viability of ASCs after gamma irradiation
In order to compare the growth rate of ASCs following exposure to gamma irradiation emitted from Co 60 source, the viability was measured during the culture period (in the third passage). ASCs were irradiated with either 0, 5, 10 or 30 Gy, and then harvested, counted and subsequently 5×103 cell/cm2 of them were seeded in 96 well plates and incubated for 24 h in the standard condition (37 °C; 5% CO2). The cells count was performed in 24, 48, 72 and 168 h after irradiation by trypan blue staining. In addition, counts for each cell were repeated twice a day on experimental samples for each condition. The mean of the cell number was calculated within a week for each sample; culture medium exchange was performed every 72 h using DMEM.
Quantitative Real-Time PCR
To find the effects of gamma irradiation on ABCA1, qRT-PCR method (Bio-Rad, USA) was done. Briefly, ASCs were washed with PBS and RNA was extracted using 1 ml of cold RNX-Plus (Invitrogen, Germany). In order to investigate the precision of the RNA, optical densities of extracted RNA were read at 260 and 280 nm using a NanoDrop spectrophotometer (Wilmington, DE, USA). Then, cDNA was made by the cDNA synthesis kit according to the manufacturer’s instruction (Fermentas, Canada). All reactions were measured by 2x SYBR Green Master Mix (Applied Biosystems, USA) according to the hot-start Jumpstart Taq DNA Polymerase enzyme (Sigma, USA). The β-actin gene was considered as the housekeeping gene and all qPCR reactions were repeated twice. The primers were designed by AllelID software (Oligo Perfect Designer, Invitrogen, USA).
Western blotting of MMP9
In this study, the expression of MMP9 was determined using western blotting assay. In brief, ASCs were washed twice with PBS and lysed with protein extraction buffer (RIPA buffer: 1% NP-40, 0.1% SDS, 1% DOC, 25 mM Tris-HCl pH 7.4 and 150 mM NaCl). ASCs suspension was then centrifuged for 20 min, 12,000 g at 4 °C. Then, Bradford assay was done to quantify the protein concentration and standardize equal protein. Next, 70 μg protein per lane containing the supernatants and the same amount of loading buffer was run on 12% SDS-PAGE gel for 90 min at 100 V and then transferred onto a Polyvinylidene Fluoride (PVDF) membrane. The membrane was then blocked with 5% nonfat skim milk PBS-Tween 80 (Sigma, USA) overnight at 4 °C. Then, the blot was washed four times with washing buffer (0.1% Tween 80 in PBS) and exposed to rabbit primary antibodies to MMP9 (Abcam, Cambridge, MA) with agitation at room temperature for 1 h. The blot was then washed four times and Goat anti-rabbit of MMP9 (Abcam, Cambridge, MA) was used as a secondary antibody. Protein bands were visualized using ECL Plus reagents (GE Healthcare/Amersham) according to the manufacturer’s protocol. Scanned images of the western blots were quantified by Image lab v4.01. Normalized band intensity was produced using β-actin band intensity in relevant columns.
SPSS software version 21 and GraphPad Prism version 7 were used for data analysis and graph presentation, respectively. T-test and independent t-test were used to analyze the parametric data, and Mann-Whitney and Wilcoxon were used for analyzing the non-parametric data. P <0.05 was considered significant.
Effect of irradiation on the viability of ASCs

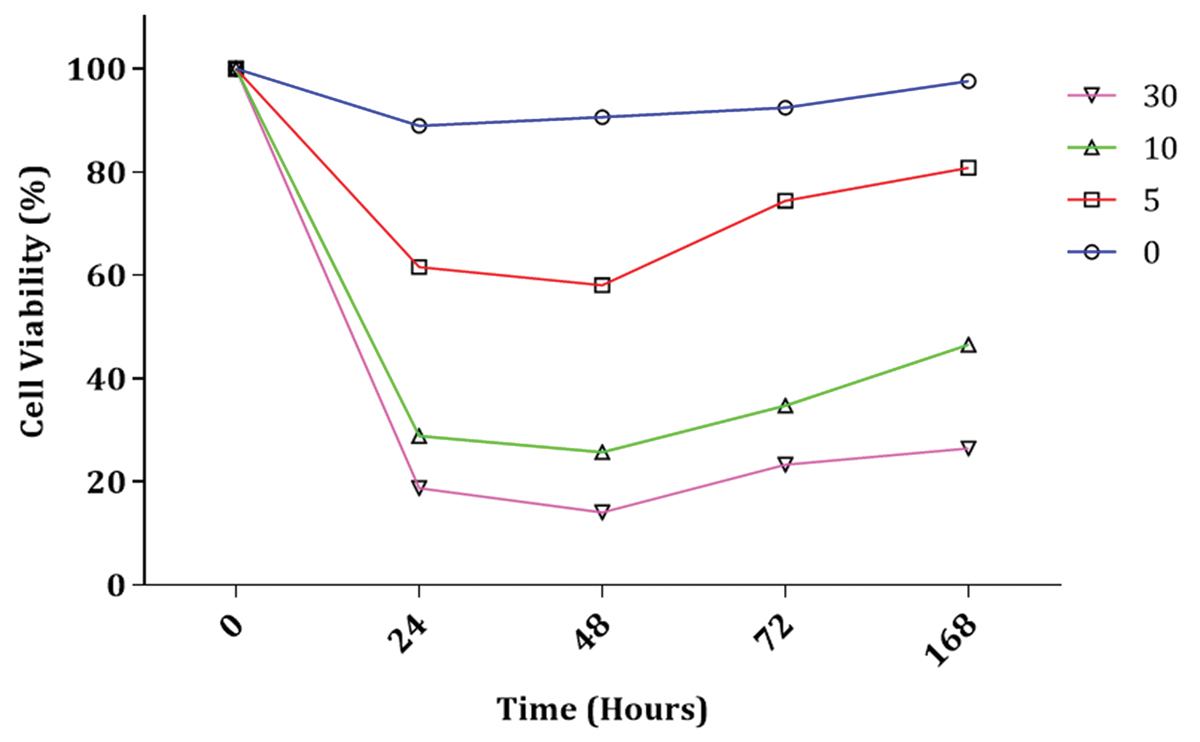

To evaluate the effects of gamma irradiation on the viability of ASCs, we exposed the cells to the various doses of 0, 5, 10, and 30 Gy of gamma and then cell count was performed at the time points of 24, 48, 72 and 168 h with trypan blue. At first, we recorded the viability of ASCs in the non-irradiated group after 24 h (88.94±1.22%), 48 h (90.62±0.9%), 72 h (92.43±0.88%) and 168 h (97.6±0.19%). Analysis of data showed that after exposing to 5 Gy of gamma irradiation, there was no significant difference in the viability of ASCs after 24 h (61.58±10.08%, P>0.9), 48 h (58.03±5.94%, P>0.9), 72 h (74.4±21.9%, P> 0.9), and 168 h (80.75 ± 4.47%, P>0.9) in comparison to non-irradiated ASCs. Then, regarding to non-irradiated ASCs, we found that 10 Gy gamma-irradiation decreased the viability of ASCs after 24 h (28.86 ± 9.59%, P=0.01), 48 h (27.73 ± 0.7%, P=0.04), 72 h (34.73 ± 3.26%, P=0.08) and 168 h (46.53 ± 3.39, P=0.03). Similarly, viability of 30 Gy gamma-irradiated ASCs decreased significantly at 24 h (18.72 ± 2.1%, P=0.001), 48 h (14.02 ± 2.1%, P<0.0001), 72 h (23.27 ± 5.46%, P<0.0001) and 168 h (26.42 ± 9.2%, P<0.0001) after irradiation (Figure 1).

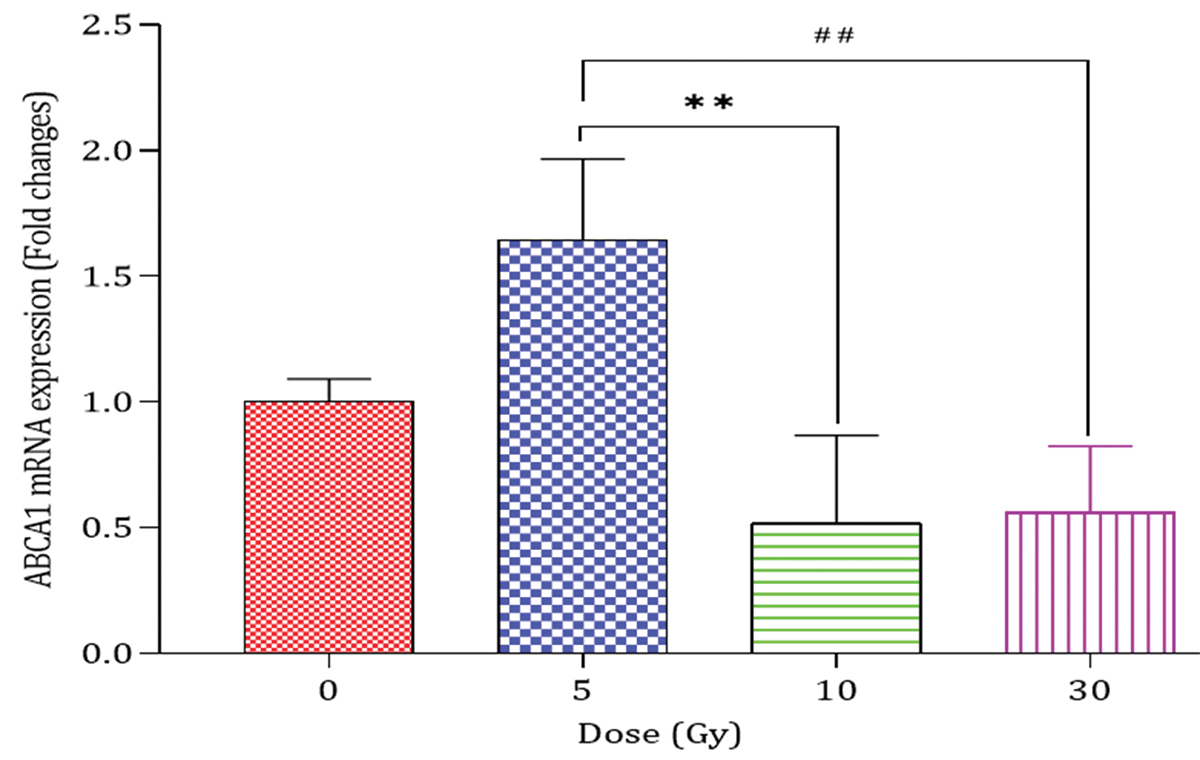

To understand the effect of gamma radiation on the ABC transporter of ASCs, expression of ABCA1 was investigated 72 h after irradiation. As depicted in Figure 2, in comparison to non-irradiated ASCs, 10 Gy and 30 Gy of gamma irradiation decreased the expression of ABCA1. These changes were not statistically different (P=0.52 and P=0.61, respectively). However, the expressions of ABCA1 in 5 Gy irradiated ASCs were, respectively, 3.2 and 2.9 fold higher than 10 Gy and 30 Gy irradiated cells (P=0.01 and P=0.02).
Western blot analysis

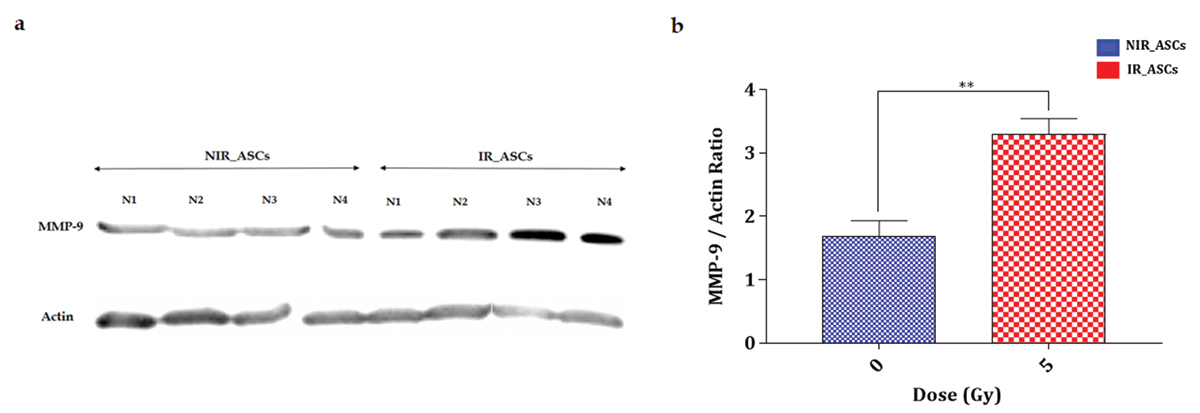

Western blot analysis was performed to examine the expression of MMP-9 in irradiated (IR) and non-irradiated (NIR) ASCs. Due to the upregulation of ABCA1 transcripts in 5 Gy of gamma irradiation, we checked the expression of MMP-9 in a dose of 5 Gy regarding non-irradiated ASCs. As shown in Figure 3, western blot analysis showed that a dose of 5 Gy significantly increased the expression of MMP-9 protein to 1.93 fold regarding non-irradiated ASCs (P=0.019).
The cellular compartment of the tumor site may affect the response rate of the tumor cells to the radiotherapy and different doses of radiation. In this study, we exhibited that exposure to 10 and 30 Gy of gamma, significantly decreased ASCs viability in comparison to the non-irradiated group. We also showed that 5 Gy of irradiation caused significant upregulation of ABCA1 as well as MMP-9 in ASCs. Accordingly, different doses of radiation may lead to differential changes in ASCs located in TME, which might affect radiotherapy outcomes.
Given that the viability of cells denotes cells ability to endure external stressors, we studied the effects of different doses of gamma irradiation on the ASCs viability at different time points. Our results indicated that, regarding non-irradiated ASCs, increasing of gamma irradiation from 10 to 30 Gy, decreases the viability of ASCs significantly. No significant change was observed in the viability of ASCs following exposure to 5 Gy of gamma at different time points. In this regard, Wang et al. reported that exposure to γirradiation at different doses from 0.25 to 10 Gy of irradiation reduced MSCs viability significantly. In comparison to our study, they used bone marrow sources for extracting MSCs and MTT assay to assess cell viability in mesenchymal stem cells. They showed that the adipogenic and osteogenic differentiation ability of MSCs reduced after irradiation [ 19 ]. Moreover, Filion et al. suggested that 5 Gy of irradiation decreases cell viability by approximately 65% in human embryonic stem cells [ 20 ]. It is supposed that gamma irradiation damages DNA in irradiated cells and inhibits the repair system, thereby reducing cell viability. However, it seems that the sources of stem cells are important for their reactions to the various doses of gamma irradiation.
It has been reported that an essential mechanism through which the cells overcome against chemotherapy drugs is ATP-binding cassette (ABC) transporters [ 21 ]. Furthermore, the association between the ABC transporters and radiation resistance has been proved [ 22 ]. In our study, we showed that 5 Gy but not 10 and 30 Gy of gamma irradiation significantly increased the mRNA expression of ABCA1 in ASCs. In this regard, studies reported that irradiation increase the expression of ABCA1 in different cell lines [ 22 , 23 ]. Based on these studies, the release of ABCA1 increases the survival of the cells after irradiation. In addition, the previous study reported that ABC transporters protect embryonic cells against the destructive effects of non-ionizing radiation. In this study, Leite et al. showed that ABCB1 transporter inhibition increased the harmful effects of ultraviolet light in embryonic cells [ 24 ]. Although the exact mechanism of ABCA1 upregulation post-irradiation remains to be elucidated, oxidative stress was considered as the most likely mechanism stimulating ABC transporter expression after irradiation [ 25 ].
Several studies demonstrated that irradiation increases MMP-9 protein in epithelial and macrophage cell lines [ 26 , 27 ]. Studies have also shown that irradiation caused growth and development in cancer cells by increasing the expression of MMP-9 [ 28 , 29 ]. Our results showed up-regulation of MMP-9 in ASCs after 5 Gy of gamma irradiation. In this regard, Cruet-Hennequart reported that 5 Gy of X-irradiation increased MMP-1, MMP-3 and MMP-13 proteins in human mesenchymal stem cells [ 30 ]. It seems that, besides the dose of irradiation, the source of irradiation might also affect the expression of different proteins.
In light of our findings, gamma irradiation increases the expression of ABCA1 and MMP-9 in ASCs. Accordingly, it can be predicted that the expression of such molecules denotes angiogenic and reconstructive behavior of ASCs. Because of the vicinity of ASCs to the tumor cells in the TME and their radiosensitivity, the response of cancer cells to radiation treatment might be modified by the bystander effects of ASCs, thereby affecting the radiation outcome. Thus, deep insight into TME affords a chance to achieve efficient strategies overcoming tumors during radiation treatment.
The authors would like to thank the patients and all the participants for their kind contribution to this project. This research was extracted from Shahram Taeb’s thesis. Also, this work was financially supported by Shiraz University of Medical Sciences, Shiraz, Iran (Grant no.12468) and Shiraz Institute for Cancer Research (Grant no. ICR100504) for fulfilling his PhD degree.
S. Taeb Performed all in vitro experiments, analyzed the data and wrote the manuscript. MA. Mosleh-Shirazi Performed in vivo experiment and analyzed the in vivo data. A. Ghaderi, M. Razmkhah and SMJ. Mortazavi Contributed to the concept and design, supervising the data analyses, financial support, and final approval of the manuscript. All authors read and approved the final manuscript.
Ethical approval was obtained by the Ethics Committee of our University (Ethics code: IR.SUMS.REC.1396. S.290).
Prior to study, participation consent and approval were obtained from five healthy participants recruited for mammoplasty surgery.
Conflict of Interest
- Reina-Campos M, Shelton PM, Diaz-Meco MT, Moscat J. Metabolic reprogramming of the tumor microenvironment by p62 and its partners. Biochim Biophys Acta Rev Cancer. 2018; 1870:88-95. Publisher Full Text | DOI | PubMed
- Chen ZY, Hu YY, Hu XF, Cheng LX. The conditioned medium of human mesenchymal stromal cells reduces irradiation-induced damage in cardiac fibroblast cells. J Radiat Res. 2018; 59:555-64. Publisher Full Text | DOI | PubMed
- Aghaalikhani N, Rashtchizadeh N, Shadpour P, Allameh A, Mahmoodi M. Cancer stem cells as a therapeutic target in bladder cancer. J Cell Physiol. 2019; 234:3197-206. DOI | PubMed
- Zuk PA, Zhu M, Mizuno H, Huang J, et al. Multilineage cells from human adipose tissue: implications for cell-based therapies. Tissue Eng. 2001; 7:211-28. DOI | PubMed
- Seo BM, Miura M, Gronthos S, Bartold PM, et al. Investigation of multipotent postnatal stem cells from human periodontal ligament. Lancet. 2004; 364:149-55. DOI | PubMed
- Sabatini F, Petecchia L, Tavian M, Jodon De Villeroche V, Rossi GA, Brouty-Boye D. Human bronchial fibroblasts exhibit a mesenchymal stem cell phenotype and multilineage differentiating potentialities. Lab Invest. 2005; 85:962-71. DOI | PubMed
- Shi Y, Du L, Lin L, Wang Y. Tumour-associated mesenchymal stem/stromal cells: emerging therapeutic targets. Nat Rev Drug Discov. 2017; 16:35-52. DOI | PubMed
- Fan W, Li J, Wang Y, Pan J, Li S, Zhu L, et al. CD105 promotes chondrogenesis of synovium-derived mesenchymal stem cells through Smad2 signaling. Biochem Biophys Res Commun. 2016; 474:338-44. DOI | PubMed
- Liu J, Kuwabara A, Kamio Y, Hu S, et al. Human Mesenchymal Stem Cell-Derived Microvesicles Prevent the Rupture of Intracranial Aneurysm in Part by Suppression of Mast Cell Activation via a PGE2-Dependent Mechanism. Stem Cells. 2016; 34:2943-55. Publisher Full Text | DOI | PubMed
- Nwabo Kamdje AH, Kamga PT, Simo RT, et al. Mesenchymal stromal cells’ role in tumor microenvironment: involvement of signaling pathways. Cancer Biol Med. 2017; 14:129-41. Publisher Full Text | DOI | PubMed
- Corsten MF, Shah K. Therapeutic stem-cells for cancer treatment: hopes and hurdles in tactical warfare. Lancet Oncol. 2008; 9:376-84. DOI | PubMed
- Tian LL, Yue W, Zhu F, Li S, Li W. Human mesenchymal stem cells play a dual role on tumor cell growth in vitro and in vivo. J Cell Physiol. 2011; 226:1860-7. DOI | PubMed
- Binnewies M, Roberts EW, Kersten K, Chan V, et al. Understanding the tumor immune microenvironment (TIME) for effective therapy. Nat Med. 2018; 24:541-50. Publisher Full Text | DOI | PubMed
- Arnold KM, Flynn NJ, Raben A, Romak L, et al. The Impact of Radiation on the Tumor Microenvironment: Effect of Dose and Fractionation Schedules. Cancer Growth Metastasis. 2018; 11:1179064418761639. Publisher Full Text | DOI | PubMed
- Barker HE, Paget JT, Khan AA, Harrington KJ. The tumour microenvironment after radiotherapy: mechanisms of resistance and recurrence. Nat Rev Cancer. 2015; 15:409-25. Publisher Full Text | DOI | PubMed
- Jamal M, Rath BH, Williams ES, Camphausen K, Tofilon PJ. Microenvironmental regulation of glioblastoma radioresponse. Clin Cancer Res. 2010; 16:6049-59. Publisher Full Text | DOI | PubMed
- Gu H, Huang T, Shen Y, Liu Y, Zhou F, Jin Y, et al. Reactive Oxygen Species-Mediated Tumor Microenvironment Transformation: The Mechanism of Radioresistant Gastric Cancer. Oxid Med Cell Longev. 2018; 2018:5801209. Publisher Full Text | DOI | PubMed
- Razmkhah M, Jaberipour M, Hosseini A, Safaei A, Khalatbari B, Ghaderi A. Expression profile of IL-8 and growth factors in breast cancer cells and adipose-derived stem cells (ASCs) isolated from breast carcinoma. Cell Immunol. 2010; 265:80-5. DOI | PubMed
- Wang Y, Zhu G, Wang J, Chen J. Irradiation alters the differentiation potential of bone marrow mesenchymal stem cells. Mol Med Rep. 2016; 13:213-23. Publisher Full Text | DOI | PubMed
- Filion TM, Qiao M, Ghule PN, Mandeville M, et al. Survival responses of human embryonic stem cells to DNA damage. J Cell Physiol. 2009; 220:586-92. Publisher Full Text | DOI | PubMed
- Chen Z, Shi T, Zhang L, Zhu P, Deng M, Huang C, et al. Mammalian drug efflux transporters of the ATP binding cassette (ABC) family in multidrug resistance: A review of the past decade. Cancer Lett. 2016; 370:153-64. DOI | PubMed
- Ingram WJ, Crowther LM, Little EB, Freeman R, et al. ABC transporter activity linked to radiation resistance and molecular subtype in pediatric medulloblastoma. Exp Hematol Oncol. 2013; 2:26. Publisher Full Text | DOI | PubMed
- Efferth T, Langguth P. Transport processes of radiopharmaceuticals and-modulators. Radiat Oncol. 2011; 6:59. Publisher Full Text | DOI | PubMed
- Leite JC, De Vasconcelos RB, Da Silva SG, De Siqueira-Junior JP, Marques-Santos LF. ATP-binding cassette transporters protect sea urchin gametes and embryonic cells against the harmful effects of ultraviolet light. Mol Reprod Dev. 2014; 81:66-83. DOI | PubMed
- Ishikawa T, Nakagawa H, Hagiya Y, Nonoguchi N, Miyatake S, Kuroiwa T. Key Role of Human ABC Transporter ABCG2 in Photodynamic Therapy and Photodynamic Diagnosis. Adv Pharmacol Sci. 2010; 2010:587306. Publisher Full Text | DOI | PubMed
- Yue H, Hu K, Liu W, Jiang J, Chen Y, Wang R. Role of matrix metalloproteinases in radiation-induced lung injury in alveolar epithelial cells of Bama minipigs. Exp Ther Med. 2015; 10:1437-44. Publisher Full Text | DOI | PubMed
- Zhou Y, Xia L, He ZS, Ouyang W, Z H, Xie CH. Modulation of matrix metalloproteinase-9 and tissue inhibitor of metalloproteinase-1 in RAW264.7 cells by irradiation. Mol Med Rep. 2010; 3:809-13. DOI | PubMed
- Kunigal S, Lakka SS, Joseph P, Estes N, Rao JS. MMP-9 inhibition downregulates radiation-induced NF-κ activity leading to apoptosis in breast tumors. Clin Cancer Res. 2008; 14:3617. Publisher Full Text | DOI | PubMed
- Jadhav U, Mohanam S. Response of neuroblastoma cells to ionizing radiation: modulation of in vitro invasiveness and angiogenesis of human microvascular endothelial cells. Int J Oncol. 2006; 29:1525-31. Publisher Full Text | PubMed
- Cruet-Hennequart S, Drougard C, Shaw G, Legendre F, Demoor M, Barry F, et al. Radiation-induced alterations of osteogenic and chondrogenic differentiation of human mesenchymal stem cells. PLoS One. 2015; 10:e0119334. Publisher Full Text | DOI | PubMed
