Introduction

Many radiological examinations are carried out with digital radiography (DR) such as for abdominal examination. The abdominal examination is frequently carried out to determine the function of secretion and excretion of both kidneys on Intravenous Pyelography (IVP) examination. According to Indonesian Basic Health Research (RISKESDAS) 2018 [ 1 ], the prevalence of chronic kidney disease increased from 2.0 to 3.8% of the Indonesian population, which caused a decline in kidney function. Chronic kidney disease is one of the leading causes of death worldwide, with a global standard-age death rate increasing by 36.9% per 100.000 [ 2 ]. The IVP examination includes reproductive organs. The International Commission on Radiological Protection (ICRP) reported that human reproductive organs are very sensitive to radiation and have to be protected. The weighted factor of the gonad is 0.08, i.e. the dose delivered to the gonad has contributing 8% of the effective whole-body dose [ 3 ]. Therefore, the radiation dose must be optimized according to the principle of as low as reasonably achievable (ALARA). One common method to reduce the radiation dose on the reproductive organs in the radiological examination is the used of the gonad shield [ 4 ]. It should be noted that the gonad shield is for reducing patient dose and not for medical workers, therefore assessment of resulted image quality is needed. It was reported that patient’s gonads influence the quality of radiological imaging because they obscure anatomical information [ 4 ]. Another study reported that the gonad shield reveals image degradation [ 5 ]. Therefore, some studies suggested not to use the gonad shield [ 6 - 10 ].

Development of the alternative gonad shield maintaining the image quality is essential. The effectiveness of the alternative gonad shield for dose reduction depends on the constituent material, the thickness of the shield, and the energy spectrum of the beam. Various alternative gonad shields have been produced with materials of Pb, non-Pb, and Pb combinations. The gonad shield made from bismuth (Bi) was able to reduce the radiation dose received by patients by 62%. However, the use of the Bi shield caused noisy image [ 11 ]. Organ shields from Silicone Rubber (SR)-Bismuth (Bi), SR-tungsten (W) and SR-Barium Sulfate (BaSO₄) have been reported as alternative gonad shields. At thicknesses of 1-2 mm, their radiation attenuation ratios (RAR) are 90-95% [ 9 ]. Nevertheless, the resulted image quality has not been discussed in the report [ 12 ]. Another alternative material for organ shield from SR-Pb has been reported [ 13 - 15 ]. Previously, the small percentage of Pb from 1-5 wt% in the SR-Pb has been used for reducing eye dose in the head CT examination [ 14 ]. This study aims to evaluate the effect of the gonad shield from the SR-Pb materials as composite materials with 5 wt% Pb percentage with various thicknesses on radiation dose and radiographic image quality in the abdominal examination using DR. It is hoped the alternative gonad shield is able to reduce the patient’s radiation while maintaining the image quality.

Material and Methods

Sample preparation, phantom position, and dose measurement

In this experimental study, the alternative gonad shield was synthesized from the Pb powder (Lead Acid), Silicone Rubber (RTV 52), catalyst (Bluesil catalyst), distilled water, and polyethylene glycol (Indrasari Chemical Store, Semarang, Indonesia). The gonad shield dimension was 27 × 17 cm² with various thicknesses of 2, 4, 6, 8 and 10 mm. The synthesis was performed using the sol-gel method. The advantage of this method is low processing temperature and possible to cast coatings in complex shapes [ 16 ]. The synthesis steps were as follows: Firstly, the Pb powder was dissolved with distilled water and polyethylene glycol solvent to prevent precipitation. After that, the SR and Pb solvents were mixed for 30 min. The results of mixed were sonicated for 30 min in an ultrasonic bath, then it was mixed again for 6 min while catalyst was added. The results of the mixture were poured into a mold that has been smeared with silicone oil and left to dry completely. Lastly, the developed shield was cut to resemble the shape of gonad shield for right and left ovaries.

The developed gonad shields were tested on the Digitaldiagnost C50 Philips Digital Radiography (Koninklijke Philips N.V., Japan) and an abdominal part of a PBU-50 anthropomorphic phantom (Kyotokagaku co., Ltd., Japan). For the radiation dose measurement, the SR-Pb was exposed with tube voltage of 77 kVp and the tube loading was 32 mAs based on abdominal examination. The collimator field was 40 × 45 cm² for anterior-posterior (AP) projection (Figure 1). This projection contributed the high absorbed dose to ovaries [ 17 ]. The Piranha detector (RTI, Sweden) was placed under the SR-Pb filter with the source to image-receptor distance (SID) of 100 cm and without using automatic exposure control (AEC). The dose measurement results from the piranha detector were displayed in the Ocean software.

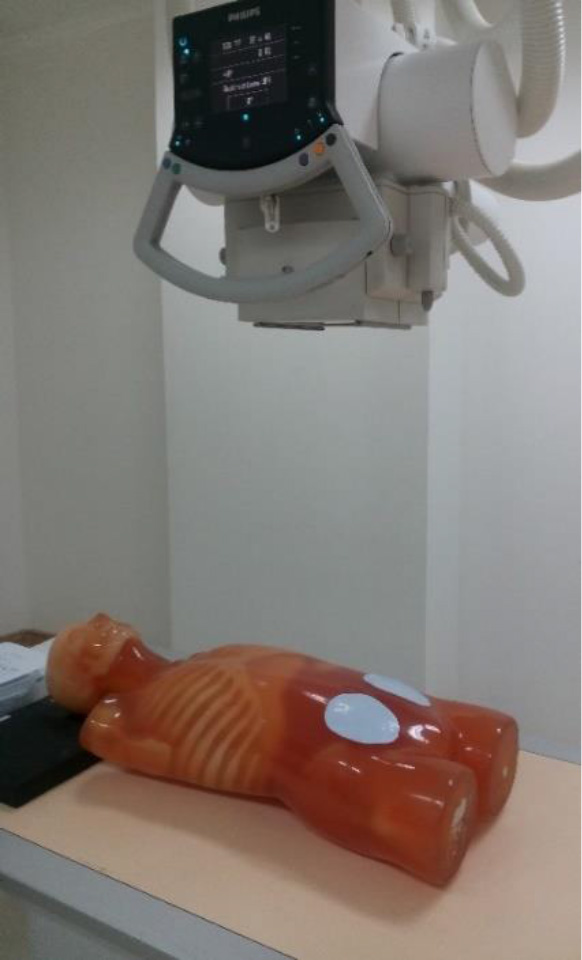

Figure 1. Research setting using a PBU-50 anthropomorphic phantom for anterior-posterior projection

Image quality assessment

Image quality assessment was performed by measuring the mean pixel value (PV), the signal-to-noise ratio (SNR) and contrast-to-noise ratio (CNR). The five-circular regions of interests (ROIs) were drawn on the abdominal image (Figure 2). The background ROI was selected in areas that were considered uniform and did not overlap with other organs (Figure 2). The four ROIs were located at the left and right regions [ 18 ]. The SNR was calculated as comparison between PV and the standard deviation of the background ROI (the fifth circular region). The CNR was calculated as comparison between different mean PVs of four ROIs and the root square of the mean standard deviation of pixel values at four ROIs and a ROI of background [ 19 - 22 ].

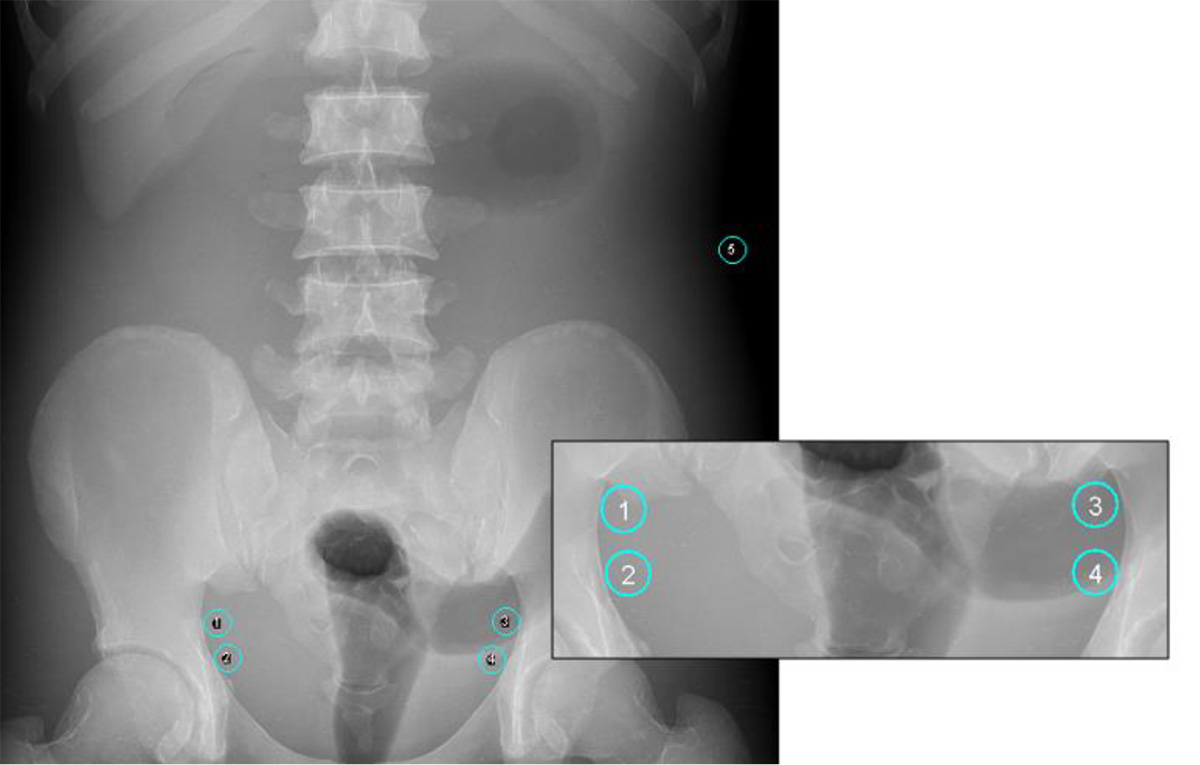

Figure 2. Regions of interests (ROIs) positions for evaluation of the Silicone Rubber-Lead (SR-Pb) gonad shield in the abdominal image. The ROIs were placed at the left and right ovaries (represented by ROI number 1, 2, 3, and 4). The fifth ROI was for background area.

Results

Radiation dose

The radiation doses for various SR-Pb thicknesses are shown in Figure 3. The radiation dose decreased with the increasing thickness of the SR-Pb. The percentage of the decreasing radiation dose was 22.8% for 2 mm SR-Pb, 42.3% for 4 mm SR-Pb, 51.4% for 6 mm SR-Pb, 55.3% for 8 mm SR-Pb, and 66.9% for 10 mm. The dose reduction due to the use of the lead gonad shield (0.5 mm) was greater, i.e. 89.4%.

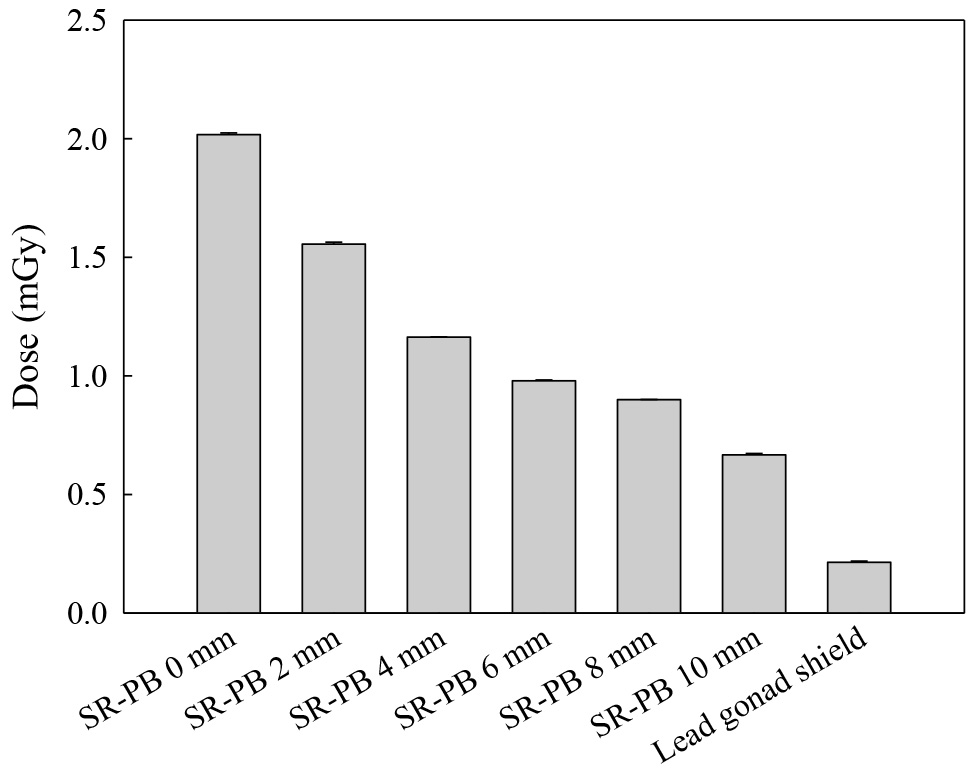

Figure 3. The radiation dose of the Silicone Rubber-Lead (SR-Pb) for various thicknesses and lead gonad shield.

Image Quality

The resulted images from the use of the SR-Pb and lead gonad shield are shown in Figure 4. It shows that the use of lead gonad shield totally blocks the image at organs that were protected. In contrary, the use of the 6 mm SR-Pb makes the image clearer and the image quality is relatively maintained. The parameters of image quality assessment were obtained from the ROIs of the abdominal image using the ImageJ software (National Institute of Health, Bethesda, MD), such as PV, noise, and different organ-background pixel value for measuring SNR and CNR. Figures 5a, b and c show the mean PV of ROIs (right and left ovaries), different organ-background pixel and noise values. It can be seen that the noise increases with the incremental thickness of the SR-Pb. However, the lead gonad shield provides significantly higher mean PV, different organ-background pixel value and noise value.

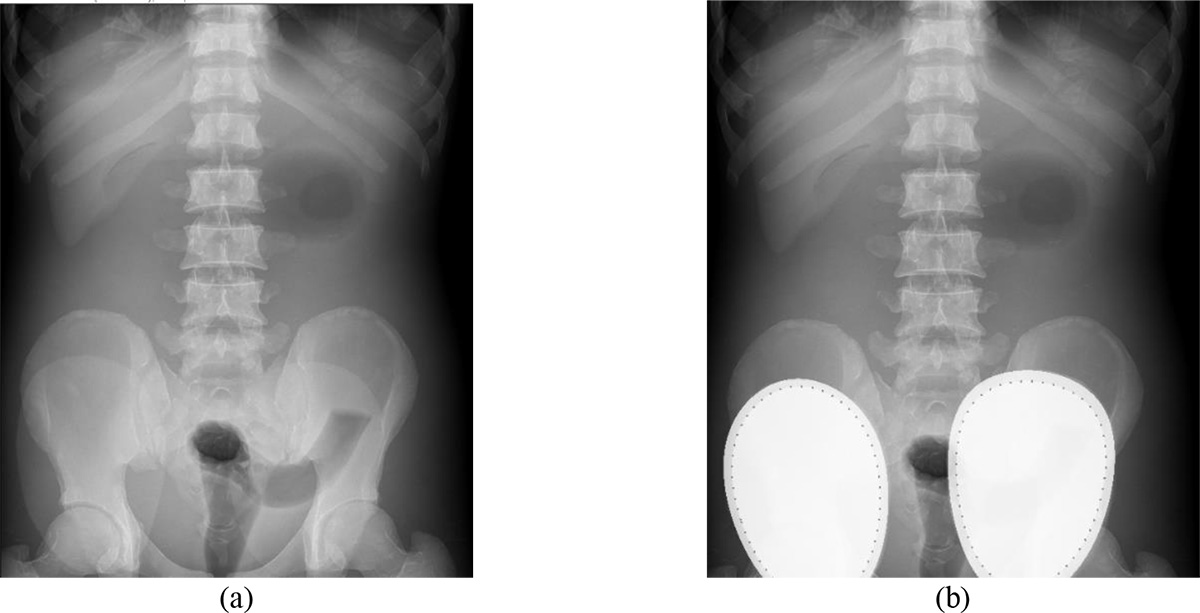

Figure 4.Comparison of abdominal images between: (a) Using 6 mm Silicone Rubber-Lead (SR-Pb), and (b) using lead gonad shield.

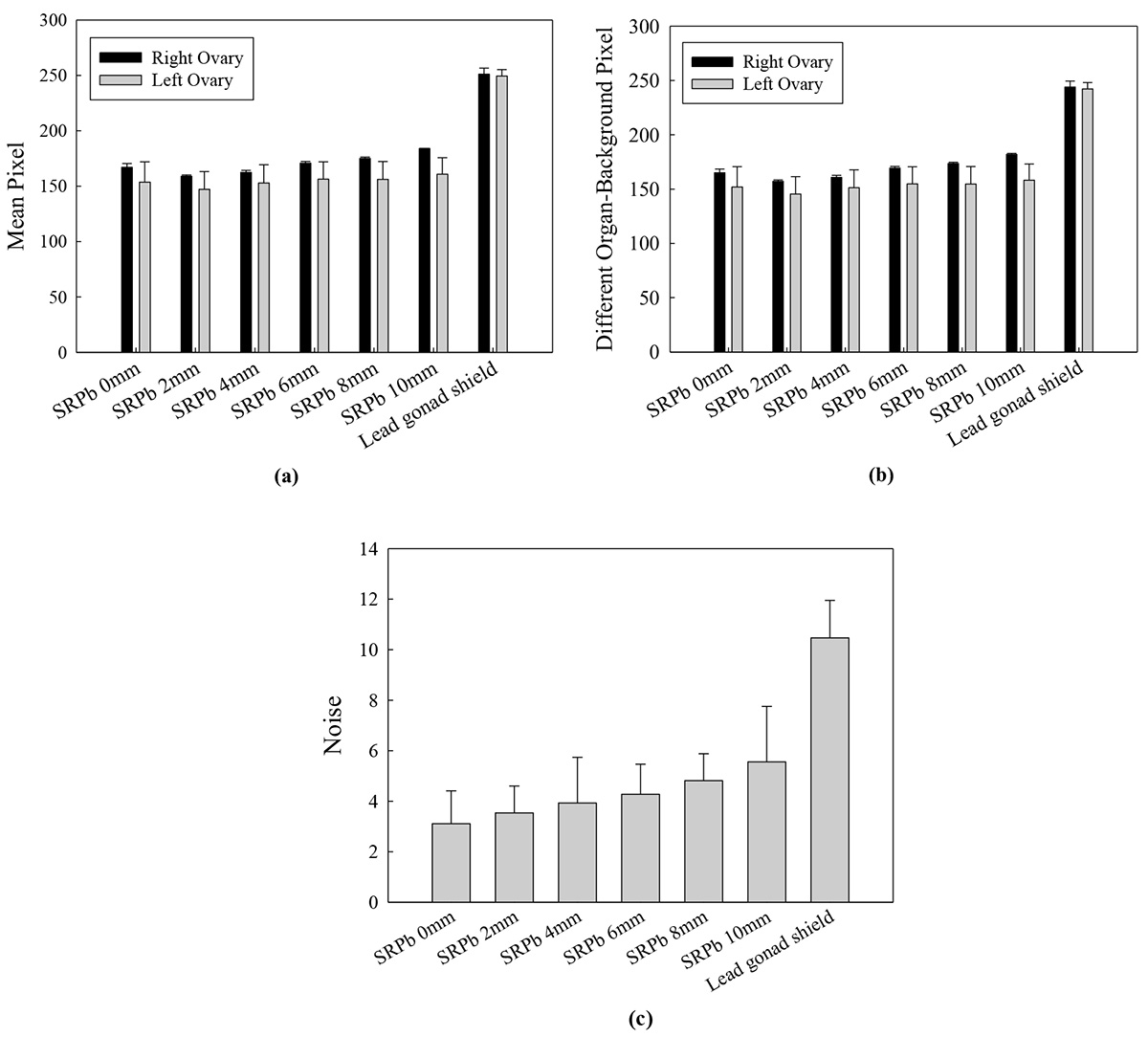

Figure 5. (a) The mean pixel value of the region of interest (ROI) (right and left ovaries) by using the Silicone Rubber-Lead (SR-Pb), (b) the different organ-background pixel value of the ROI (right and left ovaries) by using the SR-Pb, and (c) the noise value of the ROI (right and left ovaries).

The percentage of the increasing mean PV was about 8% for the right ovary, and 5% for the left ovary. The percentage of the increasing different organ-background pixel value was about 8% for the right ovary, and 4% for the left ovary (Figures 5a, b and c). Figure 5(c) shows the noise value increases with the increase of the SR-Pb thickness. The percentage of the increasing noise value was about 13.8-78.6%. However, increases of the PV and noise in the SR-Pb were lower than in the lead gonad shield. The mean PV, different organ-background pixel values, and noise value in the lead gonad shield are about 51.6, 48.59 and 236.4%, respectively.

The SNR and the CNR of the image before and after using the gonad shields are depicted in the Figure 6. Figure 6(a) shows the decrease of the CNR value of the ROIs (right and left ovaries) using the lead gonad shield, and the percentage of the decreased CNR was 34.15% for the right ovary and 33.13% for the left ovary. The decreasing percentage of the CNR using the SR-Pb was about 7.14-22.2% for the right ovary, and 9.86-29.15% for the left ovary (Figure 6(a)). Figure 6(b) shows the decreasing SNR of the SR-Pb and the lead gonad shield. The percentage of the decreased SNR of SR-Pb was 16.38-38.37% for the right ovary, and 15.84-41.41% for the left ovary. The CNR and SNR of the ROIs image decreased along the increasing SR-Pb thickness. The decreasing percentage of the SNR using lead apron was about 55.32% for the right ovary, and 51.76% for the left ovary. Thus, the lead gonad shield has significantly higher values of decreasing CNR than the SR-Pb.

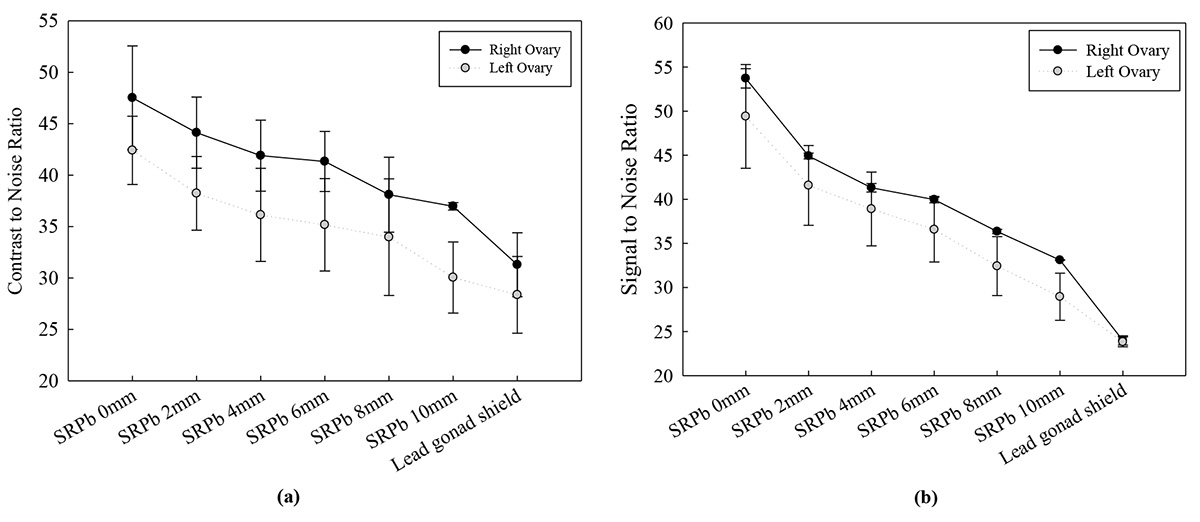

Figure 6. (a) The contrast to noise ratio (CNR) of the regions of interests (ROIs) (right and left ovaries) using the SR-Pb and lead gonad shield, and (b) the signal to noise ratio (SNR) of the ROIs (right and left ovaries) using the Silicone Rubber-Lead (SR-Pb) and lead gonad shield

Discussion

This study investigated the effect of the SR-Pb thickness as alternative gonad shields on the dose reduction and image quality in the abdominal examination. This study revealed that the percentage of the reduction radiation dose was 66.9% for 10 mm SR-Pb. Compared with the lead gonad shield, the SR-Pb performance to reduce radiation exposure was lower. Nevertheless, the SR-Pb has still had a good performance to reduce radiation exposure. The automatic exposure control (AEC) was not used in this study. Since, the combination of gonad shield with the AEC leads to uncertainty in dose reduction, i.e. it can increase or decrease dose received by patients [ 23 ].

Recently, various gonadal shields were reported. Karami et al., showed that bismuth shield can reduce the dose radiation to ovaries by 61.7% [ 11 ]. With the reduction of 66.9%, it means that the dose reduction using SR-Pb is quite high; still, it can be used for clinical examination. The goal of diagnostic imaging should be obtain the diagnostic information with lowest possible radiation dose [ 24 ]. The result of the current study shows that the use of the SR-Pb provided better image quality than the lead gonad shield. Consequently, SR-Pb can be used as an alternative organ shield without decreasing image quality, i.e. obscuring diagnosis of abnormality. Compared to the reference image, the noise value increased with the increasing of SR-Pb thickness.

The SNR and CNR values for both ovaries decreased with the increase thickness of the SR-Pb. It indicates that the image quality is slightly corrupted. However, the image quality of using SR-Pb compared to the lead gonad shield is significantly better. At 2 mm, the CNR value decreased more (7.14% for the right ovary and 9.86% for the left ovary) than the reference image. Moreover, for 6 mm SR-Pb, the CNR value decreased about 13.03% for the right ovary and 17.07% for the left ovary. The decreasing SNR value of 2 mm SR-Pb was about 16.38% for the right ovary and 15.84% for the left ovary. At 6 mm SR-Pb, the decreasing SNR values for the right and the left ovaries were about 25.59% and 25.99%, respectively.

The deficiency in our study is an existence of artifact on the images from SR-Pb with thicknesses of 8 mm and 10 mm. However, the artifact is not found in the SR-Pb at 6 mm and less. One advantage of the SR-Pb gonad shield is its flexibility, i.e. it follows the contour of the patient’s body [ 14 ], especially in the abdomen part.

Conclusion

The SR-Pb as a gonad shielding led to high dose reduction. The dose reduction increases with the increase of SR-Pb thickness. The maximum dose reduction was 66.9% for 10 mm SR-Pb. The performance of SR-Pb was less than lead gonad shield for dose reduction. However, SR-Pb has capability to reduce dose without significantly deteriorating the image. The image quality was maintained for the SR-Pb compared to the lead gonad shield. The use of SR-Pb caused decrease both of CNR and SNR. The decreasing of CNR values of the 6 mm SR-Pb were 13.03% and 17.07%, for the right and left ovaries, respectively. The decreasing of SNR values were 25.59% for the right ovary and 25.99% for the left ovary. Due to the use of lead gonad shield, the percentages of decreasing CNRs were 34.15% for the right ovary and 33.13% for the left ovary. In addition, the percentages of decreasing SNRs were 55.39% for the right ovary and 51.76% for the left ovary. However, compared to lead gonad shield, both SNR and CNR of the SR-Pb were greater. Therefore, SR-Pb has potential to be used as an alternative organ shield, especially as gonad shield for abdominal scan in the IVP examination.
