Introduction

In the last few years, computer-based algorithms developed for automatic analysis of retinal images to detect various retinal lesions, segment retinal vessels and, particularly, for Optical Coherence Tomography (OCT) volume analysis for detection of intraretinal cysts or subretinal fluid and choroidal layer segmentation [ 1 - 5 ]. The choroid, playing a significant role in the physiology of the eye, is a layer between the sclera and the retina. The change in choroidal thickness depends on age and the increased levels of myopia in adults [ 6 ]. Moreover, different pathologies of the eye such as diabetic retinopathy can cause some alterations in the thickness of the choroid [ 6 ]. One of the common choroidal imaging techniques is indocyanine green angiography (ICGA), (Figure 1), utilizing near-infrared (NIR) for both excitation and detection in order to yield much greater penetration rate than fluorescein angiography. But this technique contains some disadvantages, including low depth contrast and the need for the dye injection which is an invasive procedure and may have some side effects [ 7 ]. To solve these issues, a new imaging technique, named OCT, (Figure 2), was introduced by Huang and Colleagues in 1991 [ 8 ] that is a noninvasive and noncontact technique by which the images of human retina become provided [ 9 ]. Time-domain OCTs (TD-OCT), which are using a moving reference mirror in order to measure the reflection time of the light first became publically available in 2002-2003. The mechanical movement of the reference mirror causes reduction in image quality and increases the total processing time [ 10 ]. To overcome the mentioned defects of TD-OCTs, Spectral domain OCT (SD-OCT) was introduced in 2006. An SD-OCT uses low-coherence interferometer with a high-speed spectrometer detecting the echoes of light simultaneously by measuring the interference spectrum, instead of moving parts in TD-OCTs. Therefore, in SD-OCTs, the image quality, density of volume scans and the resolution of the images increase in comparison with TD-OCTs. Because of the relatively high signal-to-noise ratio of Spectral-Domain Optical Coherence Tomography (SD-OCT) compared with time-domain OCT, better visualization of fine detail in deeper layers of the choroid and any part of the retina was seen [ 10 ]. In addition, the Enhanced Depth Imaging (EDI) OCT has been used in recent works of choroidal segmentation, places a zero delay line on the choroid to obtain high-resolution cross-sectional images of the choroid [ 11 ]. Nowadays, most of the ophthalmologists have to manually define the boundaries of the choroid for measuring of its thickness and there is not available software for the segmentation of choroid, on current OCT systems [ 12 ].

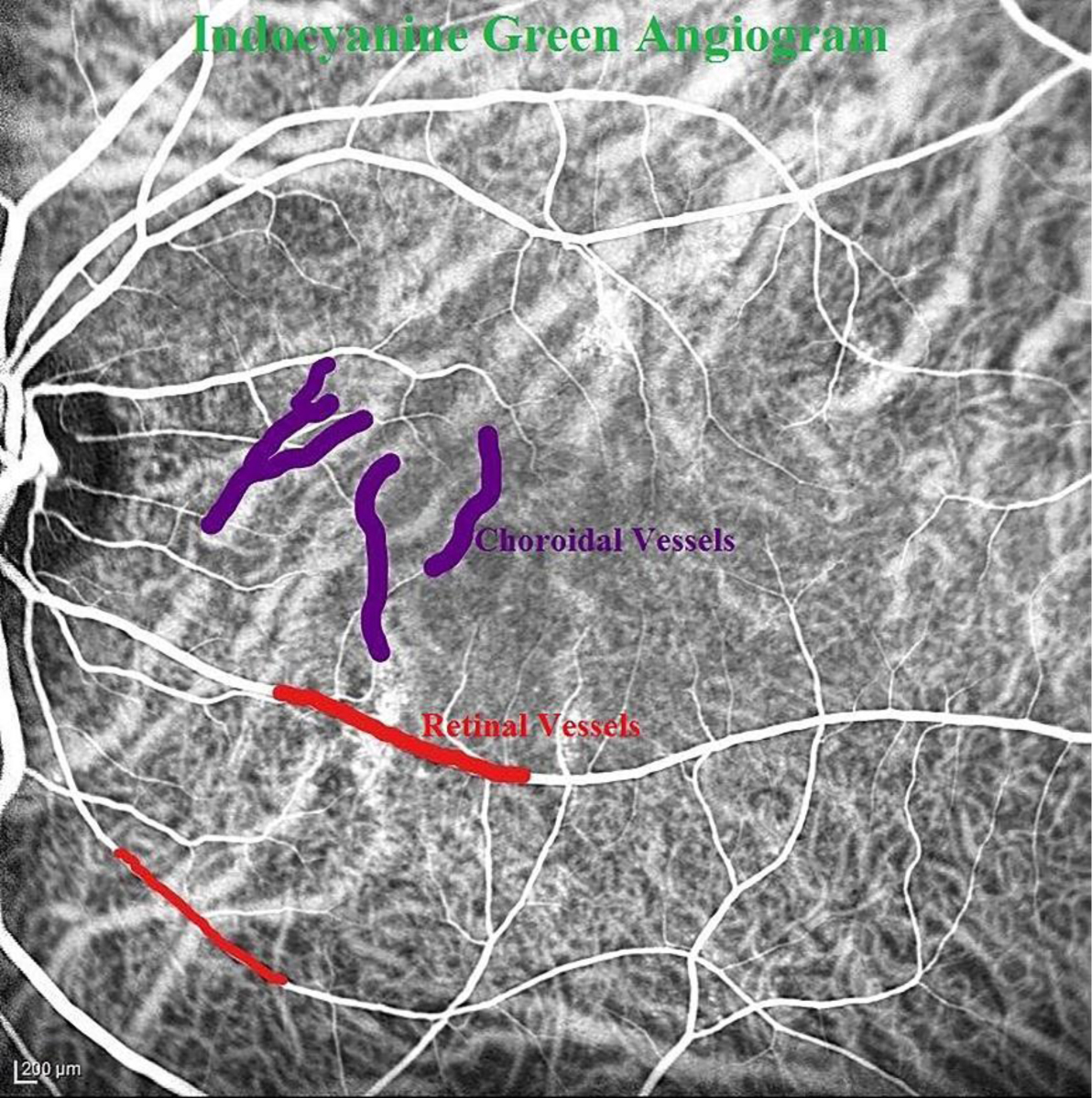

Figure 1. A layer of the posterior part of the eye, imaged by Indocyanine Green Chorioangiography (ICG). The choroid layer is deeper than the retina and contains a unique network of blood vessels (8 bit image).

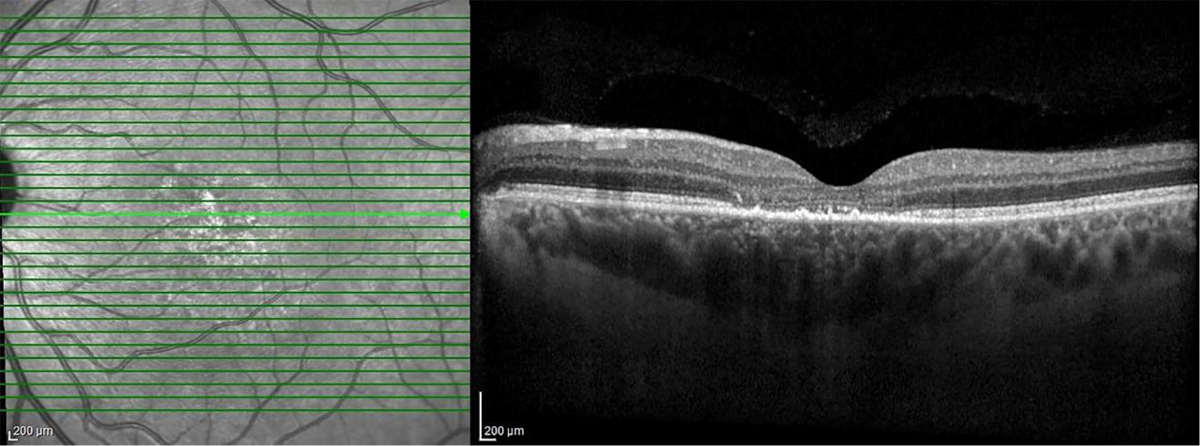

Figure 2. Optical Coherence Tomography (OCT) is a technique, used in ophthalmology and optometry for imaging of the retina (8 bit image).

Like many other things, automatic segmentation of choroidal boundaries has its own difficulties due to low contrast ratio [ 13 ]. The objective of this paper is to review the different techniques for automatic segmentation of choroidal thickness and to introduce the best existing technique according to the gained results of articles.

This paper is organized as follows: 1) We gave a brief introduction of this study. 2) We describe the choroidal character­ization in various retinal diseases. 3) The available techniques for automatic segmentation of choroidal region are introduced. 4) Available metrics for choroidal thickness measurement have reviewed. 5) The paper is discussed. 6) The paper is concluded.

Choroidal characterization in various retinal diseases

1- Choroidal thickness in normal eyes

The choroidal thickness was measured manually from the outer boundary of the Retinal Pigment Epithelium (RPE) to the inner border of the sclera [ 14 ] and contained regional changes in the posterior pole and changed according to the location of the macula. The choroidal layer is the thickest at the subfoveal location, the thinnest nasally, and the thinner temporally [ 15 , 16 ].

Age is another effective variable that should be considered when comparing the thicknesses of the choroid [ 16 , 17 ]. In normal eyes, the range of subfoveal choroidal thickness is on average 287-332 µm [ 15 - 17 ]. Although the changes in choroidal thickness in normal eyes may not occur at the same speed, thinning of the choroid happens with a rate of 1.56 µm per year in the area of subfoveal location [ 16 ]. In addition to the age, daily fluctuations in choroidal thickness can be related to systolic blood pressure, refractive error, and axial length [ 18 ].

2- Choroidal thickness in Age-related Macular Degeneration (AMD)

The origin and development of the disease procedure in AMD is totally unclear. With senescence, lipoid deposition in the choroid, Bruch’s membrane, and sclera increased [ 19 ]. The reduction of choroidal perfusion and increase of resistance to choroidal blood flow can be some of the results of this deposition, which may lead to the AMD progression [ 20 ]. There are conflicting reports about the choroidal thickness in early AMD patients [ 21 , 22 ]. In a study, choroidal thickness has been found similarly between the both groups of 16 eyes in an age-matched control and 16 eyes with early AMD [ 22 ]. In the other study, it has been shown that the average choroidal thickness of 17 Korean eyes with early AMD was obviously less than the age-matched control eyes [ 21 ]. In Manjunath et al. showed that the choroidal thickness of eyes with AMD, on average, was thinner than normal controls. In addition, the eyes with nonexudative AMD were thicker than eyes with exudative AMD [ 23 ].

3- Choroidal thickness in Diabetic Retinopathy (DR)

Although diabetes mellitus (DM) affects the choroid [ 24 ], there is not enough clinical information about diabetic choroidopathy. It seems that patients, suffering from diabetic retinopathy, have a thinner choroid [ 25 - 29 ]. In a study, the thickness of choroid in normal control eyes did not have any difference with eyes suffering from nonproliferative diabetic retinopathy. Amazingly, treated eyes suffering from proliferative diabetic retinopathy or diabetic macular edema had thinner choroids than their normal peers [ 28 ] because choroidal blood flow (CBF) decreased in diabetic patients [ 30 ]. Querques et al. [ 27 ] proposed that the decrease in thickness of choroid is related to a decreased CBF. It has shown that; as compared with normal controls, the inferior and central choroid were thinner in diabetic eyes. In this study, the degree of diabetic retinopathy also indirectly correlated with thickness of the choroid, but the thickness of the choroid in diabetic eyes without retinopathy was as similar as the controls [ 25 , 26 ]. Still, what causes the thinning of the choroid is not clear because thinning of the choroid increases the amount of choriocapillaris atrophy [ 26 ]. Enhanced Depth Imaging Optical Coherence Tomography (EDI-OCT) imaging of choroid could be a functional technique to study the participation of the circulation of the choroid to the general visual impairment [ 14 ].

4- Choroidal thickness in glaucoma

The imaging of the human optic nerve head by EDI-OCT, could be helpful in investigation of the origin and development of glaucoma [ 31 , 32 ]. Studies on a group of healthy people show that the central lamina cribrosal thickness has a relationship with age without any relationship with thickness of central cornea or axial length [ 33 ]. Besides, comparing the lamina cribrosa with normal controls or glaucoma suspects shows that the lamina cribrosa is thinner in glaucomatous eyes [ 31 , 34 ].

5- Thickness of the choroid in patients with Central Serous Chorioretinopathy (CSC)

It seems that CSC comes from extremely high permeability of choroidal vascular [ 35 ]. Multiple studies have shown that the thickness of the choroid increases in CSC [ 36 - 40 ]. In a study, to measure the volume between the segmented lines, at first choroidal macular, maps had been constructed by manually segmenting the thickness of the choroid and then the automated software had been used [ 37 ]. Furthermore, it was shown that the increased thickness of the choroid seen in CSC was not limited to focal points and was a diffuse phenomenon throughout the macular area [ 37 ]. The most of time, the thickness of the choroid increases in both the fellow and the affected eye [ 36 , 41 ]. These findings are consistent with the findings of the indocyanine green angiography (ICGA), suggesting bilateral vascular hyperpermeability of the choroid even in the eyes without subretinal fluid [ 42 ]. Thickness of choroid decreased, after treatment of active CSC with either half-or full-fluence photodynamic therapy [ 37 , 39 , 40 ]. Based on the choroidal thickness in EDI-OCT images, it can be concluded that sildenafil citrate may be a risk factor for CSC because it increases the thickness of the choroid [ 43 , 44 ].

6- Choroidal thickness in Diabetic Macular Edema (DME)

In a study carried out by Tamer et al. the subfoveal choroidal thickness (SFCT) was evaluated in DME. OCT images of 106 eyes, were used in nonrandomized case control study, which 37 and 69 of the cases were healthy and suffering from DME, respectively. In the DME group, the SubFoveal Choroidal Thickness (SFCT) was considerably thinner (193.4 μm) than the control group (282.6 μm) (P =0.001). Furthermore, the SFCT was considerably related to central foveal thickness (CFT) and vision, in the DME group (P <0.05). It can be concluded that the DME is related to a notable decrease in SFCT [ 45 ].

7- Choroidal thickness in Multiple Sclerosis (MS)

Ebru Esen et al. showed that EDI-OCT images of patients with multiple sclerosis (MS) were used to evaluate the thickness of the choroid. The sixty eyes of 30 healthy subjects and 68 eyes of 34 MS patients were evaluated in this observational comparative study. The mean SFCT in MS patients was considerably reduced (310.71 ± 61.85 μm) in comparison with healthy controls (364.85 ± 41.81 μm) (p < 0.001). In MS patients, the reduced thickness of choroid was related to longer duration of disease (r = –0.28, p = 0.019) [ 46 ].

Automatic segmentation methods of choroidal thickness from OCT images

There are several considerable advantages of automatic segmentation of choroidal thickness over manual segmentation. From viewpoint of experts, automatic segmentation is time-saving and has high reproducibility and zero intra- and inter-observer variability [ 47 ]. Observing the OCT images, it is clear that the manual segmentation of the choroid has intricate process, especially for Outer Choroidal Boundary (OCB) detection because of its weak border features and low contrast; an example of automatic and manual segmentation results has been shown in Figure 3 [ 6 ].

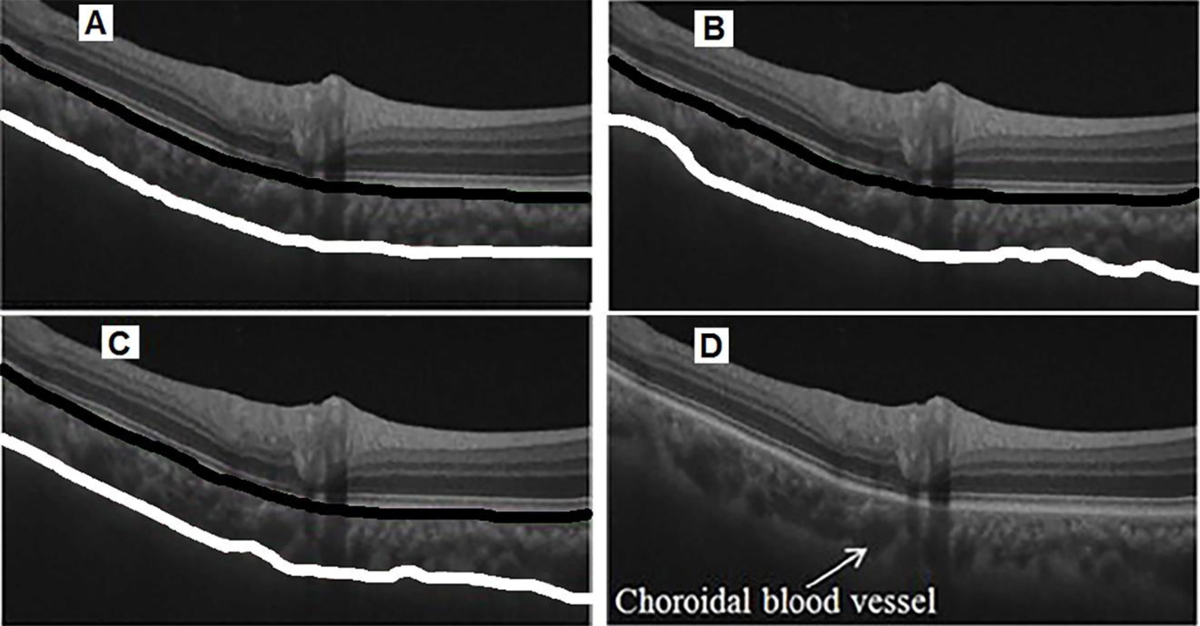

Figure 3. (A) Specialist 1. (B) Specialist 2. (C) Graph theory method. (D) Original image (8 bit image), [Adapted] with permission from [Chen Q et al., 2015] © The Optical Society [ 48 ].

Vedran Kajić et al. presented a two-step statistical model based on shape and texture for automatic choroidal segmentation of pathologic and normal eyes. A new dynamic programming method was used to detect the location of the choriocapillaris boundary, RPE and Bruch’s membrane. The choroidal–scleral interface (CSI) was segmented by the use of statistical model. In the other words, they segmented the CSI and RBC boundary by the use of neural network, convex hull, active appearance model and Dijkstra’s shortest path. In order to find the shortest path between nodes in a graph, the algorithm of Dijkstra’s shortest path is used that was introduced by Edsger W. Dijkstra in 1956. This algorithm has different types; the original type of Dijkstra finds the shortest path between two nodes, producing a shortest path tree, fixes a single node as the source node in the graph and finds shortest paths from all other nodes to the source [ 49 ]. This algorithm was strong even in presence of speckle noise and other artifacts. 871 B-scans of 12 eyes, which were segmented manually, were evaluated and the results showed an average error rate of 13%. It was first-ever that an automatic method for segmentation of the choroid successfully implemented in the wide data set. The advantage of this method was its accurate boundary detection even in the existence of eye diseases on a wide dataset. However, it needs 30s for processing of each image and also requires large training set to include all possible variations [ 50 ].

In a study by Teresa Torzicky et al. a new tissue specific polarization contrasts mechanisms based on method presented to automatic segmentation of the choroidal thickness in the human eye, using a swept source polarization sensitive optical coherence tomography (PS-OCT), operating at a center wavelength of 1040 nm. The technique of thresholding based on the degree of polarization uniformity (DOPU) and the position of the retardation was used, so that the RPE, (the anterior boundary of the choroid) was first segmented based on depolarization, then the CSI was found based on the double refraction of the sclera. The experimental results on five healthy eyes showed that the mean standard deviation of thickness measurement was 18.3 μm. This method was fast and simple with a good repeatability but the proposed method was evaluated on a small PS-OCT images and the accuracy of the boundary segmentation was not analyzed [ 51 ].

Jing Tian et al. introduced an accurate and fast algorithm in order to automatically measure the thickness of the choroid. The upper boundary of the choroid was detected using graph-based dynamic programming and the lower boundary was detected by looking for the biggest value of the gradient above RPE. The time of processing for each image was about 2s and the mean Dice’s coefficient on 10 EDI-OCT images was 94.3%, which showed great compatibility with manual labeling. Although this method has good dice coefficient index, it does not perform properly in low quality images or pathological states [ 52 ].

Li Zhang et al. proposed a 3D method for quantification of choriocapillaris-equivalent thickness of the macula and choroidal vasculature thickness and choroidal vessels segmentation, on 3D SD-OCT images of a 24 normal subjects while each subject was imaged twice. The choroidal layer was automatically segmented using graph based multilayer segmentation approach [ 53 ]. The average choriocapillaris equivalent thickness was 23.1 µm and average thickness of the choroidal vasculature in normal subjects was 172.1 µm. Moreover, the Dice coefficient was 0.78 ± 0.08. It can be concluded that this proposed method has illustrated good reproducibility and also help to diagnosis the eye diseases affecting choroid, but it contains three limitations as follows: the study of reproducibility in normal subjects, the use of relatively small number of subjects and the achievement of successful segmentation results for two repeat scans in just over 24/43 subjects [ 54 ].

Zhihong Hu et al. introduced an automatic choroidal layer segmentation algorithm in SD-OCT volume scans using graph-based multistage approach. Thirty randomly chosen macular SD-OCT volumes (1024×37×496 voxels, Heidelberg Spectralis) were obtained from 10 subjects with non-neovascular AMD and 20 healthy subjects. Experimental results showed that the absolute and mean differences between the manual segmentation and automated algorithm for the choroid-sclera junction (CSJ) were 21.39 ± 10.71 µm and -3.90 ± 15.93 µm and for the outer RPE boundary, were 3.15 ± 3.07 µm and -0.74 ± 3.27 µm. There was an excellent agreement between the manual and automatic algorithm of choroidal segmentation in both of the eyes with non-neovascular AMD and normal eyes but one of the disadvantages of this study was that only use of anisotropic SD-OCT volumes [ 55 ].

In a study carried out by Sieun Lee et al. EDI-OCT images of 44 patients with nonneovascular AMD were used and the reproducibility and mutual agreement of automated algorithm in EDI-OCT images of eyes with nonneovascular AMD were compared with the subfoveal choroidal thickness measurements by expert raters. Subfoveal thickness of the choroid was segmented manually by two specialists and automatically by the proposed graph–based method. The automated and manual measurements of the choroidal thickness were compared with drusen area, mutual agreement and reproducibility. The mean subfoveal thickness of the choroid was 209 ± 53 μm for the automated algorithm, 246 ± 63 μm for the first rater and 214 ± 68 μm for the second rater. This algorithm generally gained smaller choroidal thickness than the raters and its repeatability was analogous to the manual measurements. It concluded that automatic measurement of subfoveal choroidal thickness can be used in clinical trials and practices, with the possibility of reducing labor cost [ 56 ].

Huiqi Lu et al. is presented a new automated choroidal segmentation method which automatically segments the Inner Choroidal Boundary (ICB) using a two-step fast active contour model and then allows a real-time human-supervised automated segmentation on the Outer Choroidal Boundary (OCB). To evaluate the agreement between automated and manual measurements, Dice’s coefficient (DSC) was evaluated on 30 images of diabetic patients. The mean DSC value was 92.7% (standard deviation 3.6%) in the range of 85.5% to 98.1%. The experimental results demonstrated that this method can achieve high segmentation accuracy and also one of the advantages of this method is that this method can also segment the choroidal layer in the EDI OCT images of other OCT devices [ 12 ].

In a study by David Alonso-Caneiro et al. for segmentation of the ICB and OCB, a graph-search based method was presented. The OCT images were denoised, and enhanced in preprocessing step. The OCB detection algorithm was based on graph-cut, Dijkstra’s shortest path and a dual brightness probability gradient while the ICB was detected based on a simple edge filter and a directional weight. The data sets consist of 1083 B-scans of pediatric and 90 B-scans of adult population. The mean absolute error (MAE) was 12.96 µm (SD 9.00 µm) for pediatric and 16.27 µm (SD 11.48 µm) for adult, also the mean dice coefficient (mean DC) was 97.3% (SD 1.5%) for pediatric and 96.7% (SD 2.1%) for adult. As shown in Figure 4, the experimental results showed that, this method provided powerful detection of the choroidal boundaries. The advantages of this method are high repeatability, high accuracy and its evaluation on a large dataset from adult and pediatric populations, but their proposed method has been tested only on high quality dataset [ 6 ].

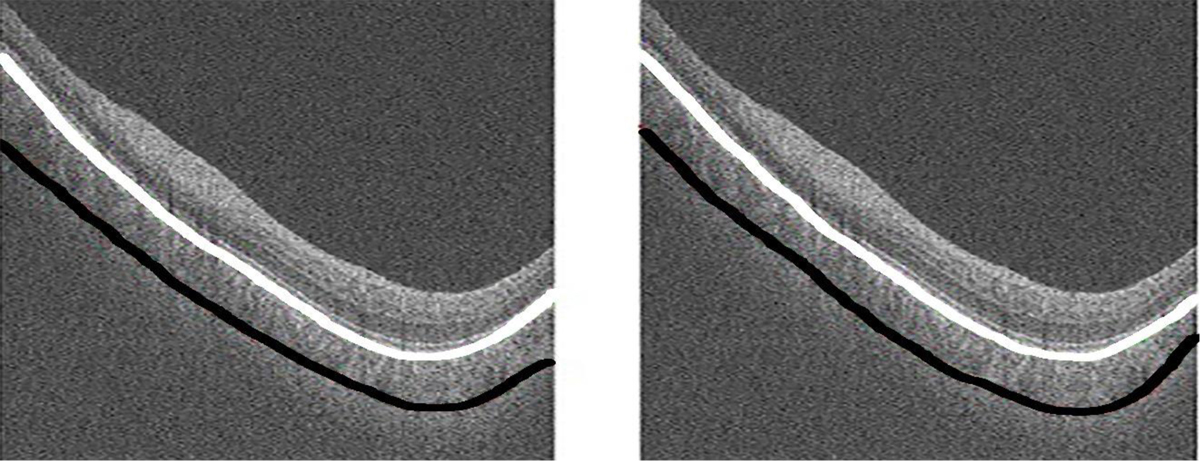

Figure 4. Right column shows the automatically segmented choroidal boundaries and left column shows the original B-Scan images. White refers to the automatic segmentation of the Outer Choroidal Boundary (OCB), and black refers to the automatic segmentation of the Inner Choroidal Boundary (ICB) (8 bit image), [Adapted] with permission from [Alonso-Caneiro D et al., 2013] © The Optical Society [ 6 ].

In a study by Danesh et al. they used a texture-based algorithm in order to segment the choroid and dynamic programming to determine the location of the RPE. Furthermore, they segmented the Bruch’s membrane (BM) by searching the pixels with the biggest gradient value below the RPE. Moreover, the wavelet based features to create a Gaussian mixture model (GMM) were used to segment the CSI. This algorithm was tested on 100 EDI OCT images and also compared with manual segmentations. The experimental results exhibited an unsigned error of 9.79 ± 3.29 pixels for choroid detection and 2.48 ± 0.32 pixels for BM extraction. This study represents that this method is accurate and efficient on the good quality images but it does not perform properly on the images with low quality and eye disease [ 8 ].

In a study by Bianca S. Gerendas et al. the data set consists of the SD OCT scans from 284 eyes of 142 patients with Diabetic Macular Edema (DME) and from 20 controls. The thickness of the choroid was analyzed using the graph-based method called the Iowa. The experimental results showed that total choroidal thickness was reduced in DME (175±23 µm). They are concluded that the automated segmentation method is a reliable way in order to evaluate the thickness of choroid in eyes with DME and in comparison to other state of the art studies, the advantage of this method is that usually only 1 single subfoveal measurement is used, but this study is evaluated over 65 000 available scanning points from the entire available B-scans set [ 57 ].

N. Srinath et al. used structural similarity (SSIM), adaptive Hessian analysis and level set technique in order to automatic segmentation of choroid. Experimental results were presented using SDOCT images and showed that the proposed method hugs choroid vessels while the manual segmentations were smooth curve below them [ 58 ].

In a study by Kiran Kumar Vupparaboina et al. tensor voting, structural similarity index, and eigenvalue analysis of the Hessian matrix were used to automatically segment choroidal thickness from SD-OCT images. Manual and automated segmentation results on 485 B-scans, matched visually. Moreover, the correlation between automated and manual method was greater than 99.6%. As shown in Figure 5, the results of automated choroidal volume estimation were in close agreement with that of manual methods. The proposed method was evaluated on a large dataset from the adult population with high correlation with manual segmentation and high repeatability, but it takes more evaluation time where tensor voting accounts for about 70% of the computation [ 59 ].

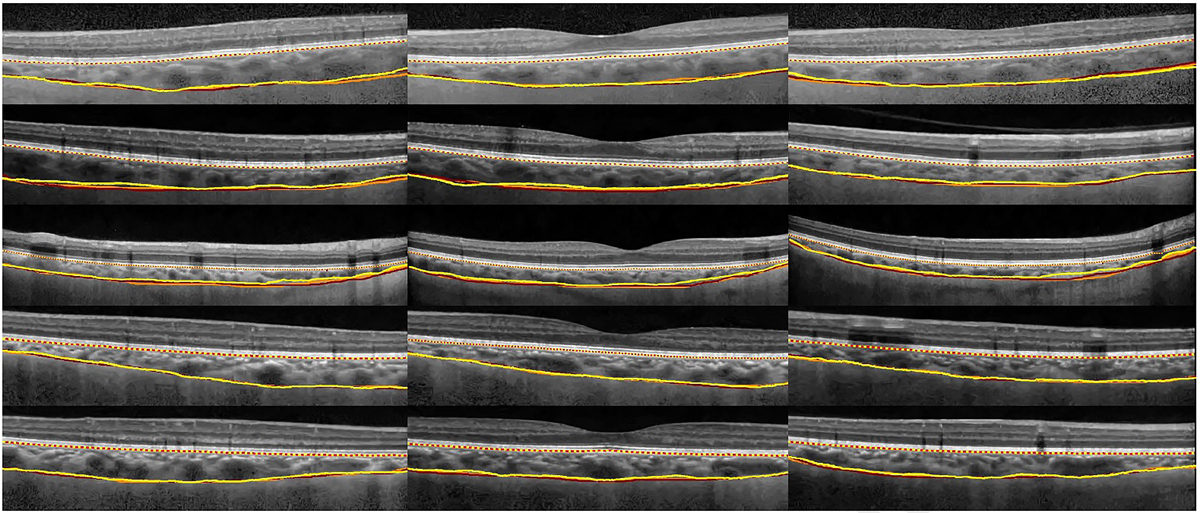

Figure 5. Yellow refers to automated segmentation; orange and maroon refer to two manual segmentations (8 bit image). Reprinted from; Vupparaboina KK et al, Comput Med Imag Graph. 2015;46:315-27. Copyright (2021), with permission from Elsevier [ 59 ].

Qiang Chen et al. proposed an automated method for choroid segmentation from HD-OCT images, including the segmentation of BM and CSI. They used thresholding, gradual intensity distance, graph min-cut-max-flow and the energy minimization technique. The mean overlap ratio and choroid thickness difference between this method and manual segmentations was 85.04% and 6.72 μm. Quantitative and qualitative results with 212 HD-OCT images showed high segmentation accuracy for both of the normal and abnormal cases [ 48 ]. Besides, Tian et al. showed that this method was preferable to the proposed method [ 13 ]. The disadvantage of this method is that the detection of BM based on thresholding will not work for all OCT images containing pathology.

Fei Shi et al. proposed an automated 3D method for choroidal segmentation, including the segmentation of the CSI and the Bruch’s membrane (BM). Two ancillary borders are found using modified canny operators. The primary CSI and the BM were segmented using 3D gradient-based graph search method. The CSI boundary was refined by adding a regional cost, calculated from the wavelet-based gradual intensity distance. To evaluate the automatic segmentation accuracy, reproducibility test was performed and results on 32 normal eyes were compared with manual segmentations. The mean difference of choroidal thickness from the manual segmentation was 19.16 - 4.32 μm. In addition, the volume quantification reproducibility was high statistically and the segmentation error was remarkably smaller than the interobserver variability. As shown in Figure 6, both qualitative and quantitative analyses demonstrated that this segmentation method had a good performance [ 60 ].

Figure 6. Black and white curves refer to Choroidal-Scleral Interface (CSI) and Bruch’s membrane (BM), relatively (8 bit image), [Adapted] with permission from [Shi F et al., 2016] [ 60 ].

In a study by Michael D. Twa et al. OCT scans were obtained from 30 healthy eyes and the repeatability, accuracy and speed, of the proposed method were compared with manual one. The automated segmentation method was based on graph theory, dynamic programming, and wavelet-based texture analysis. The choroidal thickness measurements had similar repeatability between segmentation methods (automated (limits of agreement) LoA: ±14 μm; manual LoA: ±15 μm). At the foveal center, the mean choroid thicknesses were 259 ± 23 μm (automated) and 263 ± 24 μm (manual). Automated segmentation was 200 times faster than manual segmentation (4 vs 780 seconds). It can be concluded that automated segmentation by the use of graph theory and dynamic programming is a reliable, fast and accurate method. The proposed method was nearly 200 times faster than manual segmentation methods [ 61 ].

In another study by Xiaodan Sui et al. a convolutional network based architecture presented in which raw pixels were used to instruct an optimal graph-edge weight. This multi scale method merges global and local information from the OCT image. The experimental results on 912 B-scans indicated that this method has a better performance than manual methods, behaves accurately without any difference between OCT images of healthy people and patients, also is helpful for large scale quantitative choroidal studies and improves the diagnosis of patients with eye diseases affecting the choroid [ 9 ].

In a study by Qiang Chen et al. a three–dimensional (3D) graph search method was used and results with 768 images, including 2 DR and 2 AMD patients, 2 healthy persons, and 210 B-scan images from other 21 patients and 8 healthy persons showed that this method has high accuracy. The overlap ratio and mean choroid volume difference between the automatic and manual segmentations for 6 cubes were 88.56% and 1.96 μm³, respectively. As a conclusion, this method contains high stability and accuracy on the 3D choroid segmentation of SD-OCT images [ 62 ].

In a study by Javier Mazzaferri et al. a new automatic algorithm based on graph theory was developed in order to detect the choroidal boundaries on OCT images. This software automatically builds a 2D thickness map and segments the posterior and anterior interfaces of the choroid. At least, the proposed method was performed on database of 280 patients as well as specialists. Finally the performance of this method was similar to manual segmentation (all medians were smaller than 11 μm) for the CSI, whereas the commercial software produces larger deviations (more than 30 μm) due to smoothing [ 63 ].

Al-Bander et al. presented an accurate and fast method for choroidal segmentation based on a deep learning algorithm without user intervention. They used the dataset of 169 EDI-OCT images to evaluate their proposed method. First, in order to extract the super pixels (patches), the simple linear iterative clustering (SLIC) algorithm was applied. Then, the extracted patches were enhanced by increasing contrast of the region of interest. Finally, in order to label regions into non-choroid or choroid, they fed the patches to convolutional neural network. This proposed method got DC of 89.76% and accuracy of 98.01%, showing the effectiveness of this method [ 64 ].

Chen et al. proposed a learning based method for choroidal segmentation using convolutional neural networks. They used 62 EDI-OCT images of AMD patients, which have been manually segmented. Twelve of 62 images were used for testing and 50 of 62 images were randomly selected and used for training. The mean Dice coefficient obtained from comparison of automated and manual segmentation was 0.82 ± 0.10. It could be concluded that this proposed method demonstrates good accuracy in choroidal segmentation on EDI-OCT images of patients with AMD [ 65 ].

Wang et al. presented an automatic technique for choroidal layer segmentation in 3D OCT images. They used 3D nonlinear anisotropic diffusion filter for image enhancement and removing the speckle noise, then the level set and Markov random field methods were used to approximate the boundary of choroid. Thirty 3D OCT scans of thirty healthy subjects with ages between 20 to 85 years were used at this study. Experimental results showed that the mean signed difference was 1.59 ± 1.65 pixels and the mean unsigned difference was 2.17 ± 1.77 pixels, also the mean Dice’s coefficient was 90 ± 4%. The comparison between the automatic and manual segmentations indicates that this technique can accurately and successfully segment the posterior boundary of choroid [ 66 ].

Hussain et al. presented a method for segmentation of choroid from EDI-OCT images. For CSI segmentation, the Dijkstra’s shortest path algorithm was used. The outer boundary of CSI was determined approximately and combined with the CSI edge segmentation in order to choose the best edge weight. This method was applied on 190 B-scans of 10 subjects. The proposed method was compared to the results from the manual segmentation and available results by Chen et al. [ 48 ] and Tian et al, [ 13 ]. For finding the CSI boundary, the mean root-mean-square error (RMSE) was 7.71 ± 6.29 pixels, which was sizably lower than the RMSE for the two other modern methods (36.17 ± 11.97 pixels and 44.19 ± 19.51 pixels). The correlation coefficient of this method was 0.76, while it was 0.51 and 0.66 for the other two methods. Moreover, the interclass correlation coefficients were 0.72, 0.43 and 0.56 respectively. Finally, the authors concluded that this method is highly reliable, accurate, consistent and robust [ 11 ].

Salafian et al. proposed an automatic method for segmentation of choroid in neutrosophic space on EDI-OCT images. At this study, 32 EDI-OCT images from 11 people were automatically segmented and compared with manual segmentations. Applying any process on image in neutrosophic approach was modeled by three sets including indeterminacy, false and true sets. First of all, each image was transformed to the neutrosophic space; second, in order to detect RPE layer, the weights between two nodes were calculated and the Dijkstra algorithm was applied. Finally, the choroidal layer was segmented by similar approach used for RPE, based on applying homomorphic filter and gamma correction to false set and RPE localization. The results showed the unsigned error of 25.3 μm (6.55 pixels) for prepapillary images and 12.9 μm (3.34 pixels) for macular images. The advantage of this study is that this method is novel on prepapillary data while other published works are focused on macular data [ 67 ].

Masood et al. presented an automatic method for segmentation of choroidal layer in OCT images, utilizing a series of morphological operations and deep learning. They segmented the choroidal layer using a deep learning approach and the BM utilizing a series of morphological operations. At this study, the total 525 OCT images of 21 individuals were used as each individual had 25 OCT scans in which the data of 10 people (250 images) was used for testing and the data of 11 individuals (275 images) was used for training. The average dice coefficient was 97.35% with a standard deviation of 2.3% for 250 tested images, showing that there is a well stability between proposed algorithm and manual segmentations. Moreover, the obtained results in this study demonstrate that this method considerably reduces the error rate in comparison with the other methods [ 68 ].

George et al. proposed a new method for automatic segmentation of the choroidal layer in OCT images. The rotating kernel transformation (RKT) filter was used for image enhancement then a multi-level contour evolution based on Chan Vese method was used for choroidal segmentation. The used data set was the same with Danesh et al. [ 8 ] which had 589 OCT images in 19 volumes and each volume contains 31 OCT images corresponding to one eye. The mean error (ME) and mean absolute error (MAE) for BM and CSI between the automatic and manual segmentations were 0.15 ± 0.8 pixels, 1.78 ± 1.3 pixels, 0.48 ± 3.8 pixels, and 4.7 ± 3.2 pixels, respectively. This method showed high correlation with manual segmentations and good consistency and accuracy. It can be concluded that this presented method is efficient and simple without any need to training [ 69 ].

All of recently published methods have been briefly mentioned at Table 1.

Evaluation metrics

Generally, the performance of the choroidal segmentation algorithms was evaluated with manual segmentation accomplished by an expert clinician. Some of the popular metrics which have been used for evaluation of choroidal layer segmentations are as follows: volume difference (VD), thickness difference (TD), correlation coefficients (CC), mean squared error (MSE), mean absolute error (MAE), Dice’s coefficient (DC), mean unsigned border positioning errors (MUBPE), mean signed border positioning errors (MSBPE), absolute border position difference (ABPD), mean border position difference (MBPD), accuracy, mean overlap ratio, and unsigned error.

One of the statistical metrics for comparing the similarity of two samples is Dice’s coefficient which was presented by Thorvald Sørensen and Lee Raymond Dice [ 70 ] in 1948 and 1945, respectively. Its original formula was considered to be applied to binary data. It is defined as bellow, (given two sets, X and Y):

$\mathrm{DSC}=\frac{2\times |X\cap Y|}{\left|X\right|+\left|Y\right|}$ (1)

When applied to Boolean data using the definition of false negative (FN), false positive (FP) and true positive (TP), it can be written as:

$\mathrm{DSC}=\frac{2\mathrm{TP}}{2\mathrm{TP}+\mathrm{FP}+\mathrm{FN}}$ (2)

A statistical relationship between two variables is called, correlation coefficient (CC). The variables may be two components of a multivariate random variable with a known distribution or two columns of a given data set of observations, often called a sample. There are also several types of correlation coefficients, each with their own definition. All of them range from −1 to +1, where −1 and +1 show the strongest possible disagreement and possible agreement. Correlation coefficients as analysis tools contain certain problems such as the possibility of incorrectly being used to infer a causal relationship between the variables and the propensity of some types distorted by outliers [ 71 ]. The correlation between two random variables u and v is defined as:

$\mathrm{CC}=\frac{n(\sum \mathrm{uv})-(\sum u)(\sum v)}{\sqrt{[n\sum u^2-{(\sum u)}^2][n\sum v^2-{(\sum v)}^2]}}$ (3)

The mean squared error (MSE) of an estimator in statistics, measuring the mean of the squares of the errors, is the difference between the estimator and what is estimated [ 72 ], which is always non-negative, also a measure of the quality of an estimator, and the values closer to zero are better. If Y is the vector of observed values of the variable predicted and $\hat{Y}$ is a vector of n predictions, the MSE of the predictor will be as bellow:

$\mathrm{MSE}=\frac{1}{n}\sum _{\mathrm{i=1}}^n{(Y_i-\underset{i}{\overset{^}{Y}})}^2$ (4)

The measure of difference between two continuous variables in statistics is called the mean absolute error (MAE). It is the average horizontal distance between each point and the line Y=X, and also the MAE is the average vertical distance between each point and the line Y=X, defined as bellow [ 73 ]:

$\mathrm{MAE}=\frac{{\sum }_{\mathrm{i=1}}^n|y_i-x_i|}{n}=\frac{{\sum }_{\mathrm{i=1}}^n\left|e_i\right|}{n}$ (5)

Also, another metric used for evaluation is accuracy and formula is [ 64 ]:

$\mathrm{Acc}(\%)=\frac{\mathrm{TP}+\mathrm{TN}}{\mathrm{TP}+\mathrm{TN}+\mathrm{FP}+\mathrm{FN}}\times 100$ (6)

Where; TP: True Positive, TN: True Negative, FP: False Positive, and FN: False Negative.

The TD and overlap ratio measure the choroid area difference and their mean values are computed as following [ 48 ]:

$\stackrel{\_\_\_\_}{\mathrm{TD}}(M;N)=\frac{1}{j}\sum _{\mathrm{j=1}}^j\frac{1}{n}\sum _{\mathrm{r=1}}^n(T{M}_j^r-T{N}_j^r)$ (7)

$\stackrel{\_\_\_\_\_\_\_\_\_\_\_}{\mathrm{Overlap}}(M;N)=\frac{1}{j}\sum _{\mathrm{j=1}}^j\frac{M_j\cap N_j}{M_j\cup N_j}$ (8)

Where j shows the number of B-scan. $M_j^r$ and $N_j^r$ show the coordinates of the r^th column in the axial direction of B-scan j, produced by the method M and the grader N, respectively. T$M_j^r$ and T$N_j^r$ show the choroidal thicknesses of the r^th column in the axial direction of B-scan j, produced by the method M and the grader N, respectively. M_j and N_j show the regions inside the segmented choroid boundary of B-scan j. The operator ∪ and ∩ show union and intersection, respectively.

Among the proposed metrics, Dice, used very often, is biased by the thickness of the tissue which may not be used in comparing “thicker and thinner” choroids. One another popular metric for evaluating the automatic choroidal segmentation is correlation coefficient that is easy to interpret and work out, but it can only measure linear relationships and the results will not be accurate if the relationship is not linear. The most of the reviewed studies reported the mean thickness differences as evaluation metrics which were more advantageous than the other metrics because it is not biased by the thickness of the tissue and can be useful in comparing “thicker and thinner” choroids.

Discussion

This paper has attempted to cover a wide and detailed analysis of the most recent automatic choroidal segmentation techniques and reviewed the most effective and innovative methods of automatic choroidal segmentation. Advantages and disadvantages of each method were featured, including available metrics reported by the authors. However, despite the recently done efforts, there are still chances for more improvements. Besides, the automatic segmentation methods would be more accurate than the manual segmentation of choroid. In order to extract the choroidal thickness, there is a need to expand automatic image segmentation techniques.

Since all methods have been applied to different data, it is impossible to compare accurately and quantitatively between different methods, therefore, only the qualitative comparison of the results of each method is considered. According to the results, it seems that methods based on graph theory have better and more acceptable results than other methods since using the graph theory and dynamic programming can provide accurate, repeatable and rapid quantitative measurements of choroidal thickness [ 61 ]. The techniques based on graph searching are widely used for segmentation of choroidal boundaries [ 6 , 8 , 9 , 12 , 13 , 54 - 57 , 60 - 63 , 67 ] and the comparison of maintained results such as DSC in Table 1 generally shows great superiority of this method [ 6 , 12 , 13 , 54 , 60 ] over other proposed methods [ 59 , 64 , 65 , 68 ].

A graph searching algorithm was performed accurately if appropriate graph-edge weights is assigned and in comparison with dynamic programming method and traditional methods of boundary detection, the graph search method contains two advantages, as follows: (1) dynamic programming method and the traditional boundary detection methods are mainly dependent on gradient of image. In HD-OCT images, the gradient of CSI borders is weaker than choroidal vessels, thus choroid vessels make these methods difficult to detect CSI boundaries. (2) It merges smoothness constrains and neighbor information to segment CSI boundary, constructing the inter-arcs according to neighbor columns and intra-arcs in the graph from one vertex to next vertex in each column. In dynamic programming methods, 8 or 4-neighborhoods are used to construct a graph, without considering the column constrains. Besides, all of the methods contain one or more of the following disadvantages: they do not exhibit robustness in varied and noisy cases, require manual intermediation of the operator, and only segment the most prominent layers.

Conclusion

In this paper, we reviewed the available studies for the automatic segmentation of the choroid with a focus on samples, methods, and results of each study. The review of the methods used in the articles indicates that methods based on graph theory are mostly used. The DSC metric generally shows that graph-based methods could perform acceptably in automatic segmentation of the choroid and have significant superiority over other proposed methods. Finally, if an automatic choroidal segmentation method properly was designed, not only it can be used in quantitative studies of the choroid, but also it can help the ophthalmologists as an effective tool in diagnosing choroidal related eye diseases.

Authors’ Contribution

Peyman A and Akhlaghi A, made substantial contributions to the design of the study. Eghtedar RA and Esmaeili M, drafted and critically reviewed the manuscript. Rasta SH, was responsible for the overall supervision of the work, as a corresponding author. All authors read and approved the final manuscript.

Conflict of Interest

None
