Introduction

Superficial tumours can be treated with megavoltage electron beams due to sparing of the underlying tissues caused by the steep dose fall-off gradients. In some surface treatments, electron beams irradiate less surrounding tissue when compared to oblique photon beams e.g. during photon treatment of the parotid and some breast tumours where there is the significant normal tissue involvement in tangent field beam arrangements.

Electron therapy uses energy and intensity modulated electron beam radiotherapy (MERT) [ 1 , 2 ] for treatment of parotid, paraspinal, and breast tumours [ 3 , 4 ]. Electron beam energy selection is based on the depth range to 90% dose maximum (R₉₀), covering the tumour bed which deliver a therapeutic dose [ 5 ] R₉₀ increases for increasing field size and reaches a saturation value for fields that are larger than 10 × 10 cm² [ 6 ]. Monte Carlo (MC) MERT simulation studies were also done to investigate photon multi-leaf collimator (MLC) or electron MLC beam delivery [ 7 , 8 ]. One study investigated dose delivery through a photon MLC at 60 cm source-to-surface distance (SSD) for different carcinoma treatments [ 9 ]. EGSnrc and macro Monte Carlo (MMC) simulations have been done for a Synergy S, Clinac 23EX and TrueBeam linear accelerators.

Another type of electron beam therapy is segmented-field electron conformal therapy (ECT). It involves the delivery of electron beams through a number of abutted fields [ 10 ].

Applicators or MLCs can be used to collimate the electron beam. The question now arises: If single MLCs collimated electron fields are used for small lesion treatments, what are the dosimetric consideration (guidelines) and how does it depend on the field size and beam energy?

The dosimetric consideration includes the electron range from the surface to 90 % (dose fall-off (R₉₀), the lateral distance between the 80% and 20% isodose lines (penumbra), the depth range from 80% to 20% dose fall-off, defined here as the dose fall-off range (DFR), and percentage bremsstrahlung dose (BSD) since MLCs which collimated electrons are delivered at 60 – 70 cm SSD [ 11 ].

The aims of this study was as follows: I) To develop an accurate Monte Carlo model for an Elekta Precise that is benchmarked against measurements with Gafchromic film and water tank data II) To extract dosimetric parameters from the 3-D dose distributions to develop guidelines for using single electron fields for small lesion irradiation.

Material and Methods

Treatment head and water tank simulation

The EGSnrc-based BEAMnrc and DOSXYZnrc MC codes were used in this study [ 12 , 13 ]. BEAMnrc was used to model an Elekta Precise treatment head. Electron beam fields were formed by the MLC and jaws, with sizes defined at 60 cm SSD. The MLC is 7.5 CM thick and has rounded leaf tip edges. The treatment head has a pair of MLC backup jaws (3 cm thick) and a pair of jaws (7.5 cm thick), all composed of a heavy metal alloy.

MC transport setting includes energy cut-offs of 0.010 and 0.521 MeV for photons and electrons, respectively. Photon forcing, range rejection, bremsstrahlung splitting, Rayleigh scattering and bound Compton scattering were not requested. Atomic relaxations and spin effects were implemented. The electron-step algorithm and boundary cross algorithm (BCA) were set as PRESTA-II and EXACT.

The electron beam sources were circular with a Gaussian fluence distribution. The source energy spectra were adjusted to match measured electron beam dose distributions at 95 cm source-collimator-distance (SCD). Here, the electron applicator was included in the treatment head and phase space files were scored at 95 cm SCD and used in DOSXYZnrc simulation. The same MC transport setting was used as described above. The simulated water tank dimensions were 30 × 30 × 30 cm³ with voxel sizes of 0.1 × 0.1 × 0.2 cm³ in the x, y, and z directions.

Beam profile- and percentage depth dose (PDD) data were extracted from the simulated 3D dose in the water tank and compared with measurements. The matching criterion was set at 2% / 2 mm.

MLC collimated electron beam simulation

Simulations were performed for field sizes between 1 × 1 cm² and 20 × 20 cm².

Dose parameters were calculated from 3D dose data from DOSXYZnrc. The water tank surface was set at SSD = 60 cm. PDD data were extracted from which R₉₀, DFR and BSD parameters were obtained. P_80-20 values were obtained from beam profiles at an effective depth of 0.1 cm.

Film measurement of MLC collimated electron beams

MLC fields were set up and EBT2 film (Lot#03181402) was used to obtain dose profiles for 4, 6, 8, 10 and 15 MeV for a range of fields at SSD= 60 cm using 100 monitor units (MUs) in a RW3 solid water phantom. It was placed at 0.1 cm and 0.9 cm below the surface for 4, 6 and 8 MeV data. For 10 and 15 MeV data, the second measurement depth was 1.9 cm. After 24 h, the films were scanned on an EPSON perfection V330 document scanner in TIFF image format and 48 bit-depth and resolution of 50 dpi.

The data of red channel TIFF image were converted into dose using a method described by O’Reilly and co-workers [ 14 ].

The resulting dose profile images were analysed using ImageJ r1.46 (National Institute of Health). Corresponding DOSXYZnrc dose profile data were compared with the benchmark film data.

Dosimetric Guidelines for small MLC field selection

Field size for small lesion irradiation is important to ensure adequate tumour dose coverage and sparing distal organs at risk (OARs). Guidelines were developed for radiation planning of small lesions. The DFR is an important guideline since it describes the dose fall-off between R₈₀ and R₂₀, indicating distal dose penetration into potentially OAR tissue close to the tumour bed.

The BSD is the bremsstrahlung dose present in the PDD curve and indicates the dose that distal normal (OAR) tissue receives for the field size under consideration. A criterion of less than 5% is set as a guideline.

The R₉₀ to DFR ratio is a scale, indicating the therapeutic dose range over the dose penetration range. It is a useful parameter to consider where OARs are close to the tumour bed and a different field size should rather be considered to avoid excessive dose into the OAR (at the expense of more lateral normal tissue dose).

The penumbra is defined as the lateral distance between the 80% and 20% isodose lines, and its magnitude depends on the depth at which it is taken.

Results

MC and measured dose comparison for applicator collimated electron beams

The MC simulation of the Elekta Precise accelerator produced depth dose data that compared within 2% / 2 mm from measure depth dose data as seen in Figure 1.

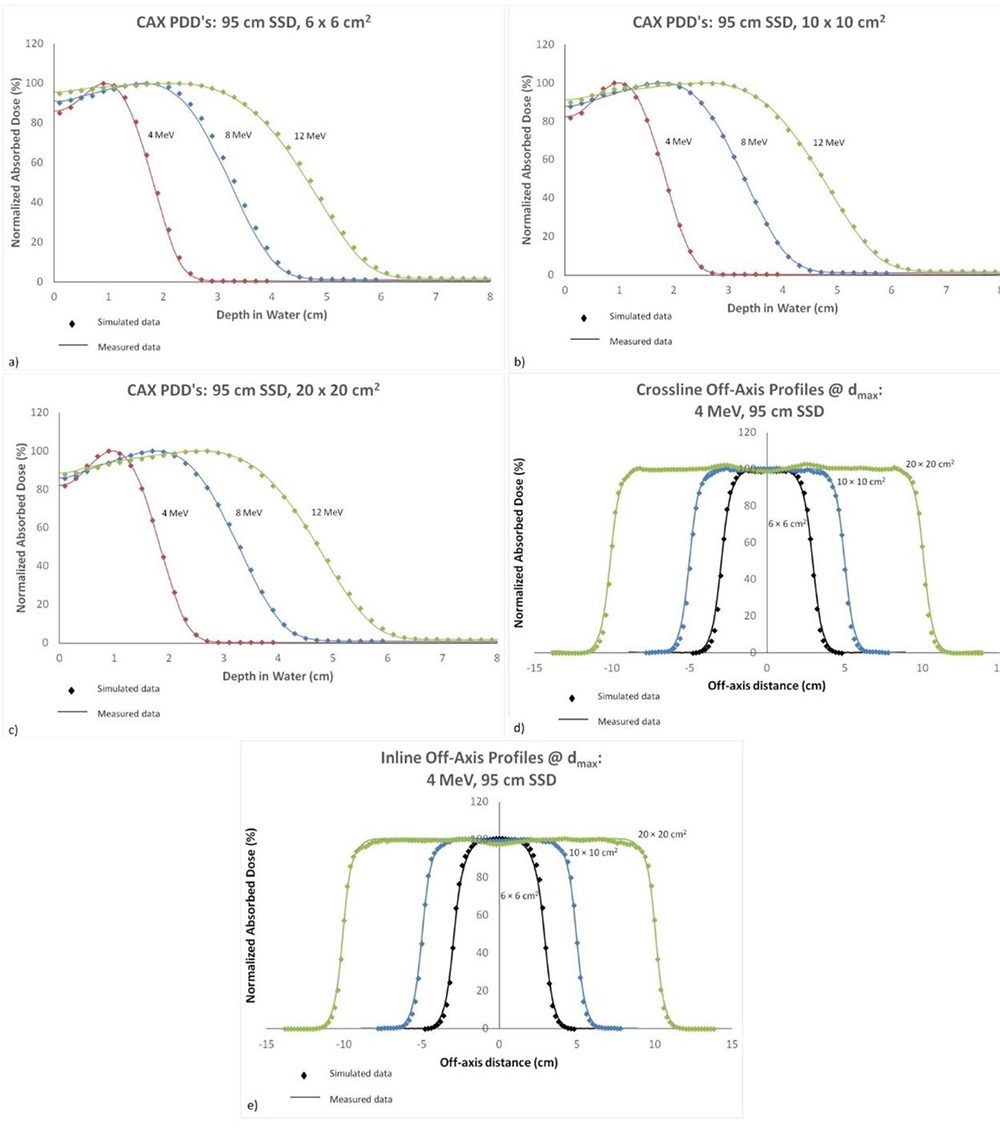

Figure 1. Monte Carlo (MC) (symbols) and measured (solid line) data comparison. In panels a) – c) corresponding central-axis (CAX) percentage depth dose (PDD) data is shown at 95 cm source-to-surface distance (SSD) for fields of 6 × 6, 10 × 10 and 20 × 20 cm², respectively. In panels d) and e), inline and crossline dose profile data at 4 MeV are shown for the above three field sizes at 4, 8 and 12 MeV measured at 95 cm SSD at a depth of 0.9 cm

MC and film dose comparison for MLC collimated electron beams

Comparison between film and MC dose profiles are shown in Figure 2. The variance was within 1% and 2.3% for the MC data and film data, respectively and also too small to be shown on the graphs. The correspondence between the film and MC data was within 2% / 2 mm.

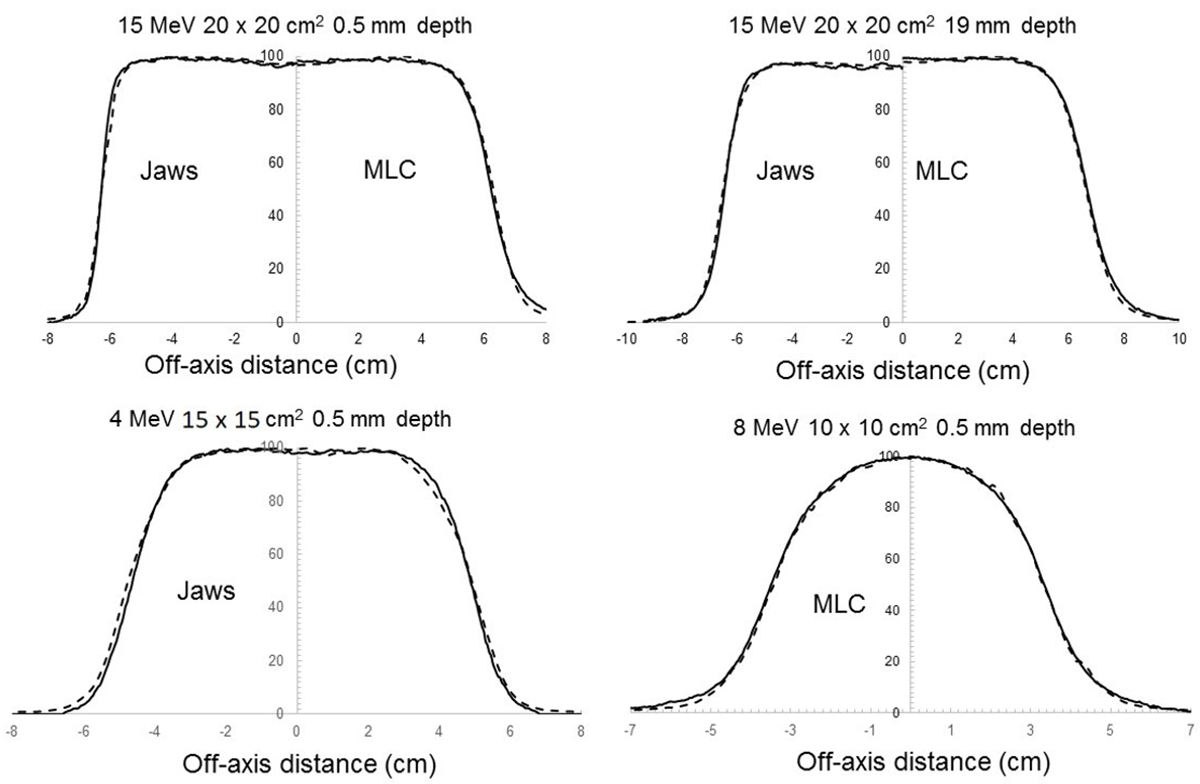

Figure 2. Comparison between Monte Carlo (MC) (broken lines) and film dose profiles (solid lines). In the top row half profiles are shown for the ‘Jaws’, and multi-leaf collimator (‘MLC’) collimated electron beams in a 20 × 20 cm² field at 15 MeV for the top left: 0.5 mm depth, and top right: 19 mm depth. The row shows full profiles for the ‘Jaws’ (left: 4 MeV, 15 × 15 cm²) and the ‘MLC’ (right: 8 MeV, 10 × 10 cm²) fields. Field sizes were defined at 100 cm source-to-surface distance (SSD)

P80-20 and R90

P_80-20 for MLC collimated electron beams decreases due to the decrease in the field size. P_80-20 was measured at 0.2 cm depth and ranged between 1.2 cm (4 MeV) and 0.7 cm (15 MeV) for the 1 × 1 cm² field and decreased from 3.7 cm (4 MeV) to 1.6 cm (15 MeV) for 20 × 20 cm². Figure 3 (top) shows a plot of the relative penumbra on a semi-logarithmic scale expressed as a percentage of the corresponding field size. For the 4 MeV case, the relative penumbra varies between 90% at 1 × 1 cm² field and 9% at 20 × 20 cm². At 15 MeV, this variation is between 60% and 5% for 1 × 1 cm² and 20 × 20 cm² fields, respectively.

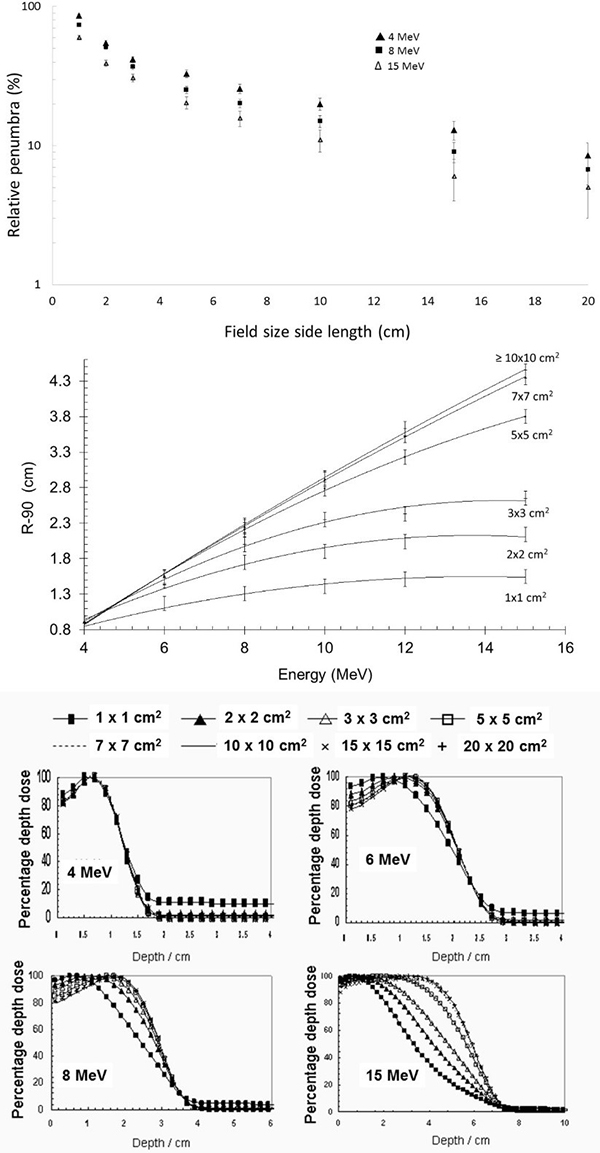

Figure 3. (Top) P_80-20 expressed as a percentage of the corresponding field size. (Middle) R₉₀ vs. beam energy for different field sizes. (Bottom) Percentage depth dose (PDD) data for fields ranging from 1 × 1 cm² to 20 × 20 cm² for 4, 6, 8, and 15 MeV electron beams.

R₉₀ depends on the field size and beam energy as shown in Figure 3 (middle). Superimposed on the data points are least-square fits of quadratic polynomials.

R₉₀ was parameterised with a quadratic of the form:

$R_{90}\mathrm{(E)}=a{E}^2+bE+c$ (1)

Different fitting parameters were used for each field size. Here, E represents the electron beam energy (MeV). Calculated R₉₀ values are within 0.1 cm of the values, shown in Figure 3 (middle).

Percentage depth dose (PDD)

Figure 3 (bottom) shows the sets of depth dose data at the indicated beam energies for a range of square MLC which collimated field sizes.

Bremsstrahlung dose (BSD) and dose fall-off range (DFR)

BSD enhancement makes a relatively larger contribution to the electron PDD beyond Rp at low beam energies and small field sizes. At 4 MeV, the BSD contribution increases up to 11.3% for the 1 × 1 cm² field and declines due to the increase in the field size, which also includes data at higher energies.

In Table 1, a set of guidelines were defined for single field electron beams and the energy range. The guidelines of DFR ≤ 1.5 cm were chosen to avoid excessive dose delivery to distal healthy tissue. For energies between 4 and 6 MeV, the 1 × 1 cm² field would fall within these guidelines. For the 7 × 7 cm² field, the energy range increases from 4 and 10 MeV over which the DFR ≤ 1.5 cm.

Discussion

Applicators with irregular cut-outs should not be used when using MLC collimated electron beams. It is necessary to study the properties of MLC collimated electron beams as far as their use in clinical cases. The first step was to build an accurate Monte Carlo model of the Elekta Precise linac. Results indicated that the Monte Carlo linac model could replicate depth dose and beam profiles delivered through standard applicators within 2 % / 2 mm. As a further benchmark, Gafchromic film measurements indicated correspondence within 2 % / 2 mm for MLC collimated and Monte Carlo simulated electron beams. From these measurements, the Monte Carlo model was deemed accurate. Dosimetric parameters were extracted from the PDD data (Figure 3, bottom) to develop single field selection guidelines as discussed below.

Larger fields have broader P_80-20, (Figure 3, top), indicating more lateral dose involvement. An appropriate treatment margin should cover the tumour within the 90 % dose level. In Figure 3 top, the relative penumbra width is nearly 100 % for a 1 × 1 cm² field, reducing to a few percent for the 20 × 20 cm² field. For the smallest field size studied, the penumbra is almost as wide as this field.

R₉₀ increases with increasing field size up to a critical field size (CFS) after which it remains invariant due to full lateral electron build-up (LEB). For R₉₀ at a constant energy, it is observed that, at 4 MeV, this quantity does not change for field sizes larger than 2 × 2 cm² and for 6 MeV, the CFS ≈ 3 × 3 cm² and at 8 MeV the CFS = 5 × 5 cm². For 10 MeV, the CFS ≈ 7 × 7 cm² and for beam energies ≥ 10 MeV, the CFS = 10 × 10 cm².

The BSD depends on field size as well as beam energy. At 4 MeV, the BSD decreases rapidly from 11.3% for a 1 × 1 cm² field to 2.4% for a 2 × 2 cm² field due to LEB, increasing the electron dose contribution on the beam central axis. At 4 MeV, the BSD for a field size of 5 × 5 cm² has reached a constant value with increasing field size. As a rule, it can be stated that electron fields larger than the CFS have constant BSD contributions at a given beam energy.

The DFR reach constant values for fields which are more than CFS at the beam energy under consideration. Here, the central axis dose is fully enhanced by off-axis electrons, scattering into this region and resulting in shorter DFR values. Narrow beams (small fields) become increasingly more diffuse as the depth increases leading to longer DFR. It increases as a function of beam energy, regardless of the field size. Larger distal tumour depth would involve more healthy tissue. For smaller distal tumour depth, lower beam energy would be useful, resulting in a lesser dose to distal tissue due to lower DFR.

Larger electron fields have a wider energy range of application compared to smaller fields when were benchmarked against the guidelines. For example, if it is determined that a 5 × 5 cm² field is adequate for tumour coverage, it will meet all dosimetric guidelines set in Table 1 for beam energies between 4 and 10 MeV. This is for cases where too much beam involvement into distal OAR’s would present a challenge.

Conclusion

MC simulations agreed within 2% / 2 mm for PDD and beam profiles as benchmarked against water tank and Gafchromic film measurements. Analysis of the 3-D dose data showed that fields smaller than 2 × 2 cm² should be avoided because of their higher BSD values and relative wide penumbras. Fields with sizes between 3 × 3 cm² and 10 × 10 cm² are preferred as they met the guide­lines over the total range of electron beam energies in this study.

Acknowledgement

The authors thank Mrs. T. Mulder, medical editor, School of Medicine, University of the Free State, for technical and editorial preparation of the manuscript.

Authors’ Contribution

FCP Du Plessis was involved in the writing, development of the methodology, and was responsible for the funding acquisition and supervision. D Van Eeden contributed to the writing, reviewing, and editing of the overall research and results. KN Sachse performed simulations and analyzed the results. All the authors read, modified, and approved the final version of the manuscript.

Funding

This research project was funded by the South African Medical Research Council in terms of the MRC’s Flagships Awards Project [SAMRC-RFA-UFSP-01-2013/HARD].
