Introduction

Hip and knee replacements improve the patient’s life quality via pain relief and restored function, through the success of implants’ fixation to bone. Roughened and porous surfaces have been used to improve biological fixation and osseointegration. Recently, porous metals were used to improve fixation to bone for orthopedic applications [ 1 ].

Metal lattices fabricated by additive manufacturing (AM) technology with suitable parameters can replicate the biomechanical properties of the natural bone to overcome issues such as bone resorption, implant loosening [ 2 , 3 ]. Several researchers have proven the ability of porous materials to substitute natural bone, leading to a promising solution for load bearing implants and osseointegration improvement [ 1 , 4 ].

Titanium and its alloys are suitable for medical applications due to their biocompatibility, corrosion resistance and mechanical characteristics. However, fully dense metallic biomaterials develop stress shielding and may cause fibrous tissue ingrowth. Development of porous titanium improves the interconnection between implant and human bone to enhance stabilization, and to decrease both the risk of the bone loss and the implant loosening [ 5 , 6 ].

Balancing is a vital demand between biological and mechanical properties by controlling surface roughness, porosity, pore size, shape, and distribution [ 7 , 8 ]. Finite Element Analysis (FEM) as numerical method that can be used for testing new lattice designs to predict their mechanical properties for meeting specific requirements before fabrication [ 9 ].

Open-cellular triply periodic minimal surface (TPMS) structures such as gyroid structure have a vital potential for design of biomedical implants. In this regard, Zulkifli et al. [ 2 ] analyzed several structures for metal implants including gyroid structure. Gyroid structures proved biomimicry features to support cell activity with superior mechanical properties comparable to human bone.

Wen et al. [ 10 ] evaluated three different unit cell sizes, including 2, 2.5 and 3 mm of Ti6Al4V gyroid porous scaffolds for bone implant applications via numerical and experimental analyses under compression test. The lattices were manufactured by electron beam melting (EBM) with high porosities in range of 82 to 85%. The results proved that the mechanical properties of the tested scaffolds were comparable to trabecular bone. The elastic modulus and yield strength ranged from 637 to 1084 MPa and 13.1 to 15.0 MPa, respectively.

Additionally, Meneghini et al. [ 3 ] investigated two different lattices structures of Ti6Al4V, cube and gyroid, for their morphological and mechanical behavior. Five samples of each type porous structures with pore sizes ranged from 300 to 600 µm were modeled and analyzed using FEM following the ISO standard (ISO 13314). The porous structures were manufactured by selective laser melting (SLM) process. Morphological characterization of the structures was performed using micro-CT scan, before conducting a compression test to evaluate the mechanical behavior of scaffolds. Cube and gyroid structures with pore size 300 µm presented similar properties to that of natural bone which make them suitable for tissue ingrowth.

Also, Afonso et al. [ 11 ] investigated the elastic modulus and the strength through compression tests for two structures of Ti6Al4V, gyroids and diamonds manufactured by EBM. The obtained elastic moduli of these porous structures were comparable to each other and the human cancellous bone.

Whereas, Yang et al. [ 12 ] fabricated Graded Gyroid cellular structures (GCSs) using selective laser melting (SLM). Compression tests were carried out to investigate the surface morphology and mechanical response of these lattices. Results indicated that GCSs with density gradient perpendicular to the loading direction had deformation behaviors compared to uniform ones, while GCSs with density gradient parallel to the loading direction had layer-by-layer deformation and collapse performance.

The current research present data that could assist the clinical decision using Ti6Al4V gyroid structure for tibial implant design for total knee arthroplasty (TKA). It’s expected that a porous gyroid stem will deliver lower stem pain and micro-motion with favorable stress distribution compared to fully solid stem.

Material and Methods

This analytical study of tibial-knee implant of solid and porous stem structure design predicts their mechanical response. First step involved creating 3D geometries of solid and porous implants implanted in natural human bone using CATIA software (V5R18, Dassault Systèmes, Vélizy-Villacoublay, France). For the second step, both solid and porous models were modeled using software ANSYS (Release 18.1, ANSYS, Inc., Canonsburg, PA, USA).

Model geometry

a. Human Bone

A three-dimensional 3D model of a normal left human tibia bone was used to represent the bone geometry. A flat bone osteotomy was prepared in the upper cortical bone to match the flat surface of the tibial tray, and a cavity was cut in the cancellous bone to accommodate the tibial stem as shown in Figure 1a.

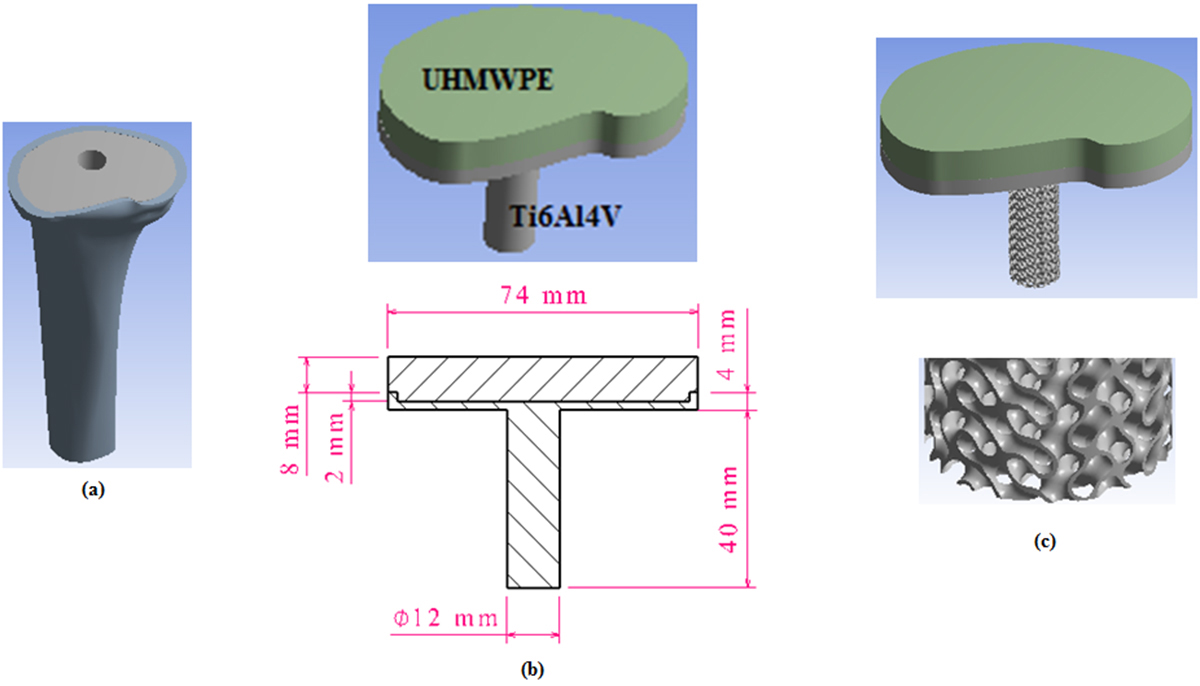

Figure 1. (a) Prepared bone to insert artificial implant; (b) Geometry of full solid tibia Implant; (c) Gyroid stem implant.

b. Solid Implant Model

The full solid implant was designed for cementless fixation method with two components, as shown in Figure 1b. Ti6Al4V tibial implant was integrated with Ultra High Molecular Weight Polyethylene (UHMWPE tibia tray). The thickness of the tibial tray was 4 mm with 2 mm inner groove to house the UHMWPE insert. The proximal stem portion was 40 mm in length and 12 mm in diameter. The thickness of the UHMWPE insert was 8 mm [ 13 ].

c. Porous Implant Model

The porous implant also was designed with the same shape and dimensions of the full solid model. The only difference is the implant stem. The full solid stem was replaced by gyroid porous scaffolds, as shown in Figure 1c. The gyroid unit cell has a 500 µm pore size and 200 µm strut thickness [ 2 ].

Loading Conditions

The two implants, including solid and gyroid, were subjected to a 2000 N vertical applied load representing a stance phase during normal walking. The distributed forces were 40% on the lateral condyle (800 N) and 60% on the medial condyle (1200 N). The distal end of the tibia was fixed in all directions [ 14 ]. Figure 2a shows the loading conditions applied to the models.

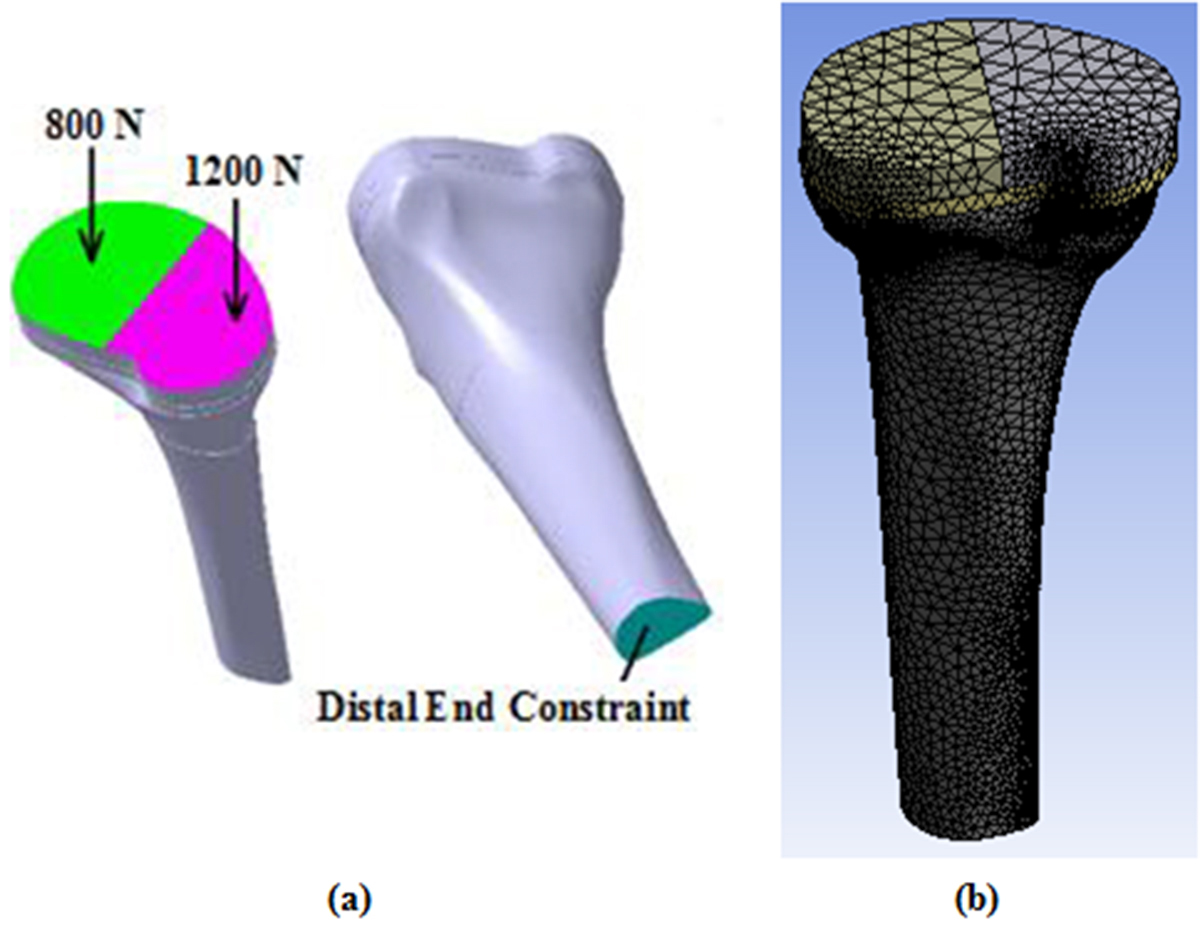

Figure 2. (a) Loading conditions applied to model; (b) 3D Mesh of bone-implant assembly.

The coefficient of friction between the human bone and the implants was set to 0.4 [ 15 ]. Material properties were assigned to bone and implant as follow: cortical bone, E= 17 GPa and ν= 0.3 [ 16 ]; cancellous bone, E= 350 MPa and ν= 0.25 [ 16 ]; UHMWPE, E= 1 GPa and ν= 0.3 [ 14 ]; and Ti6Al4V alloy E= 110 GPa and ν= 0.33 [ 14 ].

Numerical Modeling

A 3D finite element analysis was used to study both solid and gyroid implants using ANSYS software (Release 18.1, ANSYS, Inc., Canonsburg, PA, USA). Both solid and gyroid porous models were meshed with solid patch-conforming tetrahedral elements, as shown in Figure 2b. The number of elements of full solid model was 223836. However, the porous model was tessellated to 313090 elements. The average skewness of the full solid model was 0.26 and the average skewness of the porous model was 0.62.

Results

Stress shielding, loosening, and stress concentration are the most commonly failure reasons after TKR. Stress shielding is a result of mismatching between stiffer implant and adjacent bone tissue [ 17 , 18 ]. Aseptic loosening is due to micromotion between implant and bone and leads to implant instability. Also, stress concentrations appear at the stem tip and leads to severe patients’ pain [ 18 - 20 ].

As shown in Figure 3, the maximum von-Mises stresses developed in bone under the tibial tray for both solid and porous cases were 7.7457 MPa and 10.081 MPa, respectively.

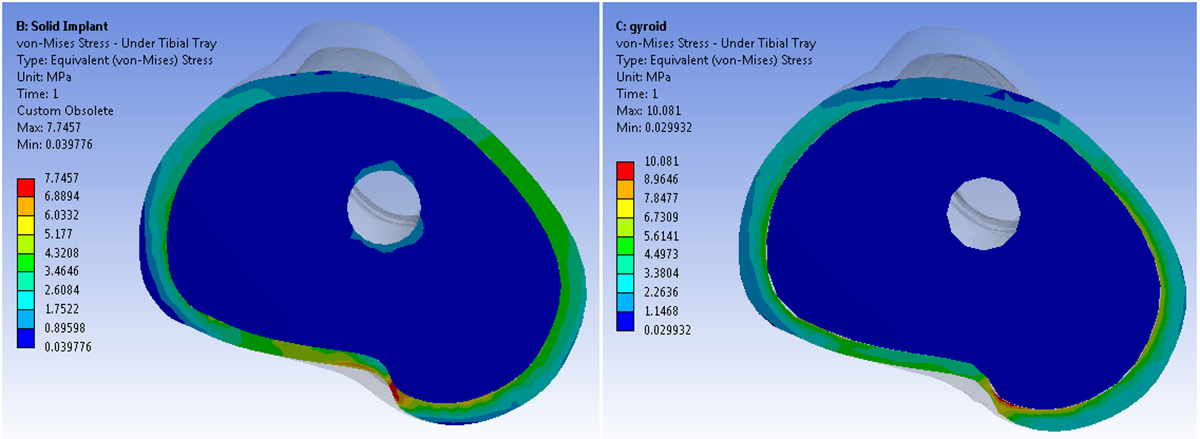

Figure 3. Stress distribution developed in upper surface of bone under the tibial tray for both solid and porous.

Additionally, the maximum shear stress developed in bone/implant interface for both solid and porous cases were 0.84604 MPa and 0.7347 MPa, respectively, as shown in Figure 4.

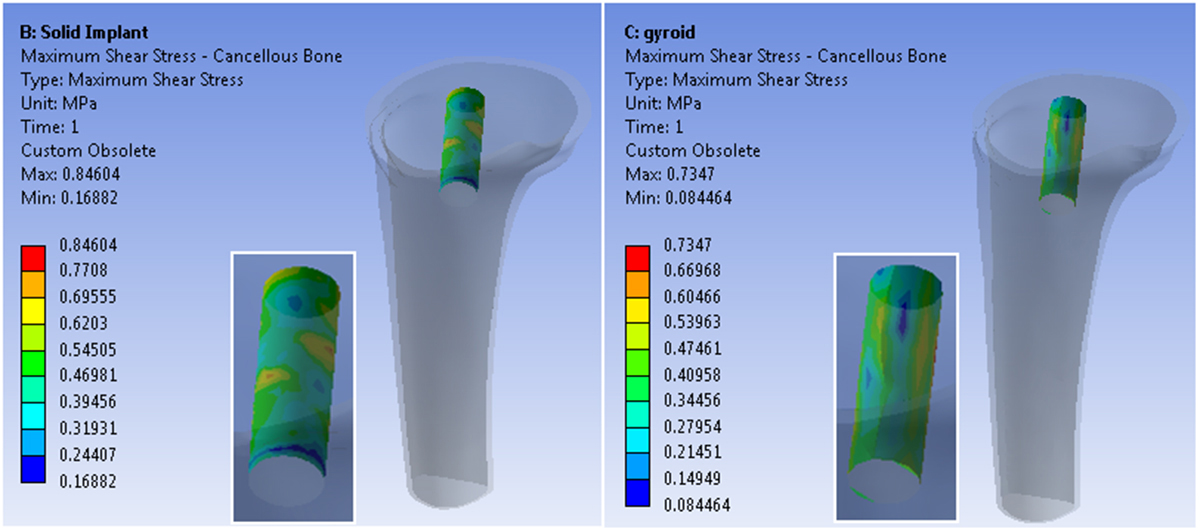

Figure 4. Stress distribution developed in bone/implant interface for both solid and porous cases.

Also, the maximum von-Mises stress developed in bone under the stem tip for both solid and porous cases were 1.5174 MPa and 0.95229 MPa, respectively, as shown in Figure 5.

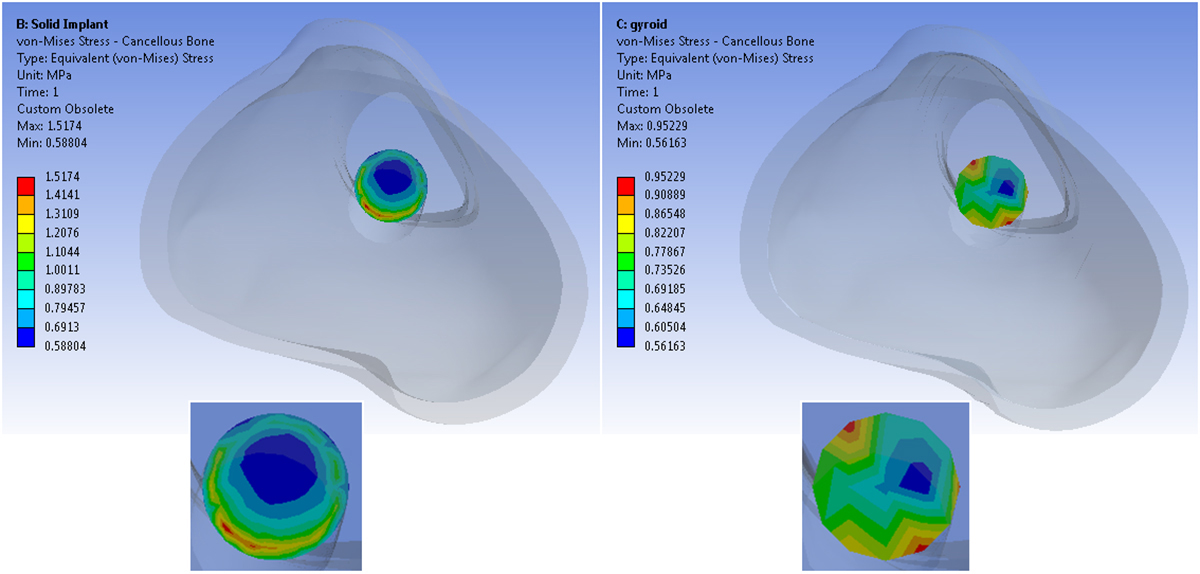

Figure 5. Stress distribution developed in bone under the stem tip for both solid and porous.

The strain energy developed in bone for both solid and porous cases were 0.11907 mJ and 0.22784 mJ, respectively, as shown in Figure 6.

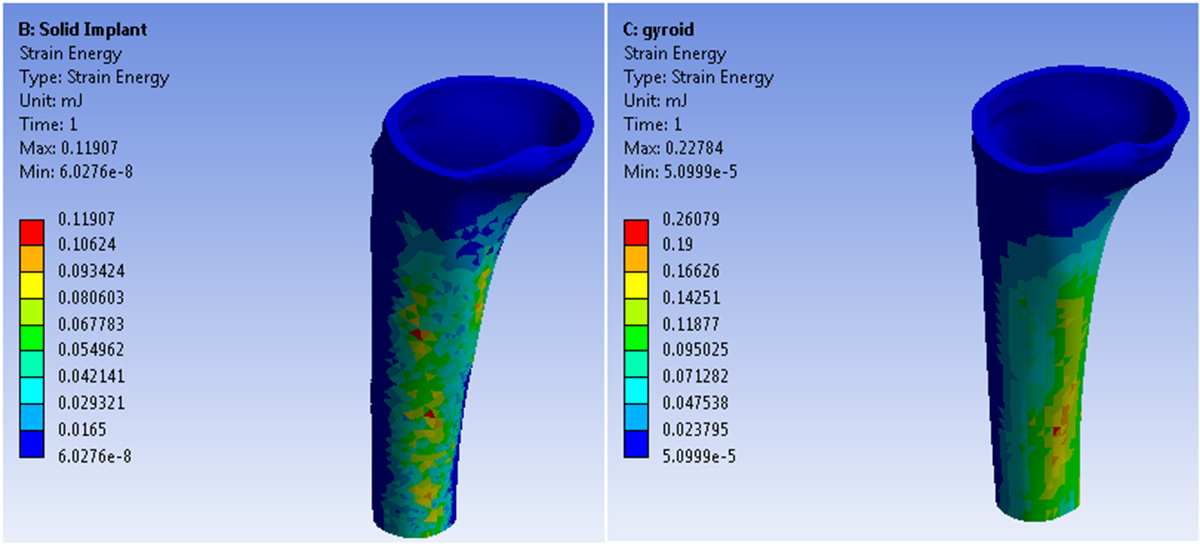

Figure 6. Strain energy distribution developed in the bone for solid and porous.

Finally, the maximum von-Mises stress value for porous gyroid implant is 202.11 MPa, which is approximately 20% of the yield strength of Ti6Al4V (ultimate strength, 970 MPa and yield strength, 930 MPa) [ 21 ]. Accordingly, the minimum safety factor (SF) of the porous gyroid implant was 4.6. A proof of concept model was built using Phrozen Shuffle XL (Phrozen, Hsinchu, Taiwan) as shown in Figure 7a. The average pore size was measured using Quanta FEG-250 Scanning Electron Microscope (Thermo Scientific, Oregon, USA), Figure 7b, and was found to be 577.7733 ± 34.762 µm, which is acceptable relative to the designed value of 500 µm and is within the range suitable for bone ingrowth [ 3 ].

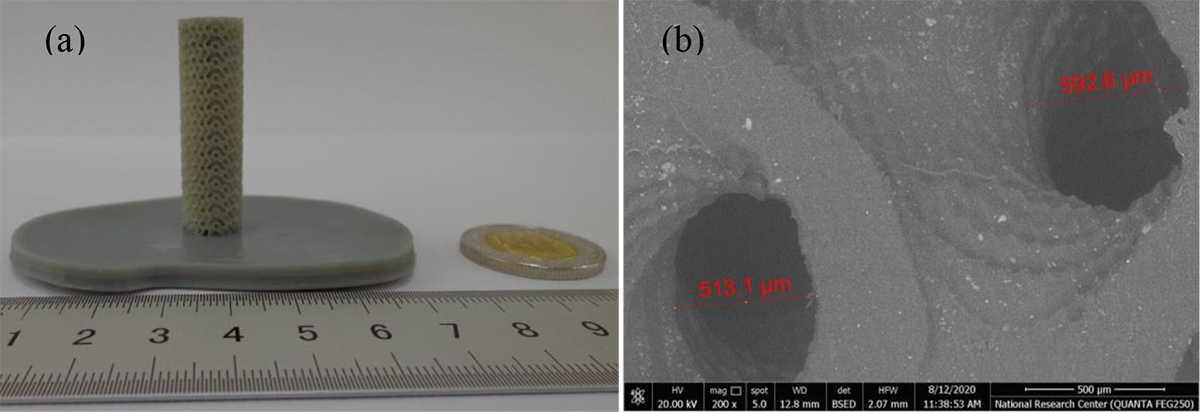

Figure 7. (a) Proof of concept gyroid implant, (b) Scanning Electron Microscope (SEM) image of the pore size.

Discussion

Bone resorption causes clinical and mechanical failure after TKA. The highest probability for bone resorption is under the tibial tray. In this research, gyroid lattice tibial implant was investigated using a numerical analysis in order to compare mechanical behavior against the solid tibial implant under the load applied on the knee.

The results showed a significant increase in maximum von-Mises bone stress under the tibial tray of about 30% after gyroid implantation compared to solid model. This increase is due to reduction in gyroid scaffolds stiffness to fit the human bone. Therefore, higher stress of gyroid implantation reduces the stress shielding compared to full solid model. Reduction in stress shielding leads to bone resorption reduction.

Additionally, shear stress along the bone/stem interface contributes to a mechanical aseptic loosening in the majority of clinical cases. The gyroid scaffolds implant provided 13% reduction in maximum shear stress along the bone/stem interface.

As stress shielding leads to severe pain besides bone resorption, and the need to relieve this pain is a vital demand. This pain is mostly at the tip of the stem implant, where the stresses concentrated at the cancellous bone and may lead to bone hypertrophy. By comparing stress concentration in bone under the stem tip for both solid and porous implantation, results showed an improved distribution for the gyroid implant. The stress concentration in the stem tip after gyroid implantation reduced by 37% compared to full solid implantation, as shown in Figure 5. Due to reduction in stress concentration value, patient’s pain generated within the bone is expected to decrease after gyroid porous implantation compared to solid case.

Strain energy is also a common indicator to judge the performance of implants by comparing the strain energy during loading condition for both full solid and gyroid stem implantation. The results showed an increase in strain energy within the bone after porous implantation about 91%.

The modulus of elasticity and yield strength of human cortical bone range from 4 to 30 GPa and from 20 to 190 MPa, respectively [ 22 ]. Similarly, the modulus of elasticity and yield strength of human cancellous bone range from 0.2 to 2 GPa and 2 to 80 MPa, respectively [ 22 ]. The results demonstrated that the stiffness of the gyroid cellular titanium is reduced by approximately 70% to be comparable to those of human bone, leading to a promising material for load bearing implants. Also, pore size of 500 μm and approximately 77% porosity are suitable for bone ingrowth which increased the bone/implant fixation stability due to enhancing the bone regeneration performance [ 2 ]. In addition, the gyroid porous structure can withstand a maximum load capacity of 5000 N [ 2 ].

Patch-conforming tetrahedral mesh was used to obtain a reliable numerical value of stress in the natural tibia to compare with literature [ 23 ]. FEA showed a matching between the obtained stresses in natural tibia bone and those in literature [ 23 ].

Results prove the possibility of gyroid scaffolds as tailored porosity structures manufactured by additive manufacturing to show promising results for improving tibial-knee orthopedic implants.

Conclusion

This research depends on a numerical mechanical investigation of a gyroid topology tibial-knee implant to match bone stiffness. The results can be summarized in the following remarks.

The maximum von-Mises stress under the tibial tray increased approximately by 30% for gyroid cell model compared to full solid model, leading to less osteopenia.

Also, a micro-motion enhancement is obtained due to reduction in maximum shear stress approximately by 13% along the stem/bone interface after gyroid implantation compared to solid state.

In addition, a reduction in stem tip pain is expected due to reduction in stress concentration at the stem tip approximately by 37% after gyroid scaffolds implantation compared to that of an identical solid titanium implant.

Besides, an increase in strain energy about 91% is obtained within the bone after gyroid tibial implantation compared to solid case.

Finally, the porous gyroid implant design had 4.6 minimum factor of safety and, the pore size of the proof of concept implant was 577.7733 ± 34.762 µm, which is suitable for bone ingrowth.
