Background: The reliability studies are limited to support ultrasound usage during dynamic conditions; for example, unstable sitting position.
Objective: This study aims to examine the reliability of ultrasound measurements of the lumbar multiﬁdus and transversus abdominis during lying and unstable sitting positions in individuals with chronic low back pain (CLBP) and asymptomatic individuals considering abnormal lumbar lordosis.
Material and Methods: In this observational study, intrarater within-day and between-day reliability of muscle thickness and contraction ratio of the lumbar multiﬁdus and transversus abdominis muscles were assessed using ultrasound imaging. In total, 40 participants (27 with CLBP, 13 asymptomatic individuals) with abnormal lumbar lordosis were recruited. The degree of lumbar lordosis has been measured by a flexible ruler. The muscle thickness was assessed at lying and sitting on a gym ball for both muscles in three sessions.
Results: Both groups had well to high ICCs of thickness measurement and contraction ratio in the transversus abdominis and lumbar multiﬁdus muscles during both static (ICC=0.71-0.99) and semi-dynamic conditions (ICC=0.73-0.98). The standard error of measurements and minimal detectable changes were rather small in both groups.
Conclusion: Ultrasound imaging is a highly reliable method to assess muscle thicknesses and contraction ratio of the transversus abdominis and lumbar multiﬁdus during different conditions, even in patients with CLBP and abnormal lumbar lordosis.
Chronic low back pain (CLBP) is one of the leading causes of disability in the world [ 1 ]. Approximately 85% of the individuals with this condition experience low back pain (LBP) with no evident anatomical pathology, which is labeled “nonspecific LBP” [ 2 ]. The transversus abdominis (TrA) and lumbar multifidus (LM) muscles have been proposed to play an important role in spinal stability and shown to have functional deficits in individuals with LBP [ 3 ]. These muscles are commonly assessed by ultrasound imaging (US) to determine muscle morphology and function in both research and clinical practice [ 3 - 5 ].
Thickness change and electromyography (EMG) activity of these muscles are linearly correlated at low contraction levels [ 6 ]. Accordingly, the US assessment of muscle thickness changes reflects muscle activity at low contraction levels [ 7 ]. Also, contraction ratio (CR) defined as contracted thickness/resting of muscle has been suggested as a potential indicator of muscle-tissue status [ 8 ]. However, in addition to validity, it is necessary to establish the reliability of US measurements to ensure proper interpretation of results.
Reliability is considered as a psychometric value, indicating the degree that repeated measurements produce comparable results with a decrease in measurement errors. Previous studies have investigated the reliability of US measures of the TrA [ 9 - 13 ] and LM [ 10 - 12 , 14 ] in individuals with LBP. However, they have mostly used simple tasks such as abdominal drawing-in maneuver (ADIM) [ 11 , 12 ], active straight leg raise (ASLR) [ 11 ], or contralateral arm lifting (CLAT) [ 11 , 12 , 14 ] to activate the deep trunk muscles preferentially. Moreover, they have shown poor to excellent reliability results for US measurements of the abdominal muscles in people with LBP.
Another task frequently used in clinical practice to facilitate truck muscle activity is sitting on an unstable surface (e.g., gym ball) that can automatically activate the TrA [ 15 ] and LM muscles in individuals with Chronic LBP (CLBP) [ 4 ]. Considering lower stability on a gym ball and instantaneously changing of the person’s position compared to stable positions (e.g., CLAT or ASLR), trunk muscle thicknesses may alter in different moments, and the reliability of US measurements may be reduced. The review of the literature showed that there are very few studies that investigated the reliability of US measurements of the LM and TrA muscles in sitting positions with various stability levels [ 4 , 9 ]. Arab et al., found high within- and between-day reliability for US measurements of the abdominal muscle thickness in individuals with and without LBP in sitting positions with different stability levels [ 9 ]. Scott et al. [ 4 ] also reported that intraclass correlation coefficients (ICC) scores were greater than 0.9 for repeated measures of the US intrarater reliability for the LM muscle during sitting on a gym ball in individuals with CLBP. However, those studies have investigated the reliability of US measurements of the TrA [ 9 - 12 , 16 ] and LM muscles [ 10 - 12 , 14 , 16 ] in individuals with CLBP without considering lumbar lordosis.
Among the causes of LBP, the alteration of lumbar lordosis plays a significant role in LBP [ 17 ]. Alteration of lumbar curvature is associated with various factors, including age, gender, lumbo-pelvic muscles, the orientation of the thoracic spine, and pelvis [ 18 - 20 ]. The abdominal and back musculatures affect pelvic inclination and lumbar lordosis [ 18 ]. Individuals with abnormal lumbar lordosis (ABLL) commonly show signs of abdominal and back muscle inefficiency, and previous studies have demonstrated an association between the trunk muscle function and LBP [ 21 , 22 ]. Considering the importance of TrA and LM muscle function in LBP and alteration of lumbar lordosis, the use of gym ball in spine stability exercises may be useful for individuals with CLBP with ABLL to improve balance, posture, and the TrA and LM muscle activation [ 4 , 15 , 23 ]. Also, assessment of these muscle thickness and their CR can provide a better understanding of TrA and LM muscle function in individuals with CLBP with ABLL during sitting on a gym ball.
To the best of our knowledge, there is no study investigating the reliability of US measurements of the LM and TrA muscles in individuals with CLBP with ABLL. Therefore, the current study aimed to investigate collectively intrarater within-day and between-day reliability of US thickness measurements and muscle CR of the LM and TrA muscles in lying and sitting on gym ball in individuals with nonspecific CLBP with ABLL and healthy individuals with ABLL.
Material and Methods

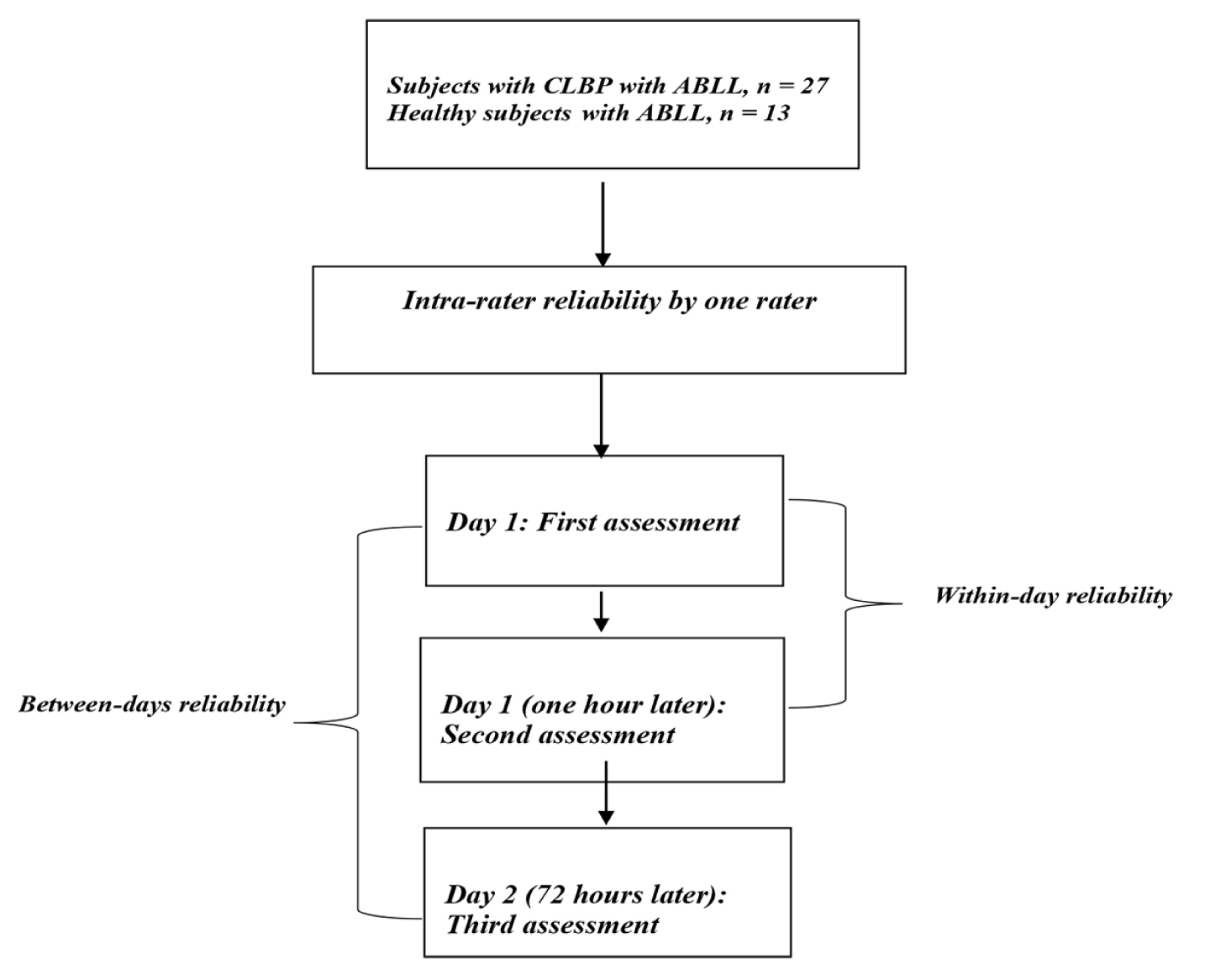

This observational study had a test-retest reliability design to measure intrarater within-day and between-day reliability in individuals with nonspecific CLBP with ABLL and asymptomatic individuals with ABLL.
A convenience sample of 40 individuals aged 25-55 years old participated in this study. Twenty-seven participants who had a diagnosis of CLBP by an orthopedic specialist were consecutively included. The inclusion criteria for the CLBP group with ABLL were localized back pain between the 12th rib and the gluteal folds lasting more than three months, and their lumbar lordosis angle was more or less than the normal range. In this study, the normal lumbar lordosis was considered ranging from 37º to 42º with a standard deviation of 15°, and outside of this range was identified as ABLL [ 24 ]. The lumbar lordosis angle was measured with a flexible ruler. Participants were excluded if they had a history of pain radiating beyond the buttock, sciatica or other radicular involvement, spinal surgery, nerve root compression, neurological deficits, rheumatic diseases, diabetes, pregnancy, lower extremity injuries, neuromuscular diseases or normal lumbar lordosis angle. Also, 13 asymptomatic individuals with ABLL were recruited from the staff and students at the School of Rehabilitation Science as the asymptomatic group with no history of LBP, pain, and dysfunction in the thoracic, pelvis, or lower extremities during the preceding six months. Asymptomatic individuals were excluded if they had a history of LBP during the preceding six months, normal lumbar lordosis angle, and a history of musculoskeletal, cardiopulmonary, or neuromuscular diseases.
The Persian version of the Oswestry Disability Index (ODI) was used to assess disability in participants with CLBP [ 25 ] and the Visual Analogue Scale (VAS) to assess pain intensity. In addition, all participants completed the Tegner Activity Rating Scale to assess the activity level [ 26 ]. The data were collected from July 2017 to September 2018. The characteristics of the participants are listed in Table 1. All participants received information about the study and signed a consent form before participation. Human Ethics Committee of the Iran University of Medical Sciences approved this study, and all procedures were conducted according to the declaration of Helsinki.
|Variable||CLBP (n=27)||Asymptomatic (n=13)||P value|
|Gender (female)||10 (37%)||7 (53.8%)||‡0.314|
|Activity level (Tegner scale)||3.4±0.7||3.1±0.4||‡0.212|
|CLBP: Chronic Low Back Pain, BMI: Body Mass Index, VAS: Visual Analogue Scale, ODI: Oswestry Disability Index. Data are presented as means and standard deviation (Mean±SD). † Independent sample t-test, ‡ Chi-square test.|

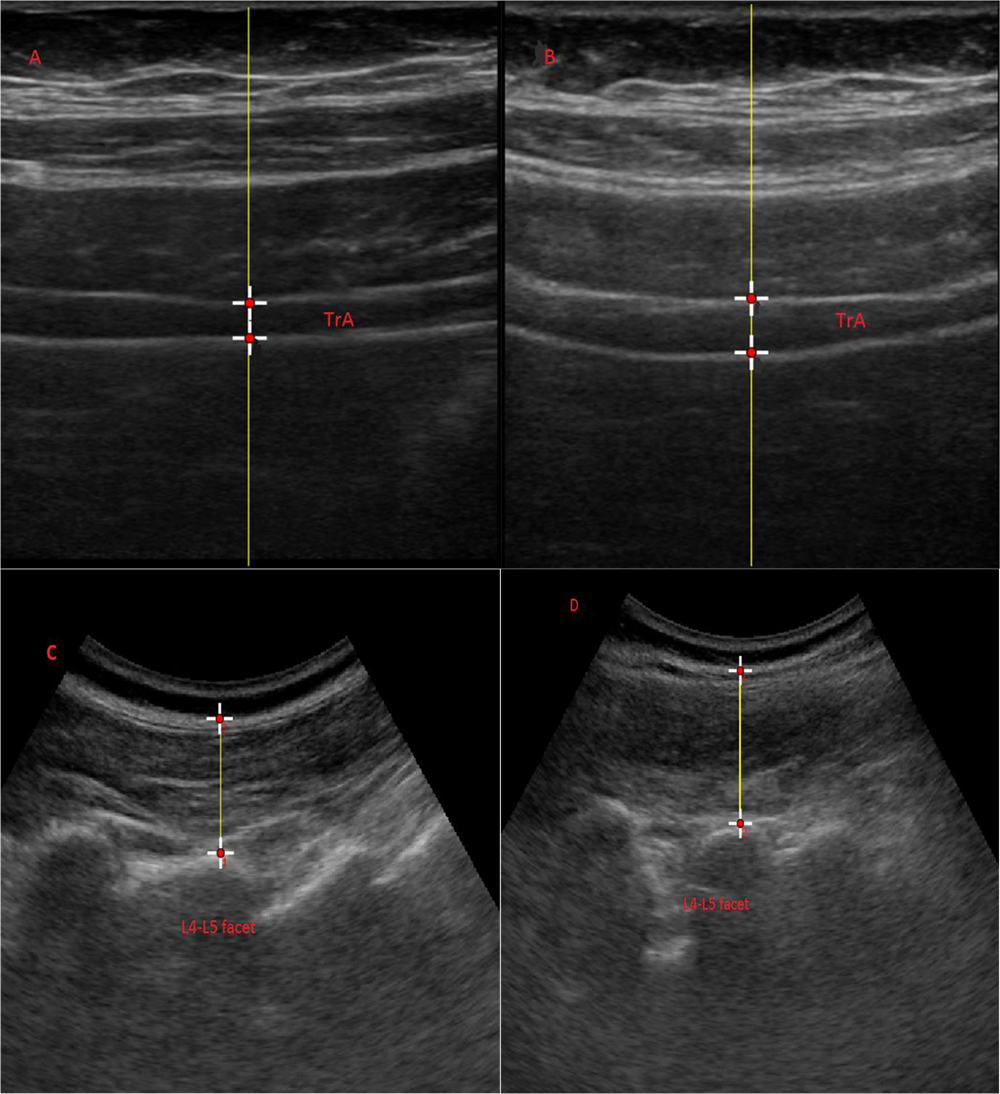

In this study, a diagnostic US imaging unit set in B-mode (Sonoace R7-Samsung Medison, South Korea) was used by a single examiner to record the images. Following previous studies [ 9 , 11 , 15 ], all the US measurements were performed from the right side of participants by a physical therapist specialized in musculoskeletal disorders with one-year US imaging practice. Before imaging, the examiner demonstrated all asked tasks for the participant.
Ultrasound measurement of the TrA muscle
The TrA thickness measurement was obtained at the end of expiration during 1) supine lying with 60° hip flexion as controlled by a goniometer and a pillow under head and hands resting on the chest (static at rest), 2) supine lying during ASLR test (static at contraction), 3) sitting comfortably on a 65cm diameter gym ball with a straight back, feet on the floor and arms resting on the opposite shoulders (semi-dynamic at rest) and 4) sitting on a 65 cm diameter gym ball and lifting the left foot off the floor about 10 cm (semi-dynamic at contraction) [ 15 ].
For the ASLR test, the participant was asked to raise and hold the lower extremity 5 cm off the table without bending the knee [ 13 ], and the height of 5 cm was marked on the wall. For TrA thickness measurement, a linear 50 mm, 5-7.5 MHz probe was placed halfway along a line joining the anterior superior iliac spine to just below the ribcage in the mid-axillary line. This point appeared to represent best the range of thicknesses of abdominal muscles [ 27 ]. To ensure the placement of the probe at the same location, some landmarks such as ASIS, the point below the ribcage, the line between those points, and the halfway point of that line were marked on the skin before initial placement of the probe. Clear images of the muscle thickness were frozen and stored for analysis.
Ultrasound measurement of the LM muscle
The LM thickness measurement was performed at the L4-L5 level during 1) prone lying (static at rest) [ 7 , 28 ], 2) prone lying during the CLAT (static at contraction), 3) sitting on a 65 cm diameter gym ball with feet on the floor (semi-dynamic at rest) and 4) sitting on a 65 cm diameter gym ball and lifting the left foot off the floor (semi-dynamic at contraction). For CLAT, the participants were instructed to lift the contralateral upper limb approximately 5 cm off the table while her/his upper limbs were repositioned overhead, elbows flexed to 90, and shoulders abducted to 120 as measured using a goniometer. The height of 5 cm was marked on the wall before the start [ 7 ]. The spinous process of L5 was marked to guide the placement of the probe before the assessments [ 14 ]. After applying the curvilinear 50 mm, 5 MHz probe longitudinally and centrally on the target spinous process, the probe was moved laterally to identify the relevant facet joint. The probe did not move during the testing procedure.
All US images were processed offline using ImageJ software (Version1.52p; National Institutes. of Health, Bethesda, MD, USA) to calculate the muscle thickness. Linear measurements between the superficial and deep hyperechoic fasciae perpendicular to the muscle fibers in millimeter (mm) were taken for the TrA muscle thickness (Figure 1) [ 13 ]. The thickness of the LM muscle was taken as the linear distance between the tip of the targeted zygapophyseal joint to the inside edge of the superior border of the multifidus muscle (Figure 1) [ 14 ]. The cursor points carefully measured the TrA and LM muscle thicknesses. A vertical straight line through the center of the US image was used to ensure the standardized placement of the measurement line [ 16 ]. The contraction thickness ratio of the TrA and LM muscles were also calculated as contracted thickness/rest thickness [ 29 ].
Lumbar Lordosis Angle
The lumbar lordosis angle was measured using a flexible ruler as a noninvasive method. Two boney landmarks of the spinous process of L1 and S2 were marked on the skin [ 30 ]. Then, the flexible ruler was fixed on the lumbar region over the mentioned landmarks until it shaped lumbar lordosis curvature while the participant stood comfortably on both feet in normal position and fixed his/her eyes on the opposite wall. Then, without changing the shape, the ruler was carefully placed on a white paper, and the curve with the L1 and S1 markers was transferred to the paper. The L1 spot to the S2 spot was connected by a straight line on the paper and was drawn a line perpendicular to its center, passing the curve. These lines were named L and H, respectively. Lumbar lordosis can be calculated by replacing the lengths of these lines in the following equation: θ=4[ARC tag 2H/L]].
The lumbar lordosis angle was measured three times, and the average was calculated for further analysis. Based on previous studies, the lumbar lordosis angle is relatively low in sitting posture compared to standing [ 31 , 32 ]. Thus, the lumbar lordosis angle was measured in the standing posture in the current study before the US measurements. High intra-rater reliability and validity for lumbar lordosis angle measurements have been reported in the standing posture using a flexible ruler [ 24 , 30 , 33 ].
All experimental conditions were performed in a biomechanics laboratory, and all participants (with and without CLBP) were evaluated on three separate sessions with the same procedure. First, the examiner recorded all measurements and repeated the measurements after 1 h to calculate within-day reliability. After three days, the third session was completed for between-day reliability. The testing conditions and muscles were randomly selected to avoid order effects. The overview of participant flow and data collection are shown in Figure 2.
Data were presented as means±standard deviations (SDs) and analyzed using SPSS version 22.0 (IBM Corporation, Chicago, IL, USA). The normality of distribution for the demographic data and US measurements was assessed using the one-sample Kolmogorov-Smirnov test. The differences in quantitative and qualitative demographic data were assessed using independent sample t-test and chi-square tests, respectively. ICC (ICC3,1; method: alpha, two-way mixed, consistency) was used to calculate intrarater within-day and between-day reliability for the average of three thickness measurements and thickness CR of the TrA and LM muscles. Model 3 (ICC3,1) was employed because only one rater assessed all participants. The ICCs are classified as follow: <0.69, poor reliability; 0.70-0.79, fair reliability; 0.80-0.89 good reliability; 0.90-1.00 high reliability [ 34 ]. Standard error of measurement (SEM) and minimal detectable change (MDC) for a 95% confidence interval were also calculated. SEM value indicates the error of the instrument itself, i.e., the precision of the measurement, and MDC value reflects the smallest change in a score within an individual, which can be considered as a real change above measurement error with P<0.05. The statistical level of significance was set at 0.05.
Normal distribution was observed for all variables. Independent sample t-test showed non-significant differences in the BMI or activity level between the CLBP and asymptomatic groups, but the LBP group was older and had higher lordosis than the asymptomatic group. Participants with CLBP also had mild to moderate pain intensity and disability levels (Table 1).
Table 2 presents US measurements of the TrA and LM muscles (Mean±SD) in mm in both groups during different testing postures. The asymptomatic group generally had larger thicknesses of the TrA and LM muscles than the CLBP group. Moreover, the muscles showed higher thicknesses during contraction in the semi-dynamic posture (Table 2).
|Task||First assessment||Second assessment||Third assessment||First assessment||Second assessment||Third assessment|
|CLBP: Chronic Low Back Pain; TrA: Transversus Abdominis; LM: Lumbar Multifidus; Con: Contraction; CR: Contraction Ratio. Data are presented as means and standard deviation (Mean±SD).|
Table 3 presents the ICC3,1, SEM, and MDC values for within-day and between-day reliability of the US thickness measurements of the TrA and LM muscles during different testing postures in each group. As shown in Table 3, the US measurements were well to high for both within-day and between-day comparisons in the CLBP and asymptomatic groups. Overall, we had greater SEMs in the CLBP compared to the asymptomatic group, and the SEM values of the CLBP group were higher in the semi-dynamic posture than the static posture. Likewise, there were higher MDCs in the CLBP group than the asymptomatic individuals, and the MDC values of the CLBP group were higher in the semi-dynamic posture than the static posture (Table 3).
|CLBP: Chronic Low Back Pain, TrA: Transversus Abdominis, LM: Lumbar Multifidus, Con: Contraction, CR: Contraction Ratio, ICC: Intraclass Correlation Coefficient, MDC: Minimal Detectable Change, SEM: Standard Error of Measurement. All SEM and MDC values are in millimeters.|
In the current study, we aimed to collectively evaluate interrater within- and between-day reliability of US thickness measurements for the TrA and LM muscles in various lying and sitting positions in individuals with CLBP and ABLL and asymptomatic individuals with ABLL. The findings showed well to high reliability US measurements for both muscle thickness and CR in both groups. These results confirmed previous findings of utilizing US to measure the thickness and CR of the TrA and LM muscles reliably [ 9 , 11 ]. However, in those studies, the reliability of US thickness measurements was assessed in individuals with and without CLBP, without considering the lumbar lordosis angle as an influencing factor. Despite the effect of the TrA and LM muscle function on the lumbar lordosis angle, the intrarater within-day and between-day reliability in individuals with ABLL were high, and it was comparable with previous reliability studies that have evaluated individuals without considering ABLL. Therefore, US imaging is a reliable tool for evaluation in these patients or healthy people.
Some studies have evaluated the reliability of US for the TrA and LM muscle thickness in individuals with and without LBP during a simple task [ 10 , 12 , 35 ]. Although gym ball is commonly used to improve proprioception and to trigger trunk muscle activity in spinal rehabilitation programs, very few studies have assessed the reliability of these muscles during sitting on a gym ball. Moreover, to our knowledge, no studies have evaluated the reliability of CR of the TrA and LM muscles during sitting on a gym ball in individuals with and without CLBP.
Arab et al., (2013) found high ICC (0.85-0.95) and low SEM (0.19-0.78 mm) and MDC (0.52-2.15 mm) for the TrA muscle during lying and sitting on a gym ball in individuals with and without CLBP [ 9 ]. Similarly, small SEM and MDC scores were observed in the current study, but there were higher SEMs and MDCs in the CLBP group compared to the asymptomatic participants. In the CLBP group, the SEM and MDC values were higher during sitting on gym ball than the lying positions. Based on the SEM and MDC formula, a higher SD causes larger SEM and MDC. There are several possible explanations for higher SD and subsequent larger SEM and MDC in our findings. The large variability of the muscle thicknesses (observed in the current study) may result from multiple modulation strategies of the measured muscles that could increase the SDs. Besides, participants without CLBP may keep harder positions (e.g., sitting on a gym ball) with fewer displacements and less variability than individuals with CLBP. Also, the levels of contraction and thickness changes are different in each posture so that they may affect variability, SD, SEM, and MDC scores.
Based on the lower SEM and MDC scores of CR for the TrA and LM muscles compared to the resting and contracted thicknesses in the current study, it seems that the CR measures (contracted thickness/resting thickness) may be more useful than a single thickness measurement for monitoring of trunk muscle dysfunction in individuals with CLBP with ABLL in clinical practice and research. The reliability of the US in this context is rather scarce. Sarafraz et al., (2018) suggested using the US as a highly reliable method for measuring CR of LM at the L5 vertebral level in patients with CLBP with unilateral radiculopathy and healthy controls [ 36 ]. In total, both groups had higher SEMs for CR of TrA than the ones for LM. These differences may indicate greater changes in muscle thickness over time and/or muscle recruitment patterns of the TrA muscle than the LM muscle. Also, myofascial extensibility, intra-abdominal pressure, and forces from surrounding muscles may introduce variability that might affect TrA muscle thickness but not the LM muscle.
Good to high within-day and between-day reliability of US measurements in this study, even in the unstable sitting postures, may be related to several reasons. The US probe was not displaced as much as possible while recording muscle thickness, clear images were recorded, and cursor points precisely measured muscle thickness. Lower between-day reliability than within-day reliability in the CLBP group may be due to the impairment of deep trunk muscles or inconsistent motor performance due to pain [ 14 ] while in the asymptomatic group, within-day and between-day reliability were high.
The current study has several limitations. This study was not assessed interrater reliability. Moreover, muscle thickness and CR of other trunk muscles such as the oblique muscles or other LM levels were not evaluated. The US examiner was experienced, which could have resulted in high reliability.
The US thickness and CR measurements of the TrA and LM muscles have well to high intrarater within-day and between-day reliability as well as small SEMs and MDCs in static and semi-dynamic postures in individuals with and without CLBP with ABLL. The CR measures may be adequately reliable and helpful to assess the function of the TrA and LM muscles in asymptomatic and individuals with CLBP and ABLL. Therefore, this study suggests that real-time US imaging can be reliably used to assess the thickness and activity of the TrA and LM muscles in individuals with and without CLBP with ABLL.
This study was funded by Iran University of Medical Sciences. We thank Dr. Hedayat Abbastabar for Statistical Consulting.
A. Bozorgmehr and I. Ebrahimi Takamjani were responsible for the study design. A. Bozorgmehr and M. Akbari collected and prepared the data. H. Mohsenifar, R. Salehi, O. Rasouli and M. Akbari analyzed and interpreted the data. I. Ebrahimi Takamjani, R. Salehi and O. Rasouli were responsible for writing and redrafting the manuscript. All authors read and approved the final manuscript.
The Ethical Committee of Iran University of Medical Sciences (IUMS), approved the protocol of the study (Ethic code: IR.IUMS.REC 1396.9221342201).
All the participants have written informed consent in the project.
This research was supported by Iran University of Medical Sciences with grant number 1396.9221342201.
Conflict of Interest
- Hurwitz EL, Randhawa K, Yu H, Cote P, Haldeman S. The Global Spine Care Initiative: a summary of the global burden of low back and neck pain studies. Eur Spine J. 2018; 27(Suppl 6):796-801. DOI | PubMed
- Villafane JH, Zanetti L, Isgro M, Cleland JA, Bertozzi L, Gobbo M, et al. Methods for the assessment of neuromotor capacity in non-specific low back pain: Validity and applicability in everyday clinical practice. J Back Musculoskelet Rehabil. 2015; 28(2):201-14. DOI | PubMed
- Kiesel KB, Uhl T, Underwood FB, Nitz AJ. Rehabilitative ultrasound measurement of select trunk muscle activation during induced pain. Man Ther. 2008; 13(2):132-8. DOI | PubMed
- Scott IR, Vaughan AR, Hall J. Swiss ball enhances lumbar multifidus activity in chronic low back pain. Phys Ther Sport. 2015; 16(1):40-4. DOI | PubMed
- Arab AM, Shanbehzadeh S, Rasouli O, Amiri M, Ehsani F. Automatic activity of deep and superficial abdominal muscles during stable and unstable sitting positions in individuals with chronic low back pain. J Bodyw Mov Ther. 2018; 22(3):627-31. DOI | PubMed
- Hodges PW, Pengel LH, Herbert RD, Gandevia SC. Measurement of muscle contraction with ultrasound imaging. Muscle Nerve. 2003; 27(6):682-92. DOI | PubMed
- Kiesel KB, Uhl TL, Underwood FB, Rodd DW, Nitz AJ. Measurement of lumbar multifidus muscle contraction with rehabilitative ultrasound imaging. Man Ther. 2007; 12(2):161-6. DOI | PubMed
- Caresio C, Molinari F, Emanuel G, Minetto MA. Muscle echo intensity: reliability and conditioning factors. Clin Physiol Funct Imaging. 2015; 35(5):393-403. DOI | PubMed
- Arab AM, Rasouli O, Amiri M, Tahan N. Reliability of ultrasound measurement of automatic activity of the abdominal muscle in participants with and without chronic low back pain. Chiropr Man Therap. 2013; 21(1):37. Publisher Full Text | DOI | PubMed
- Djordjevic O, Djordjevic A, Konstantinovic L. Interrater and intrarater reliability of transverse abdominal and lumbar multifidus muscle thickness in subjects with and without low back pain. J Orthop Sports Phys Ther. 2014; 44(12):979-88. DOI | PubMed
- Gibbon KC, Debuse D, Hibbs A, Caplan N. Reliability and Precision of Sonography of the Lumbar Multifidus and Transversus Abdominis During Dynamic Activities. J Ultrasound Med. 2017; 36(3):571-81. DOI | PubMed
- Koppenhaver SL, Hebert JJ, Fritz JM, Parent EC, Teyhen DS, Magel JS. Reliability of rehabilitative ultrasound imaging of the transversus abdominis and lumbar multifidus muscles. Arch Phys Med Rehabil. 2009; 90(1):87-94. DOI | PubMed
- Teyhen DS, Williamson JN, Carlson NH, Suttles ST, O’Laughlin SJ, Whittaker JL, et al. Ultrasound characteristics of the deep abdominal muscles during the active straight leg raise test. Arch Phys Med Rehabil. 2009; 90(5):761-7. DOI | PubMed
- Wallwork TL, Hides JA, Stanton WR. Intrarater and interrater reliability of assessment of lumbar multifidus muscle thickness using rehabilitative ultrasound imaging. J Orthop Sports Phys Ther. 2007; 37(10):608-12. DOI | PubMed
- Rasouli O, Arab AM, Amiri M, Jaberzadeh S. Ultrasound measurement of deep abdominal muscle activity in sitting positions with different stability levels in subjects with and without chronic low back pain. Man Ther. 2011; 16(4):388-93. DOI | PubMed
- Costa LO, Maher CG, Latimer J, Hodges PW, Shirley D. An investigation of the reproducibility of ultrasound measures of abdominal muscle activation in patients with chronic non-specific low back pain. Eur Spine J. 2009; 18(7):1059-65. Publisher Full Text | DOI | PubMed
- Villafane JH, Gobbo M, Peranzoni M, Naik G, Imperio G, Cleland JA, et al. Validity and everyday clinical applicability of lumbar muscle fatigue assessment methods in patients with chronic non-specific low back pain: a systematic review. Disabil Rehabil. 2016; 38(19):1859-71. DOI | PubMed
- Kim HJ, Chung S, Kim S, Shin H, Lee J, Kim S, et al. Influences of trunk muscles on lumbar lordosis and sacral angle. Eur Spine J. 2006; 15(4):409-14. Publisher Full Text | DOI | PubMed
- Been E, Kalichman L. Lumbar lordosis. The Spine Journal. 2014; 14(1):87-97.
- Bozorgmehr A, Zahednejad S, Salehi R, Ansar NN, Abbasi S, Mohsenifar H, et al. Relationships between muscular impairments, pain, and disability in patients with chronic nonspecific low back pain: a cross sectional study. J Exerc Rehabil. 2018; 14(6):1041-7. Publisher Full Text | DOI | PubMed
- Ferrari S, Manni T, Bonetti F, Villafane JH, Vanti C. A literature review of clinical tests for lumbar instability in low back pain: validity and applicability in clinical practice. Chiropr Man Therap. 2015; 23:14. Publisher Full Text | DOI | PubMed
- Langella F, Villafane JH, Lafage V, Smith JS, Shaffrey C, Kim HJ, et al. Xipho-pubic angle (XPA) correlates with patient’s reported outcomes in a population of adult spinal deformity: results from a multi-center cohort study. Eur Spine J. 2018; 27(3):670-7. DOI | PubMed
- Elliott TL, Marshall KS, Lake DA, Wofford NH, Davies GJ. The Effect of Sitting on Stability Balls on Nonspecific Lower Back Pain, Disability, and Core Endurance: A Randomized Controlled Crossover Study. Spine (Phila Pa 1976). 2016; 41(18):E1074-80. DOI | PubMed
- Nourbakhsh MR, Moussavi SJ, Salavati M. Effects of lifestyle and work-related physical activity on the degree of lumbar lordosis and chronic low back pain in a Middle East population. J Spinal Disord. 2001; 14(4):283-92. DOI | PubMed
- Mousavi SJ, Parnianpour M, Mehdian H, Montazeri A, Mobini B. The Oswestry Disability Index, the Roland-Morris Disability Questionnaire, and the Quebec Back Pain Disability Scale: translation and validation studies of the Iranian versions. Spine (Phila Pa 1976). 2006; 31(14):E454-9. DOI | PubMed
- Tegner Y, Lysholm J. Rating systems in the evaluation of knee ligament injuries. Clin Orthop Relat Res. 1985; 198:43-9. PubMed
- Rankin G, Stokes M, Newham DJ. Abdominal muscle size and symmetry in normal subjects. Muscle Nerve. 2006; 34(3):320-6. DOI | PubMed
- Stokes M, Hides J, Elliott J, Kiesel K, Hodges P. Rehabilitative ultrasound imaging of the posterior paraspinal muscles. J Orthop Sports Phys Ther. 2007; 37(10):581-95. DOI | PubMed
- Linek P, Saulicz E, Wolny T, Mysliwiec A, Kokosz M. Lateral abdominal muscle size at rest and during abdominal drawing-in manoeuvre in healthy adolescents. Man Ther. 2015; 20(1):117-23. DOI | PubMed
- Hart DL, Rose SJ. Reliability of a noninvasive method for measuring the lumbar curve*. J Orthop Sports Phys Ther. 1986; 8(4):180-4. DOI | PubMed
- Cho IY, Park SY, Park JH, Kim TK, Jung TW, Lee HM. The Effect of Standing and Different Sitting Positions on Lumbar Lordosis: Radiographic Study of 30 Healthy Volunteers. Asian Spine J. 2015; 9(5):762-9. Publisher Full Text | DOI | PubMed
- Lord MJ, Small JM, Dinsay JM, Watkins RG. Lumbar lordosis. Effects of sitting and standing. Spine (Phila Pa 1976). 1997; 22(21):2571-4. DOI | PubMed
- Youdas JW, Suman VJ, Garrett TR. Reliability of measurements of lumbar spine sagittal mobility obtained with the flexible curve. J Orthop Sports Phys Ther. 1995; 21(1):13-20. DOI | PubMed
- Weir JP. Quantifying test-retest reliability using the intraclass correlation coefficient and the SEM. J Strength Cond Res. 2005; 19(1):231-40. DOI | PubMed
- Hebert JJ, Koppenhaver SL, Parent EC, Fritz JM. A systematic review of the reliability of rehabilitative ultrasound imaging for the quantitative assessment of the abdominal and lumbar trunk muscles. Spine (Phila Pa 1976). 2009; 34(23):E848-56. DOI | PubMed
- Sarafraz H, Hadian MR, Ayoobi Yazdi N, Olyaei G, Bagheri H, Jalaie S, et al. Test-retest reliability of nerve and muscle morphometric characteristics utilizing ultrasound imaging in individuals with unilateral sciatica and controls. Chiropr Man Therap. 2018; 26(1):47. Publisher Full Text | DOI | PubMed
