Introduction

Computed tomography (CT) using ionizing radiation, is widely used as an appropriate choice for the diagnosis of many diseases [ 1 ], and is known as one of the main contributors to the collective effective dose and also accounts for approximately 68% of the total medical radiation exposure in the world [ 2 ].

Although in CT procedures, the collective effective dose is higher compared to other modalities such as common radiographies, the number of CT examinations is continually increasing [ 2 - 4 ] at an annual rate of 10 percent in the U. S. [ 5 ] due to the higher diagnostic value of CT images. Since ionization radiation can cause genetic side effects or carcinogenesis which may appear in the newborns [ 6 ], concern about it has increased [ 7 , 8 ]. In addition, with the introduction of multi-detector CT (MDCT) for the clinical applications, a further increase in the overall number of CTs has been reported [ 7 ].

CT scan from the chest is a primary diagnostic tool for common examination for diagnosing the diseases of the lung and other organs located in the chest region [ 9 ]. Protecting the organs especially sensitive ones from radiation damage during CT examinations is crucial [ 10 ]. Testes are one of the radiosensitive organs and regarding the International Commission on Radiation Protection (ICRP) reports, the weighting factor of this organ is higher than other sensitive organs, which is equal to 0.2 [ 11 ], and it contributes 20% of the effective whole-body dose [ 12 ].Therefore, any methods which can reduce the dose without affecting the diagnostic image quality should be performed.

The patient’s dose in CT procedures consists of primary X-ray beam and scatter components; therefore, radiation shielding is a challenging issue [ 13 ]. Reducing the sensitive organs’ doses by appropriate easy applicable shields can be helpful in this regard [ 4 , 14 ]. There are various shields designed to reduce gonadal doses, including lead blankets, clam-shell style shields, bismuth shielding, male testicular shields, and flexible shields [ 14 ]. However, these shields are not widely used in routine CT examinations due to their hard placement, lack of hygienic tips, and accessibility.

In several studies, the testes’ shielding effects during CT scans have been investigated. For example, Iball et al. [ 10 ] assessed abdominal lead shielding on the gonad doses during the chest CT examination using RANDO phantom and TLDs. In another study [ 15 ], the authors estimated the gonads’ doses by an ion chamber in the presence of surface lead shield in RANDO anthropomorphic phantom during different CT scan examinations.

The previous studies were conducted on phantoms [ 10 , 14 ] or a particular testicular shield which is hard to use [ 12 , 16 ]. However, in the present study, we investigated the dose reduction effect of lead apron in the testicular region during chest MDCT procedures. The advantage of our method is that the shielding instrument namely lead apron, positioned on the patients’ testis regions, is accessible in all CT centers.

Material and Methods

In this measurement study, for the purpose of measuring the testes surface dose during the chest CT scan, 30 patients were involved in the presence of lead apron folded and positioned on the Patients’ testis regions. A MDCT scanner (16 slice Somatom Emotion 16, Siemens, Germany) was used for scanning, and radiation dose values were measured using thermoluminescent dosimeter (TLD) chips.

Patients groups

Thirty male patients with age ranging from 20 to 70 years old and the mean body mass index (BMI) of 26.2 ± 4.6 kg/m² (median 26) were chosen for this study. The patients were informed and satisfied about how the procedure would be performed. The study was carried out following the National Research Ethics Board approval with the registration number of “IR.MUBABOL.HRL.REC.1398.194”.

The patients with special problems, including solitary testes, scrotal masses, scrotal skin infections, or lesions were excluded in this study. Although gonad protection is more important in the pediatric groups, this age group was not investigated because of the difficulty of obtaining children’s parental approval.

Scan protocol

The parameters of the chest CT scanning protocols with a MDCT scanner are indicated in Table 1. All scans were without any contrast material and the scan range was from lung apices to lung bases, which yielded the mean scan length of 33 ± 2.1 cm. The patients were placed in supine position.

TLD dosimetry

TLD chips are produced by Harshaw Company (Thermo Electron Corporation, Reading, UK) and made of LiF, Mg and Ti with the thickness of 0.9 mm and size of 3 × 3 mm². All TLDs were annealed in a TLD annealing furnace (1 h at 400 °C and 2 h at 100 °C) before the measurements, and also prior to the readout, the dosimeters were pre-heated at 100°C for 20 minutes (min). The TLDs were exposed using an 80 kVp diagnostic X-ray beam, resulting in the use of a sensitivity correction, in a way that, the TLDs which were over or under sensitive by greater than 2 standard deviations were eliminated.

The TLD chips’ calibration was done based on Groves et al. [ 17 ] study. In summary, the Element Correction Coefficient (ECC) values were obtained to increase the reproducibility for each TLD. Moreover, a Barracuda dosimeter (RTI Electronics, Sweden) calibrated at the Secondary Standard Dosimetry Laboratory (SSDL) was used for the verification of the dose measurement. The TLDs were irradiated three times in free-in-air conditions at the center of rotation of the CT scanner, and the mean readout values of the TLDs (TLD mean) were obtained. The ECC for each TLD (TLD_i) was calculated using the following Equation 1:

${\mathrm{ECC}}_i={\mathrm{TLD}}_i/{\mathrm{TLD}}_{\mathrm{mean}}$ (1)

In the next step, to obtain the calibration factor (CF), the TLDs (ECC close to 1) were exposed three times to different selected doses, and the average of TLD readouts was calculated. Then the dose (mGy) versus TLD reading (nC) was plotted, and the CF was obtained by the slope of the curve. It is notable that the readout and analysis of the TLDs were performed at the National Medical Physics Research Center after 24 h, which has a special protocol for TLD analysis. Furthermore, a pair of TLD chips was located in the CT room far from the source of radiation (>3 m) for measuring the background dose for each patient. The uncertainty for the determined dose of TLDs was estimated from the standard error of repeated measurements and obtained at ± 2%. Finally, the surface dose for the organ was obtained by multiplying the mean values of the TLD readouts, ECC, and CF values.

TLDs location on the lead apron

Two lead aprons with a thickness of 0.5 mm used in the radiography centers for general shielding purposes were folded around the patient’s testis regions (Figure 1). The superior edge of the shield was placed at the top of iliac crest and the inferior edge was approximately in the middle of the femur. The TLDs were positioned by a technician. Two groups of TLDs were applied during the chest scan to have a comparison and definition of the protection effect of the shield. To measure the dose values from testicular region, six TLD-100 chips were used for each patient. This was done in a way that three TLDs were attached to the top surface of the apron as an indicator of testes’ surface doses without shielding, and three TLDs were positioned under the apron (at the same location) as an indicator of the doses with shielding (Figure 1; A and B). The TLDs were embedded in plastic covers and glued to the desired points with leucoplast glue.

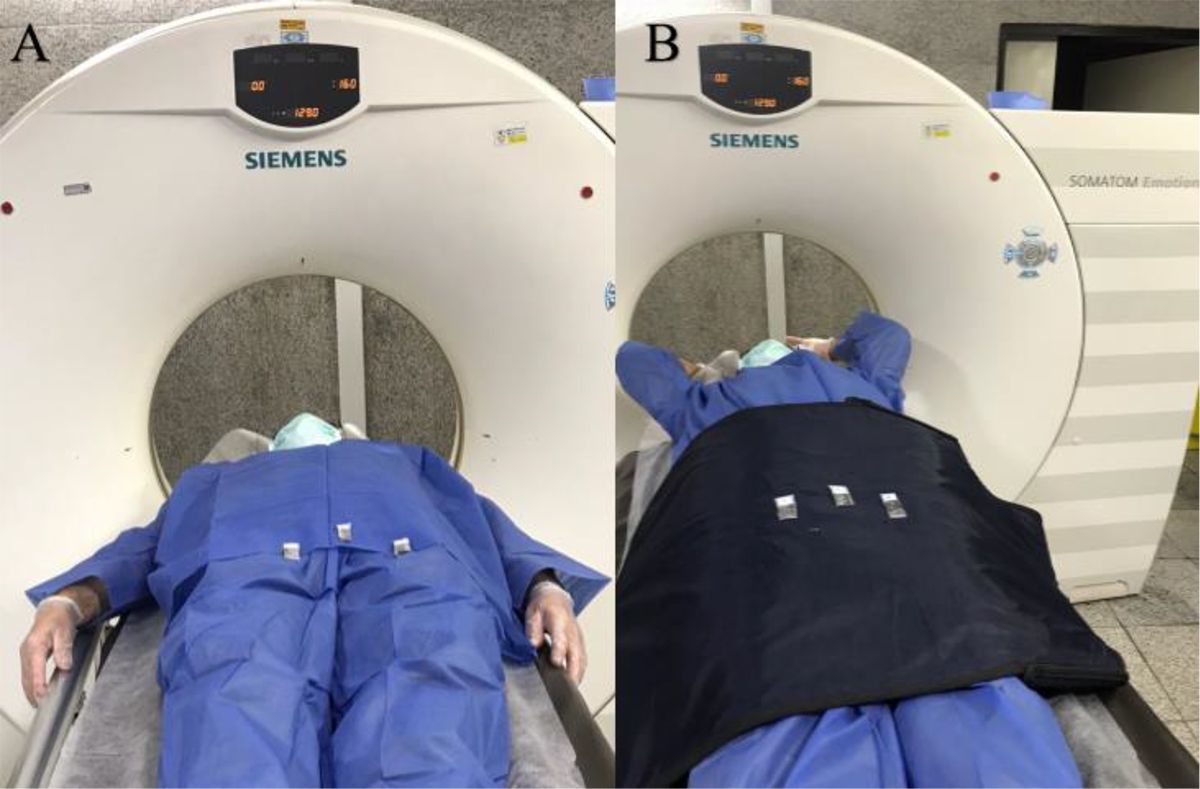

Figure 1. The locations of the thermoluminescent dosimeters (TLDs). Without lead apron (A) and with lead apron (B).

Heritable risk estimation

Regarding the “linear no threshold theory” [ 6 ], imaging with CT scanners, as medical devices using ionization radiation, can cause genetic and heritable side effects. The risk (R_T) of genetic effects in future generations was obtained by multiplying the mean equivalent dose to the testes (H_T) by the risk conversion factors (ƒ_T) obtained from New ICRP recommendations [ 18 ] as follows Equation 2:

$R_T=H_T/{ƒ}_T$ (2)

Statistical analysis

Radiation doses to the testicles with and without the presence of the lead shielding were compared using the Wilcoxon test performed using SPSS software version 16 (IBM, USA). The level of statistical significance was set at P < 0.05.

Results

Patient compliance was very good and none of the patients exhibited pain during the shield positioning. Figure 2 illustrates the average and standard deviation (± SD) of testicular doses with and without using the lead apron shielding. According to Figure 2, it is notable that there is a variation between the patients’ doses. The results of the TLDs showed that the mean dose of the testicular region was 0.20 ± 0.04 and 0.46 ± 0.04 mGy, in the presence of the apron shield versus without using the shield, respectively. This demonstrates that using lead apron shielding reduced the radiation exposure of the testes by 56%. Also, it is notable that the reduction was statistically significant (p < 0.001). Furthermore, in the current study, the heritable risk probability was obtained at 2.0 ×10^-5 % and 4.6 ×10^-5 % for the patients using the apron shield in comparison to without using it, respectively.

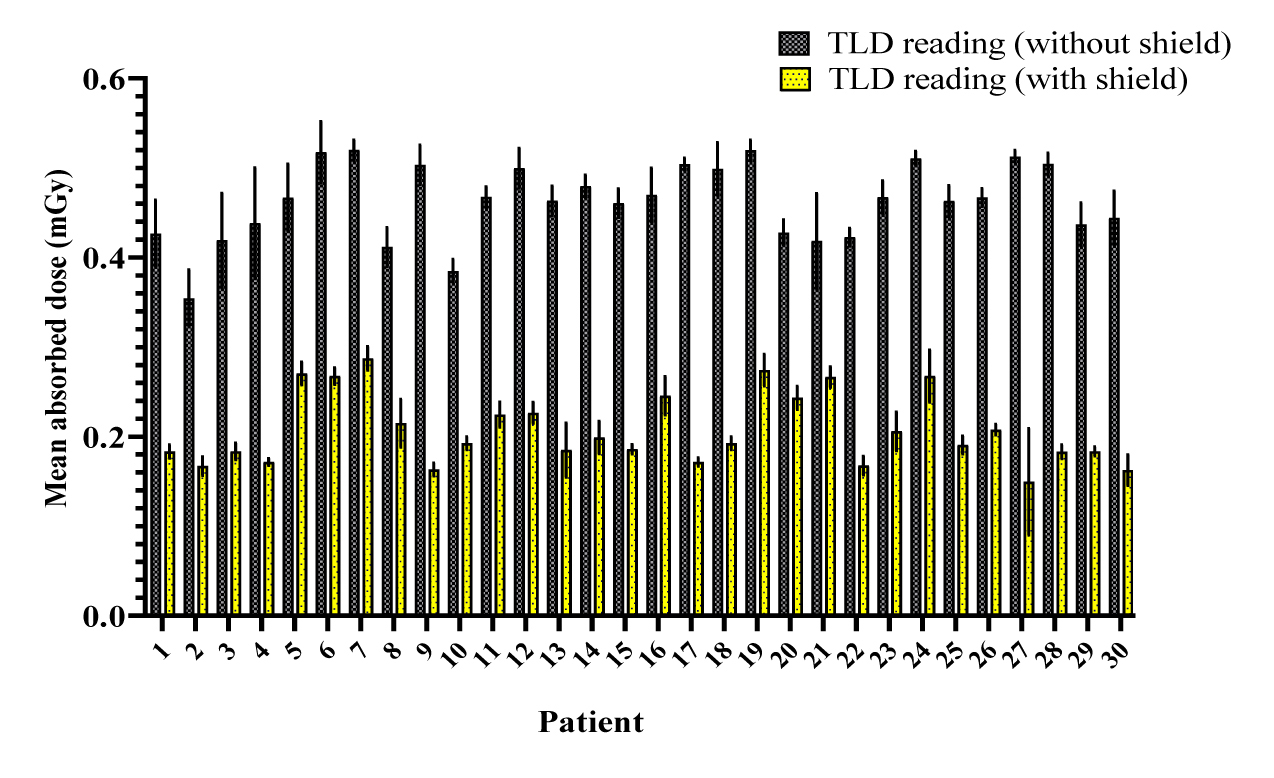

Figure 2. The mean surface dose (± SD) at the testicular region with and without the lead apron.

Discussion

The number of CT examinations has increased in the last decade, consequently, and the incidence of secondary cancer and heritable risks have been dramatically incremented [ 19 ]. Therefore, according to the ALARA (as low as reasonably achievable) principle, it is important that the patient exposure to radiation should be avoided unless it is deemed necessary [ 20 , 21 ].

Based on the National Radiological Protection Board (NRPB) recommendations, there is no such thing as a “harmless radiation dose” [ 8 ]. Since testes are accounted as one of the most sensitive organs, the use of shielding techniques is recommended as far as possible in all interventional procedures [ 10 , 12 , 16 ]. Although there are various shields designed for gonadal dose reduction, these shields are not widely used in CT centers, due to their difficulty of use and accessibility in imaging centers. For this reason, we decided to use the common lead apron as a testicle shield positioned in the testis region during chest CT scans.

The leaf shields were used in CT scan procedures, mainly block anterior irradiations, however, lateral and posterior X-rays is not blocked by these shields. For this reason, we have folded the apron two times (thickness = 1 mm Pb) in the lateral section of the patients to prevent higher laterally and posteriorly oriented radiation exposure.

Although in the current study, the BMIs for all patients were approximately the same, they can still affect the dose values. This is due to the fact that the absorption of scattered radiation would be higher in thick patients compared to thin patients, and this phenomenon can affect TLD readouts. The previous studies have reported that the body weight or BMI can change the gonadal dose values although it is not significant [ 12 , 22 ]. Furthermore, CT dose index (CTDI) and dose length product (DLP) can vary based on patient sizes, consequently, these are other factors which influence the results [ 23 ]. We tried to reduce these factors by comparing the dose values in the presence and absence of the lead shielding for the same the patient.

In Table 2, we have summarized some exemplary studies that have investigated the various shields’ effects on the testicular dose from CT scans in adult patients/phantoms. In Table 2, the results of the literature reports, including the type of study (patient or phantom), scanning protocol, testicular ranging dose (mSv), and the percentage of dose reduction are depicted. According to Table 2, most of the previous studies have investigated the testicular dose using the phantom, except Hohl et al. [ 12 ] and Sancaktutar et al. [ 16 ] studies assessing the testicular dose on the patients at routine abdominopelvic MDCT examinations. But, in this study, we calculated the patients’ testicular dose during the routine chest clinical MDCT examinations.

Our results showed that the lead apron shield can reduce the testicular dose significantly by 56%. The dose reduction, type of study, CT scan, and shield have been expressed and compared with other related studies below.

Price et al. [ 24 ] have applied a wraparound protective device for shielding male Alderson phantom gonads. They reported that the doses to the gonads were reduced by 77-93% in the presence of the shield during abdominal and pelvic CT examinations. In another study, Hidajat et al. [ 25 ] used a Alderson-Rando phantom, and they obtained a 95% reduction dose using a 1 mm lead testicular capsule during the whole abdomen CT scan.

The dose reduction for testis was 96% in Grobe et al. [ 22 ] study during the abdomen/upper pelvis CT scan, which is the highest dose reduction among the other studies expressed in Table 2. In their study, 51 male patients participated and used a 1 mm lead equivalent of the testicle shield (made of single-ply lead rubber). Hohl et al. [ 12 ] estimated the testicular dose on the patients during routine abdominopelvic CT scans and used 1 mm lead capsule shields. They found that the dose decreased by 87% to the gonads in the presence of the shield. Testicular dose reduction was 90.2% in Sancaktutar et al. [ 16 ] study. In their study, the dose decreased from 69 to 6.8 mSv when 8 fluoroscopy radiation-protection gloves (0.35 mm lead equivalent) were used during abdominopelvic CT scan on the patients.

A study by Iball et al. [ 10 ] is closely similar to our research. They investigated the testicular dose reduction when they used lead apron as abdominopelvic shielding during chest CT examination. However, they used a RANDO phantom for scanning procedures. The maximum dose reduction was obtained at 93%.

The main reasons for the differences in dose reduction values in the previous studies can be related to different shielding types, the region of imaging, CT parameters, and machine types.

The exposure to ionizing radiation during medical imaging procedures may generate biological effects such as cell death, degradation of DNA, and tumorigenesis [ 26 ]. Consequently, these effects can increase the individual’s lifetime risk of developing cancer or a hereditary effect in future generations [ 27 ]. In the ICRP reports in 2008 (New ICRP recommendations) [ 18 ], the heritable risks are the major random radiation damage considered for testicles in low dose irradiations. Therefore, in the current research, we evaluated the heritable risks induced by chest CT scans with or without using the lead apron shielding. According to the results, although this risk was very low without lead apron, the heritable risks was reduced significantly in the presence of the apron on the testis regions. According to the following statement from ICRP recommendation [ 27 ]: patient radiation doses must be maintained at a minimum value to ensure maximum patient protection. Therefore, it seems that decreasing the dose and heritable risk as much as possible are important during the medical ionization radiation procedures.

We did not investigate the radiation dose in pediatric testicular regions, and women gonadal surface dose using common lead apron shielding. Therefore, for future research, it is suggested that the lead apron shield should be used for a large number of children and women, and dose reduction be compared with adult patients as well. In addition, dose reduction in other organs like kidney and liver can be assessed for further examination of the lead apron usage.

Conclusion

In this study, the researchers focused on reducing the testicular region dose using the lead gown, used as a common apron in radiology centers. The results demonstrated that the dose in testicular region decreased significantly during the chest MDCT scan when the shield was used. It is notable that this decrease was 56% (2.3 times). Therefore, we recommend routine use of lead apron shield as an appropriate gonadal shield in male patients undergoing chest MDCT examinations.
