An Optimal Approach in Selecting Embryo for In-Vitro Fertilization (IVF) Based on Deep Learning

Document Type : Original Research

Authors

1 Artificial Intelligence and Machine Learning Research Laboratory, Azarbaijan Shahid Madani University, Tabriz, Iran

2 Faculty of Information Technology and Computer Engineering, Azarbaijan Shahid Madani University, Tabriz, Iran

10.31661/jbpe.v0i0.2410-1832

Abstract

Background: About 14% of couples experience infertility, and In Vitro Fertilization (IVF) has become one of the most widely used treatment options. However, the overall success rate of IVF remains relatively low, at around 30%. At present, viable embryos are typically selected on the fifth day based primarily on morphological assessment, a method that is both subjective and limited in accuracy. Considering the substantial financial, physical, and emotional costs associated with failed IVF attempts, there is a pressing need for more reliable and effective embryo selection techniques.
Objective: This study aimed to increase the accuracy of embryo selection in IVF based on a deep learning-based transfer with the GoogLeNet architecture.

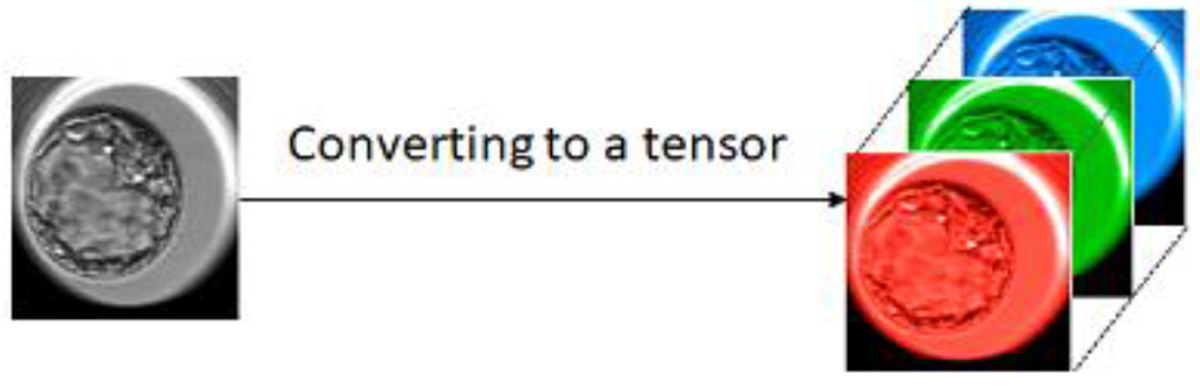

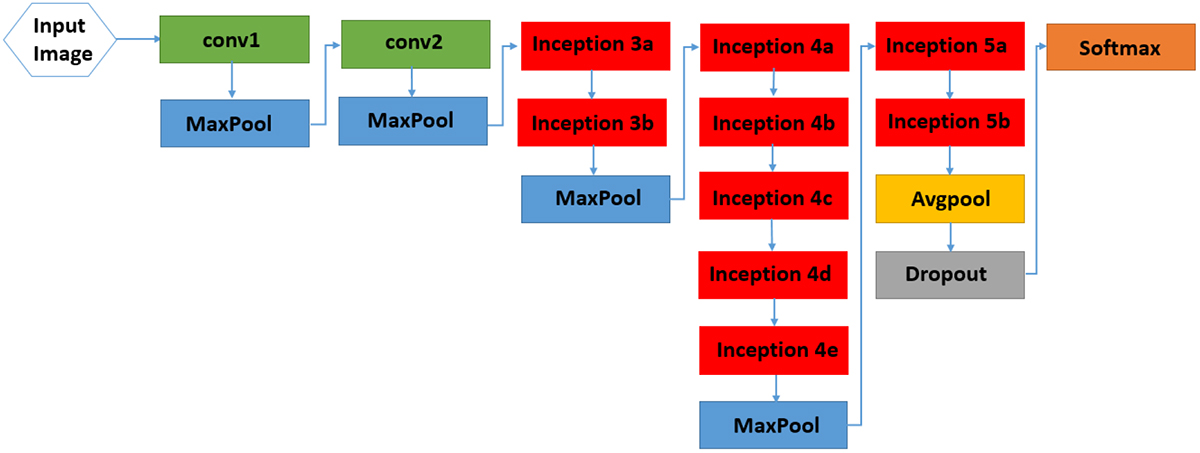

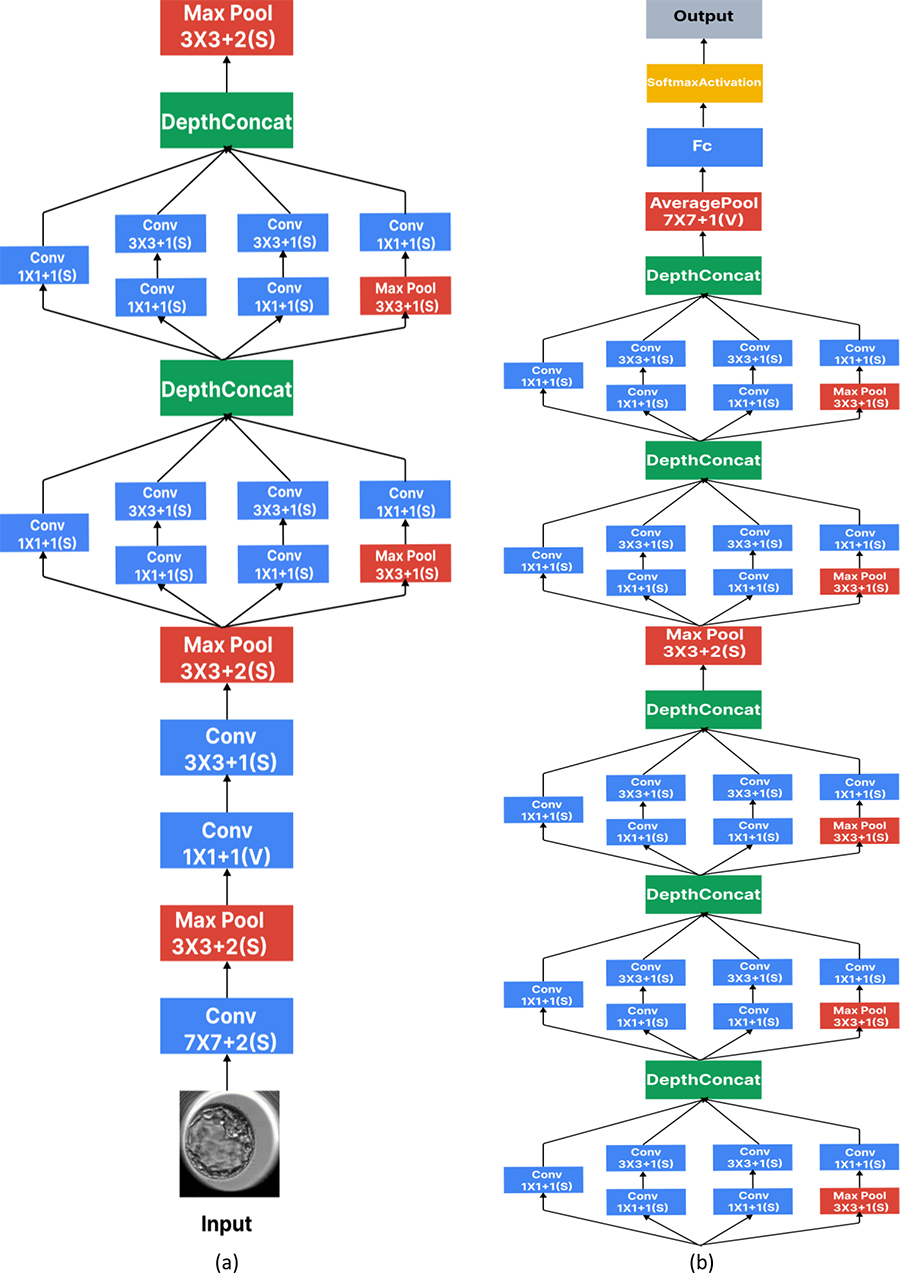

Material and Methods: In this experimental study, a retrospective dataset of embryo images was used to develop and evaluate a deep learning-based classification model in the following main phases: data preprocessing, model implementation, and evaluation. Embryo images were standardized through cropping and normalization to ensure consistency across different imaging systems. The GoogLeNet architecture, pre-trained on the ImageNet dataset, was utilized and further modified to adapt to the specific task of embryo viability classification.

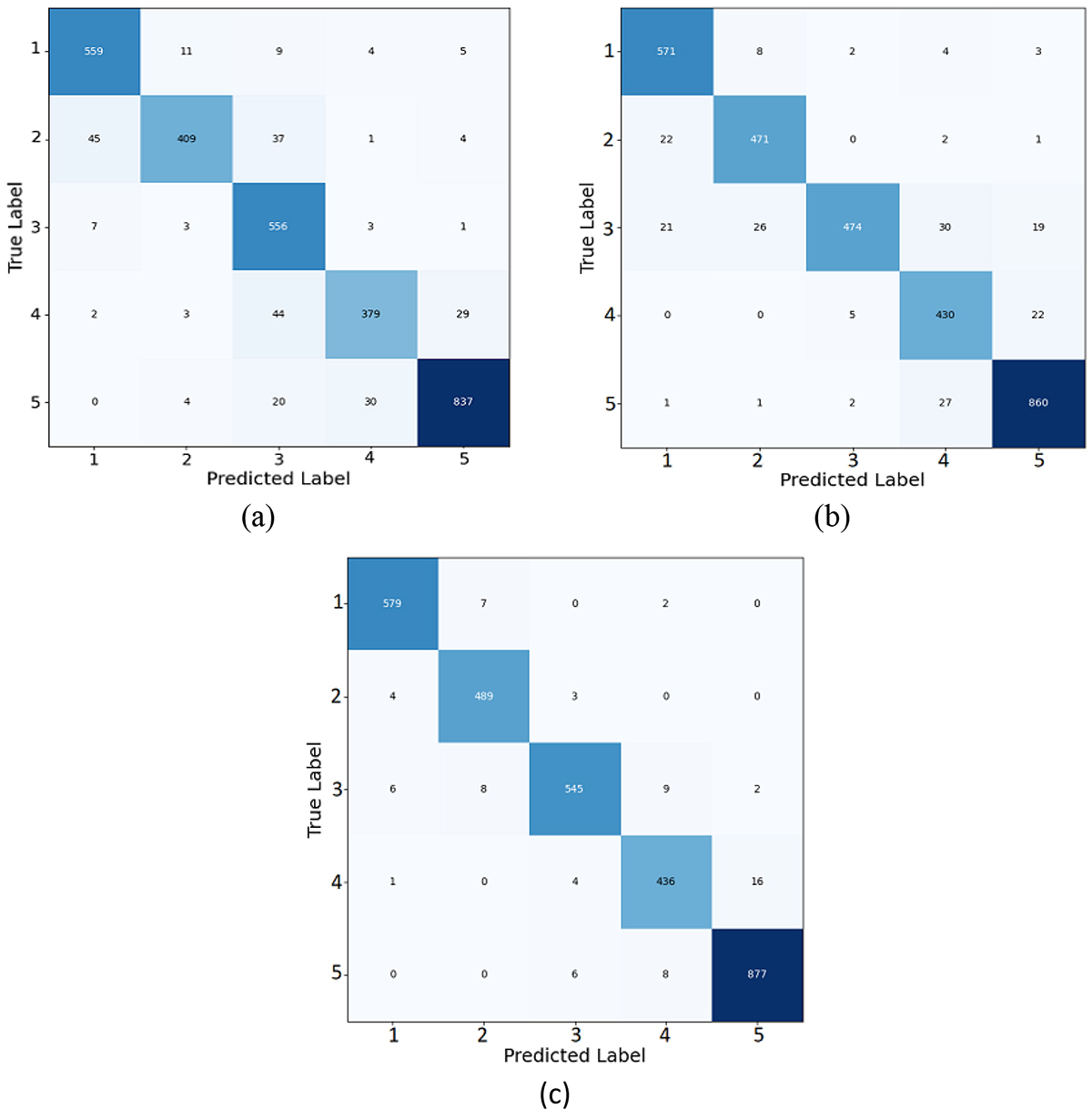

Results: Evaluation on the test dataset demonstrated that the proposed model achieved strong predictive performance, with accuracy, precision, recall, and F1-score all reaching 97%. This performance surpasses that of existing baseline techniques, highlighting the model’s effectiveness.
Conclusion: The proposed transfer learning-based approach using GoogLeNet shows significant potential for improving embryo selection in IVF, thereby reducing the emotional and financial strain associated with repeated IVF failures.

Highlights

Nacer Farajzadeh (Google Scholar)

Keywords

References
  1. Bormann CL, Kanakasabapathy MK, Thirumalaraju P, Gupta R, Pooniwala R, Kandula H, et al. Performance of a deep learning based neural network in the selection of human blastocysts for implantation. 2020;9:e55301. doi: 10.7554/eLife.55301. PubMed PMID: 32930094. PubMed PMCID: PMC7527234.
  2. Merican ZZ, Yusof UK, Abdullah NL. Review on Embryo Selection Based on Morphology Using Machine Learning Methods. Int J Advance Soft Compu Appl. 2021;13(2):44-59.
  3. Kragh MF, Karstoft H. Embryo selection with artificial intelligence: how to evaluate and compare methods? J Assist Reprod Genet. 2021;38(7):1675-89. doi: 10.1007/s10815-021-02254-6. PubMed PMID: 34173914. PubMed PMCID: PMC8324599.
  4. Khosravi P, Kazemi E, Zhan Q, Malmsten JE, Toschi M, Zisimopoulos P, et al. Deep learning enables robust assessment and selection of human blastocysts after in vitro fertilization. NPJ Digit Med. 2019;2:21. doi: 10.1038/s41746-019-0096-y. PubMed PMID: 31304368. PubMed PMCID: PMC6550169.
  5. Afnan MA, Rudin C, Conitzer V, Savulescu J, Mishra A, Liu Y, Afnan M. Ethical implementation of artificial intelligence to select embryos in in vitro fertilization. In Proceedings of the 2021 AAAI/ACM Conference on AI, Ethics, and Society; USA: Association for Computing Machinery; 2021. p. 316-26.
  6. Liao Q, Zhang Q, Feng X, Huang H, Xu H, Tian B, et al. Development of deep learning algorithms for predicting blastocyst formation and quality by time-lapse monitoring. Commun Biol. 2021;4(1):415. doi: 10.1038/s42003-021-01937-1. PubMed PMID: 33772211. PubMed PMCID: PMC7998018.
  7. Gardner DK, Lane M, Stevens J, Schlenker T, Schoolcraft WB. Blastocyst score affects implantation and pregnancy outcome: towards a single blastocyst transfer. Fertil Steril. 2000;73(6):1155-8. doi: 10.1016/s0015-0282(00)00518-5. PubMed PMID: 10856474.
  8. Patil SN, Wali U, Swamy MK, Nagaraj SP, Patil N. Deep learning techniques for automatic classification and analysis of human in vitro fertilized (IVF) embryos. J Emerg Technol Innov Res. 2018;5(4):100-6.
  9. Berntsen J, Rimestad J, Lassen JT, Tran D, Kragh MF. Robust and generalizable embryo selection based on artificial intelligence and time-lapse image sequences. PLoS One. 2022;17(2):e0262661. doi: 10.1371/journal.pone.0262661. PubMed PMID: 35108306. PubMed PMCID: PMC8809568.
  10. Patil SN, Wali UV, Swamy MK. Selection of single potential embryo to improve the success rate of implantation in IVF procedure using machine learning techniques. In International Conference on Communication and Signal Processing (ICCSP); Chennai, India: IEEE; 2019. p. 0881-6.
  11. Kaufmann SJ, Eastaugh JL, Snowden S, Smye SW, Sharma V. The application of neural networks in predicting the outcome of in-vitro fertilization. Hum Reprod. 1997;12(7):1454-7. doi: 10.1093/humrep/12.7.1454. PubMed PMID: 9262277.
  12. Thirumalaraju P, Kanakasabapathy MK, Bormann CL, Gupta R, Pooniwala R, Kandula H, et al. Evaluation of deep convolutional neural networks in classifying human embryo images based on their morphological quality. Heliyon. 2021;7(2):e06298. doi: 10.1016/j.heliyon.2021.e06298. PubMed PMID: 33665450. PubMed PMCID: PMC7907476.
  13. Bormann CL, Thirumalaraju P, Kanakasabapathy MK, Kandula H, Souter I, Dimitriadis I, et al. Consistency and objectivity of automated embryo assessments using deep neural networks. Fertil Steril. 2020;113(4):781-7. doi: 10.1016/j.fertnstert.2019.12.004. PubMed PMID: 32228880. PubMed PMCID: PMC7583085.
  14. Chen TJ, Zheng WL, Liu CH, Huang I, Lai HH, Liu M. Using deep learning with large dataset of microscope images to develop an automated embryo grading system. Fertility & Reproduction. 2019;1(01):51-6. doi: 10.1142/S2661318219500051.
  15. Hernández-González J, Inza I, Crisol-Ortíz L, Guembe MA, Iñarra MJ, Lozano JA. Fitting the data from embryo implantation prediction: Learning from label proportions. Stat Methods Med Res. 2018;27(4):1056-66. doi: 10.1177/0962280216651098. PubMed PMID: 27242336.
  16. Petersen BM, Boel M, Montag M, Gardner DK. Development of a generally applicable morphokinetic algorithm capable of predicting the implantation potential of embryos transferred on Day 3. Hum Reprod. 2016;31(10):2231-44. doi: 10.1093/humrep/dew188. PubMed PMID: 27609980. PubMed PMCID: PMC5027927.
  17. Silver DH, Feder M, Gold-Zamir Y, Polsky AL, Rosentraub S, Shachor E, et al. Data-driven prediction of embryo implantation probability using IVF time-lapse imaging [Internet]. arXiv [Preprint]. 2020 [cited 2020 Jun 1]. Available from: https://arxiv.org/abs/2006.01035.
  18. Cao Q, Liao SS, Meng X, Ye H, Yan Z, Wang P. Identification of viable embryos using deep learning for medical image. In Proceedings of the 5th International Conference on Bioinformatics Research and Applications; USA: Association for Computing Machinery; 2018. p. 69-72.
  19. Kragh MF, Rimestad J, Berntsen J, Karstoft H. Automatic grading of human blastocysts from time-lapse imaging. Comput Biol Med. 2019;115:103494. doi: 10.1016/j.compbiomed.2019.103494. PubMed PMID: 31630027.
  20. Durairaj M, Thamilselvan P. Applications of artificial neural network for IVF data analysis and prediction. Journal of Engineering, Computers, and Applied Sciences. 2013;2(9):11-5.
  21. Liu R, Bai S, Jiang X, Luo L, Tong X, Zheng S, et al. Multifactor Prediction of Embryo Transfer Outcomes Based on a Machine Learning Algorithm. Front Endocrinol (Lausanne). 2021;12:745039. doi: 10.3389/fendo.2021.745039. PubMed PMID: 34795639. PubMed PMCID: PMC8593232.
  22. Goyal A, Kuchana M, Ayyagari KPR. Machine learning predicts live-birth occurrence before in-vitro fertilization treatment. Sci Rep. 2020;10(1):20925. doi: 10.1038/s41598-020-76928-z. PubMed PMID: 33262383. PubMed PMCID: PMC7708502.
  23. Kanakasabapathy MK, Thirumalaraju P, Kandula H, Doshi F, Sivakumar AD, Kartik D, et al. Adaptive adversarial neural networks for the analysis of lossy and domain-shifted datasets of medical images. Nat Biomed Eng. 2021;5(6):571-85. doi: 10.1038/s41551-021-00733-w. PubMed PMID: 34112997. PubMed PMCID: PMC8943917.
  24. Thakkar P, Varma K, Ukani V, Mankad S, Tanwar S. Combining user-based and item-based collaborative filtering using machine learning. In Information and Communication Technology for Intelligent Systems; Singapore: Springer; 2019. p. 173-180.
  25. Tran D, Cooke S, Illingworth PJ, Gardner DK. Deep learning as a predictive tool for fetal heart pregnancy following time-lapse incubation and blastocyst transfer. Hum Reprod. 2019;34(6):1011-8. doi: 10.1093/humrep/dez064. PubMed PMID: 31111884. PubMed PMCID: PMC6554189.
  26. Szegedy C, Liu W, Jia Y, Sermanet P, Reed S, Anguelov D, et al. Going deeper with convolutions. In Proceedings of the IEEE conference on computer vision and pattern recognition; USA: CVPR; 2015. p. 1-9.
  27. Szegedy C, Vanhoucke V, Ioffe S, Shlens J, Wojna Z. Rethinking the inception architecture for computer vision. In Proceedings of the IEEE conference on computer vision and pattern recognition; USA: CVPR; 2016. p. 2818-26.
  28. Basha SS, Ghosh S, Babu KK, Dubey SR, Pulabaigari V, Mukherjee S. Rccnet: An efficient convolutional neural network for histological routine colon cancer nuclei classification. In 15th International Conference on Control, Automation, Robotics and Vision; Singapore: ICARCV; 2018. p. 1222-7.
