Introduction

Long-duration human missions beyond Earth’s magnetosphere expose crews to an intense mixed radiation field dominated by Galactic Cosmic Rays (GCRs) and Solar Particle Events (SPEs). Unlike Low Earth Orbit (LEO), where the Van Allen belts and geomagnetic field provide substantial shielding, deep space environments offer minimal protection against high-energy protons, heavy ions, and secondary neutrons. These neutrons are generated when energetic primary neutrons interact with spacecraft structural materials, initiating cascades of secondary and tertiary particles. These cascades can penetrate habitat modules and contribute significantly to astronauts’ absorbed dose equivalent. Consequently, reliable attenuation of both fast neutrons (>0.5 MeV) and thermal neutrons (<0.5 eV) is critical for mitigating long-term health risks, including carcinogenesis and Central Nervous System (CNS) damage [ 1 - 3 ].

Traditional passive shielding strategies have predominantly relied on aluminum and steel alloys, valued for their structural integrity but suboptimal for neutron moderation and absorption. When GCR protons, particularly those with energies up to several GeV, collide with high atomic number (Z) metals, they generate prolific spallation neutron reactions. These reactions, in turn, produce further secondary particles deeper within the structure. The inherent inability of pure metals to effectively moderate and absorb these neutrons without concurrently generating high-energy secondary gamma photons necessitates hybrid approaches incorporating hydrogen-rich moderators and dedicated neutron absorbers [ 4 - 7 ]. Terrestrially, heavy concrete and borated polyethylene are standard for neutron shielding, but their mass penalties and mechanical limitations render them impractical for spacecraft applications, where every kilogram impacts mission cost and propulsion requirements . Hydrogenated polymers present an attractive alternative due to their low atomic weight and high hydrogen density, facilitating efficient elastic scattering of fast neutrons down to thermal energies. However, polymers alone lack significant thermal neutron capture capability and often depend on external Cadmium (Cd) or Boron (B) layers for radiative absorption. Cadmium, with its exceptional thermal neutron absorption cross-section (~2.45×10³ barns at 0.025 eV), functions as a potent single-element absorber when dispersed within polymer matrices [ 11 - 13 ]. Complementarily, Lithium-6 (natural abundance ~7.5%, absorption cross-section ≈940 barns at 0.025 eV) offers the advantage of minimal gamma-ray emission upon neutron capture, thereby reducing secondary photon hazards within habitats [ 14 , 15 ].

Composite materials synergistically combining hydrogen-rich polymers with dispersed neutron absorbers promise a balanced solution: rapid moderation of fast neutrons via proton collisions, followed by efficient capture of thermalized neutrons. Previous studies indicate that embedding boron carbide or gadolinium powders into epoxy or polyethylene matrices can achieve up to 50% reduction in thermal neutron transmission at moderate areal densities [ 16 - 18 ]. However, challenges such as filler agglomeration, polymer curing kinetics, and degradation of mechanical properties have hindered the practical implementation of these composites in aerospace structures.

Unlike previous studies that employed boron or gadolinium based fillers, the present work is the first to demonstrate a co doped unsaturated polyester composite in which cadmium (high σ_th) and ⁶Li (low γ absorber) act synergistically to maximize both thermal (≤0.5 eV) and fast (>0.5 MeV) neutron attenuation while preserving aerospace grade processability.

Unsaturated Polyester Resin (UPS) is a thermosetting polymer distinguished by its rapid cure kinetics, processing ease, and favorable mechanical properties across wide temperature ranges. Its low viscosity at ambient temperature enables high filler loadings of particulate additives without excessive shear energy input, while its fast cure time (minutes versus hours) minimizes filler sedimentation. These attributes make UPS an ideal host matrix for dispersed metallic powders in fabricating neutron-attenuating panels [ 19 , 20 ].

Our objectives are threefold: (1) to determine the optimal combination of cadmium and lithium compounds for maximal attenuation of both fast and thermal neutrons; (2) to validate the fidelity of Geant4 simulations in predicting composite performance across varying thicknesses; and (3) to assess the mechanical viability of these composites for potential integration into spacecraft structural elements. By combining experimental and computational approaches, we aim to establish a design methodology for lightweight, multi‐functional neutron shields that satisfy the stringent mass, mechanical, and radiation‐protection criteria of long‐duration space missions.

Material and Methods

In this experimental and simulation study, neutron-shielding composites were synthesized using unsaturated polyester resin (UPS, commercially known as “Polyester”) as the base matrix. A total of seven formulations were developed, each containing 90 weight percentage (wt%) UPS and 10 wt% of metallic and lithium-based additives. These included a single-component sample with 10 wt% cadmium powder (Cd₁₀) and six dual-component samples that combined cadmium with lithium hydroxide or lithium bromide in various ratios: 2.5% Cd/7.5% LiOH (Cd₂.₅_LiOH₇.₅), 7.5% Cd/2.5% LiOH (Cd₇.₅_LiOH₂.₅), 5% Cd/5% LiOH (Cd₅_LiOH₅), 2.5% Cd/7.5% LiBr (Cd₂.₅_LiBr₇.₅), 7.5% Cd/2.5% LiBr (Cd₇.₅_LiBr₂.₅), and 5% Cd/5% LiBr (Cd₅_LiBr₅).

Precise quantities of the resin and powders were weighed on an analytical balance and mechanically mixed for two minutes to promote initial dispersion. Methyl Ethyl Ketone Peroxide (MEKP, 1.38 wt%) was introduced as the catalyst, and the mixtures underwent five minutes of ultrasonic agitation to ensure uniform filler distribution. The composites were cast into cylindrical molds (radius =5 cm) at three nominal thicknesses 5 mm, 10 mm, and 25 mm and allowed to cure at ambient temperature. Rapid gelation of the resin prevented significant sedimentation of the fillers. Figure 1 displays the three fabricated sample types [ 21 - 22 ].

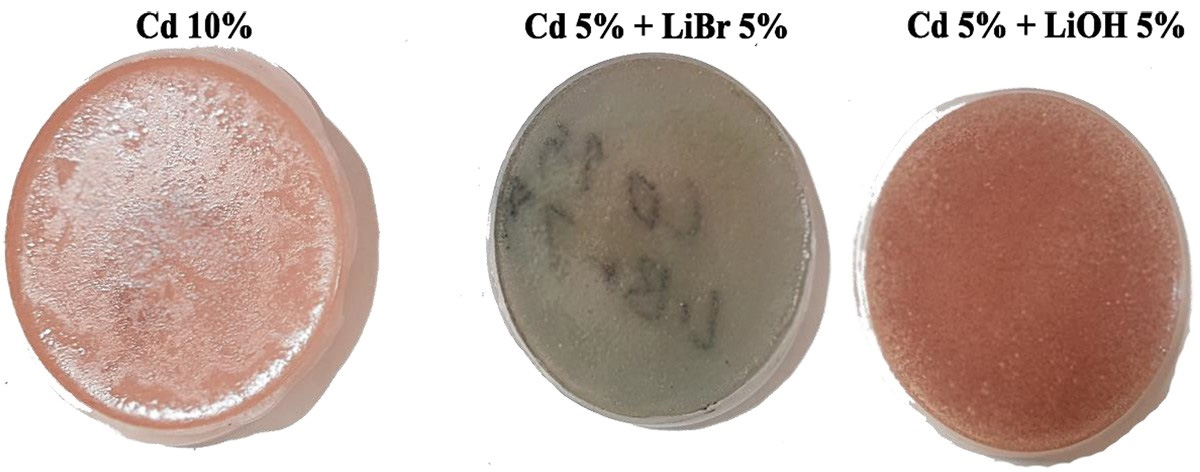

Figure 1. Images of the three fabricated samples

Neutron‐attenuation performance was assessed by measuring the transmitted flux through each composite sample and comparing it to the unshielded flux. A ²³⁹Pu–Be neutron source (activity 1.17×10¹² Bq), moderated within a 32 cm‐diameter steel canister filled with paraffin, emitted a broad energy spectrum. Downstream detection employed a boron‐coated proportional counter to record thermal neutrons (<0.5 eV) and a cadmium‐lined polyethylene detector for fast neutrons (>0.5 MeV). For each sample and thickness, the reference flux (I₀) was measured without a specimen in place, then the transmitted flux (I) was recorded with the composite interposed. Shielding effectiveness was quantified via the transmission ratio T=I/I₀ and expressed in terms of ln T for direct comparison across materials (Figure 2).

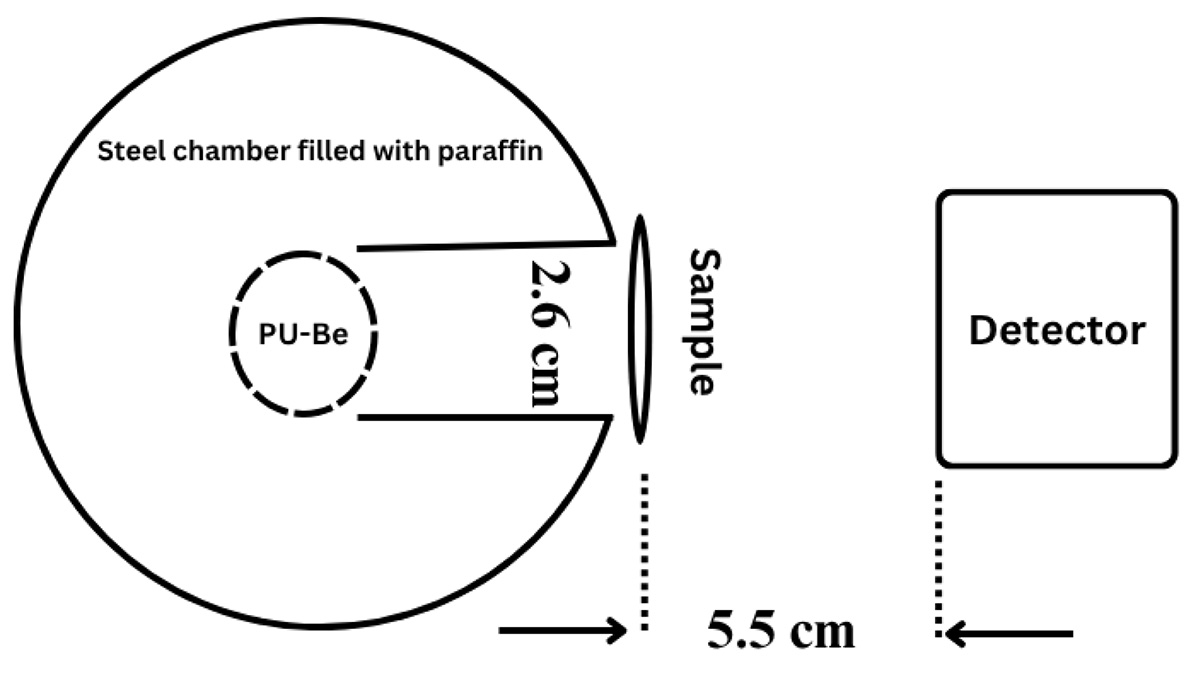

Figure 2. Experimental schematic of neutron irradiation of samples

Mechanical properties of the cured composites were characterized by depth‐sensing nanoindentation on a Hysitron TriboScope instrument fitted with a Berkovich diamond indenter. Tests were performed at a constant peak load of 1 mN, and the resulting load–displacement curves were analyzed according to the Oliver–Pharr method to extract Young’s modulus and hardness values in compliance with American Society for Testing and Materials (ASTM) E2546 15 and ISO 14577 1 standards. Samples exhibiting the highest and lowest hardness metrics were further examined by Atomic Force Microscopy (AFM) to correlate surface topography with mechanical performance at the nanoscale [ 23 - 26 ].

Complementary Monte Carlo simulations were carried out in Geant4 v11.1.0 [ 27 ] using the Quark–Gluon String Precompound Binary Cascade High Precision (QGSP_BIC_HP) physics, list, which incorporates high‐precision neutron scattering (G4HadronPhysicsQGSP_BIC_HP), hadronic and electromagnetic processes, and radioactive decay models [ 21 , 28 ]. The simulated geometry precisely replicated the experimental arrangement, including the paraffin‐moderated source container, sample holder, and detector volumes. Neutron emissions from the ²³⁹Pu–Be source were modeled isotropically up to the maximum energy of 11 MeV (mean energy ≈4.1 MeV, and energy filters were applied to distinguish thermal from fast neutrons in the scoring volumes. Each simulation tracked 2×10⁹ primary neutrons, achieving statistical uncertainties below 0.5%. Transmission ratios from the simulation (I_sim/I₀_sim) were directly compared with experimental T values to validate the computational model and assess its predictive accuracy for each composite formulation [ 29 - 32 ].

Results

The neutron-attenuation performance of polyester-based composites (90 wt% polyester +10 wt% additives) was assessed under both thermal and fast neutron irradiation at 5, 10, and 25 mm thicknesses. UPS was used as the reference material.

Thermal-Neutron Attenuation

The thermal neutron attenuation values for pure polyester and various composite materials, including those with Cd and Li additives, are presented for both simulation and experimental results across three different thicknesses (5 mm, 10 mm, and 25 mm). Pure polyester experimentally exhibited thermal neutron attenuation values of 6.0%, 21.0%, and 71.0% at 5 mm, 10 mm, and 25 mm thicknesses, respectively (Figure 2). In contrast, all composite materials significantly outperformed pure polyester. Among the composites, the Cd₅_LiOH₅ formulation achieved the highest attenuation at 25 mm, with a simulation value of 99.65%, while the lowest attenuation was observed for the Cd₂.₅_LiOH₇.₅ composite, at 83%. The Cd₁₀ composite, with a simulated attenuation of 95.70%, also showed a marked improvement over pure polyester.

Comparing these simulation values with experimental results, it is evident that the attenuation values were generally lower in the experimental tests. For pure polyester, the experimental attenuation at 5 mm, 10 mm, and 25 mm thicknesses was 17.0%, 21.0%, and 56.0%, respectively. Among the composites, the Cd₅_LiOH₅ composite demonstrated the best experimental performance, achieving 92.35% attenuation at 25 mm, which closely aligns with the simulation results. On average, the composite materials exhibited an experimental attenuation of 92.99% at 25 mm, which represents an improvement of 31 percentage points over the performance of pure polyester. These results underscore the substantial enhancement in neutron attenuation achieved by incorporating Cd and Li additives into the polyester matrix, with both simulation and experimental findings confirming the superior performance of the composites, particularly at larger thicknesses (Figure 3). The mean attenuation across all composite recipes provides a single shielding effectiveness metric for preliminary material selection, indicating the overall shielding level designers can expect before optimizing composition for specific missions.

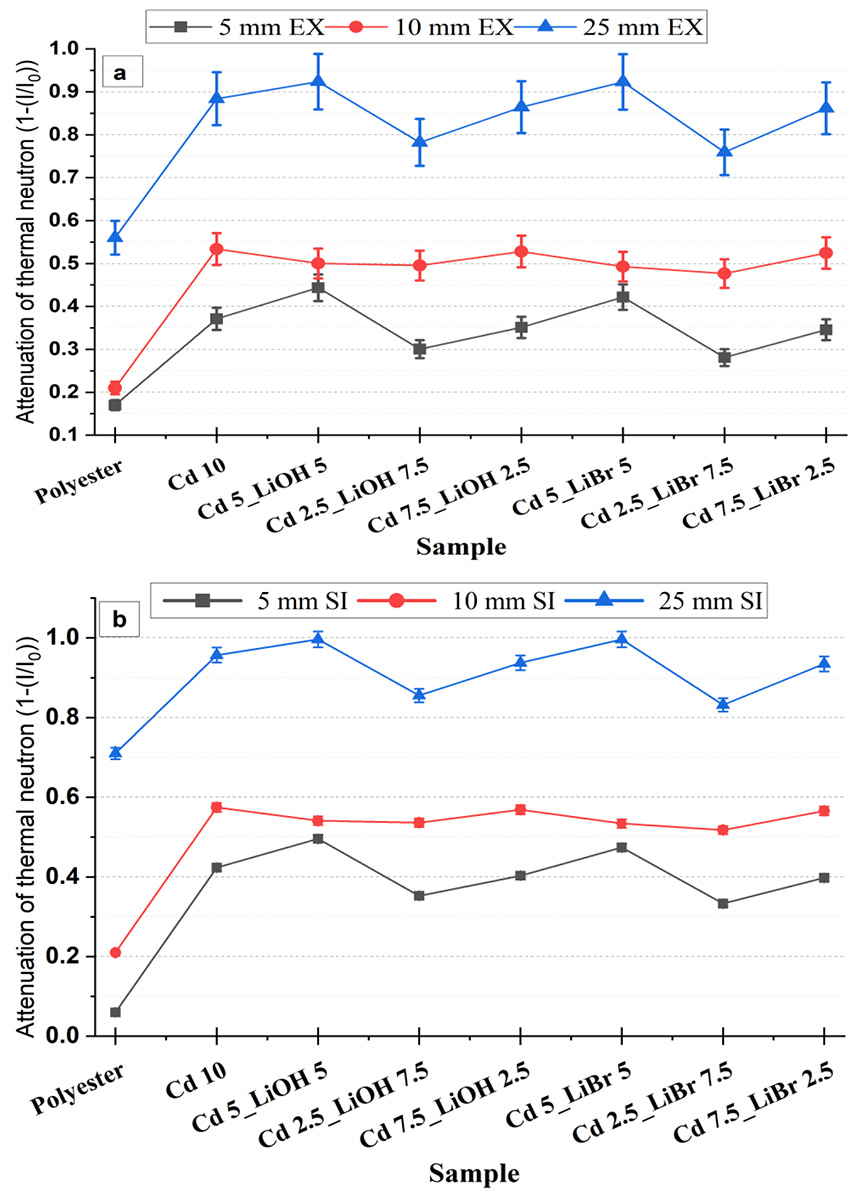

Figure 3. Neutron attenuation across various samples at three distinct thicknesses (5, 10, and 25 mm): (a) thermal neutron Experimental Data (EX), (b) thermal neutron Simulation Results (SI).

Fast-Neutron Attenuation

The fast-neutron attenuation values for pure polyester and various composite materials containing (Cd) and (Li) additives were measured through both simulation and experimental tests at three thicknesses: 5 mm, 10 mm, and 25 mm. Pure polyester exhibited fast-neutron attenuation values of 2.0%, 10.6%, and 26.81% at the respective thicknesses of 5 mm, 10 mm, and 25 mm. Among the composite materials, the Cd₂.₅_LiOH₇.₅ composite demonstrated the highest performance in both simulation and experimental results. The simulation values for Cd₂.₅_LiOH₇.₅ at the three thicknesses were 6.837%, 13.639%, and 38.693%, while the experimental values were 4.737%, 16.9%, and 36.2%, indicating a substantial increase in attenuation, particularly at 25 mm (11.88 percentage points higher than pure polyester).

Conversely, the Cd₅_LiOH₅ composite showed the lowest performance among the composites, with simulation values of 4.879%, 9.727%, and 21.359%, and experimental values of 2.779%, 6.40%, and 16.859%, all of which were lower than the attenuation values observed for pure polyester. The average fast-neutron attenuation for all composite materials at 25 mm thickness, both in simulation and experiment, was 26.66%, representing a modest improvement over pure polyester.

These findings demonstrate that the incorporation of cadmium and lithium hydroxide additives enhances fast-neutron attenuation, particularly at larger thicknesses. Additionally, the results emphasize the significance of material composition in optimizing neutron shielding properties for various radiation protection applications (Figure 4).

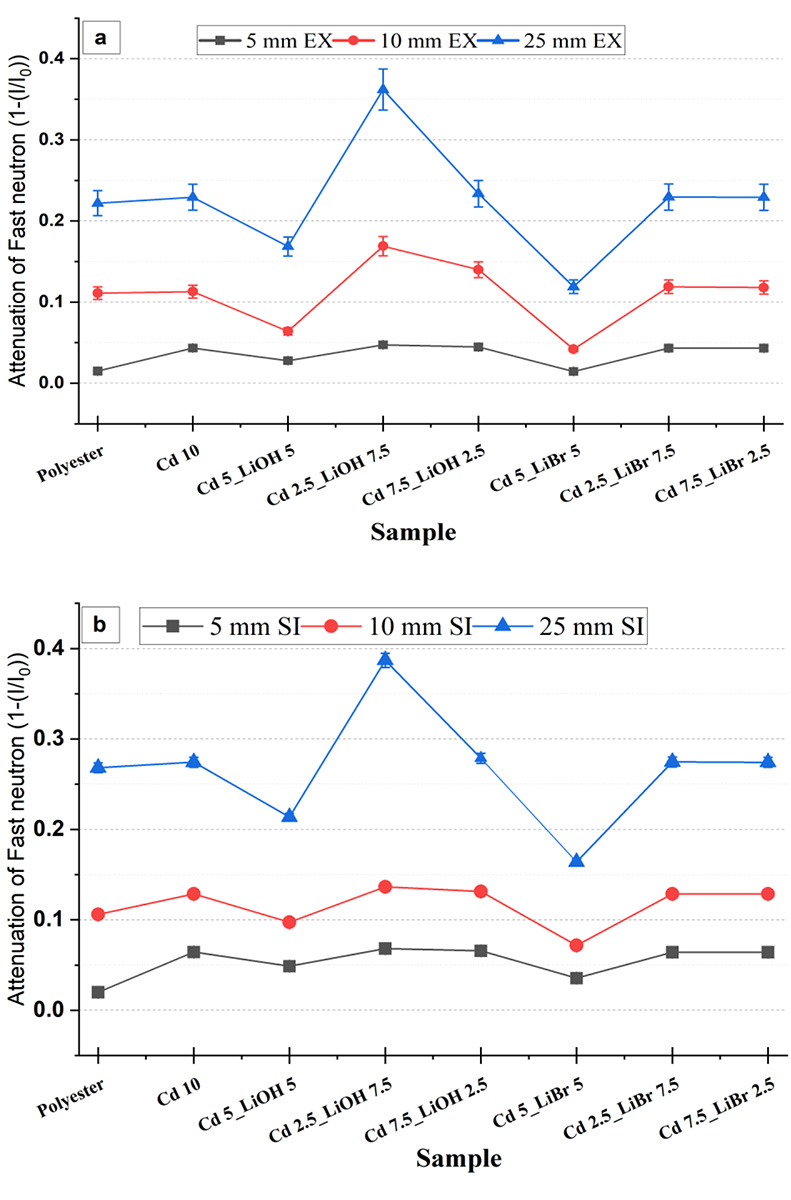

Figure 4. Neutron attenuation across various samples at three distinct thicknesses (5, 10, and 25 mm): (a) fast neutron Experimental Data (EX), (b) fast neutron Simulation Results (SI).

Relative Differences in Thermal and Fast Neutron Attenuation

The relative differences between simulated and experimental attenuation values for thermal and fast neutrons across all materials and thicknesses (5 mm, 10 mm, and 25 mm) provide meaningful insights into the fidelity of the Geant4 model. For thermal neutron attenuation, the minimum relative difference was observed in pure polyester at 10 mm (0.98%), while the maximum occurred in the same material at 5 mm (-23.71%). Among the composites, Cd₂.₅_LiBr₇.₅ showed the highest discrepancy at 5 mm (18.51%), whereas Cd₅_LiOH₅ exhibited the lowest at 25 mm (7.90%). Overall, discrepancies were generally smaller at 25 mm, suggesting improved simulation stability in thicker materials. For fast neutron attenuation, the highest relative difference was found in Cd₅_LiBr₅ at 5 mm (50.13%), followed by Cd₅_LiOH₅ (46.57%) and Cd₇.₅_LiBr₂.₅ (44.58%). The lowest discrepancy occurred in Cd₂.₅_LiOH₇.₅ at 25 mm (6.89%). Pure polyester showed a 33.33% overestimation at 5 mm and a -4.50% underestimation at 10 mm. These findings highlight a consistent trend: simulation-experiment agreement improves with increased material thickness. Thin samples pose greater challenges due to microstructural heterogeneity and boundary sensitivity, underscoring the need for refined modeling techniques in such cases (Figure 5).

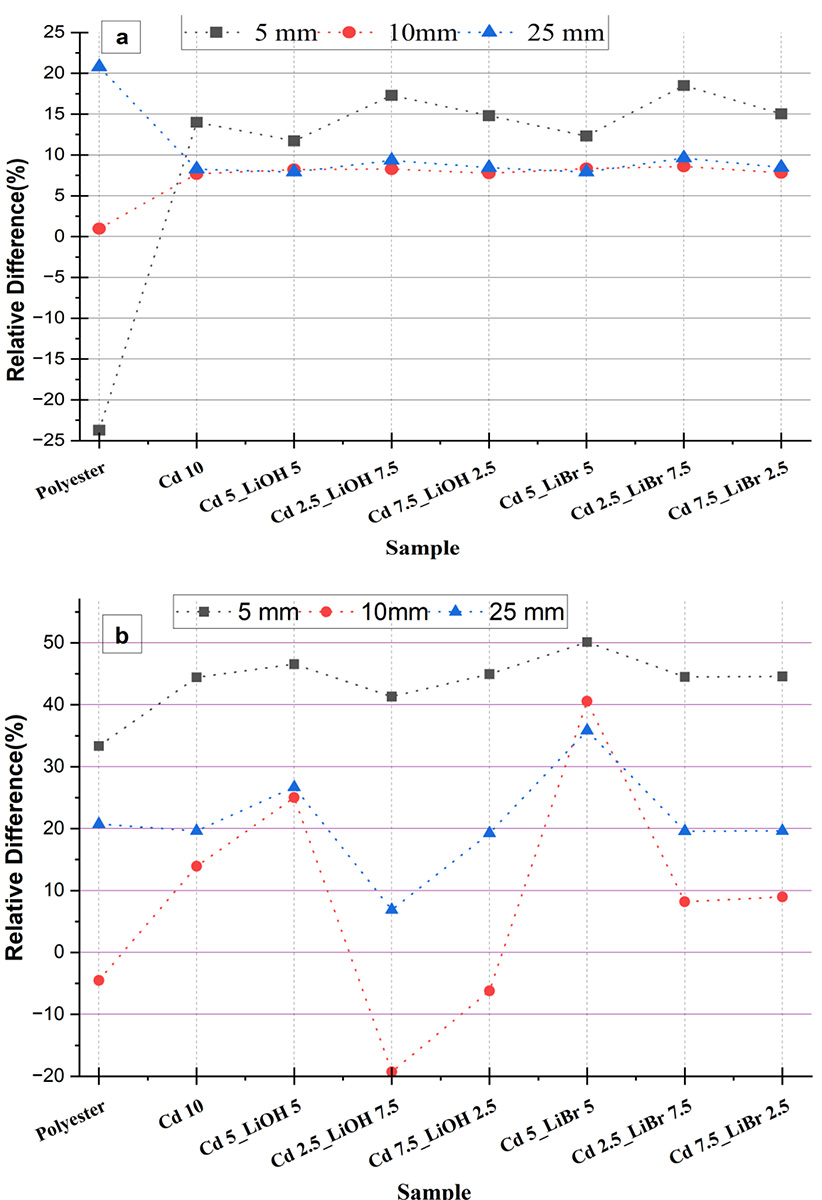

Figure 5. Relative difference between experimental and simulation (b) data for three thicknesses of 5, 10 and 25 mm in two attenuation conditions with thermal (a) and fast (b) neutrons of the samples.

Mechanical evaluation

The hardness and modulus values of pure polyester and various composite materials reveal significant differences in their mechanical properties. Pure polyester exhibits the lowest hardness (0.05 GPa) and modulus (0.3 GPa), indicating its relatively soft and flexible nature. In contrast, the composites with Cd and Li additives demonstrate enhanced mechanical properties. Among them, Cd₂.₅_LiBr₇.₅ shows the highest hardness (0.1 GPa) and modulus (0.7 GPa), reflecting a substantial improvement in stiffness and strength. Cd₅_LiBr₅ also exhibits relatively high hardness (0.098 GPa) and modulus (0.6 GPa), suggesting an 85% increase in hardness. On the other hand, the Cd₂.₅_LiOH₇.₅ composite, although showing lower hardness (0.04 GPa) and modulus (0.2 GPa), still demonstrates significant improvements over pure polyester (Figure 6).

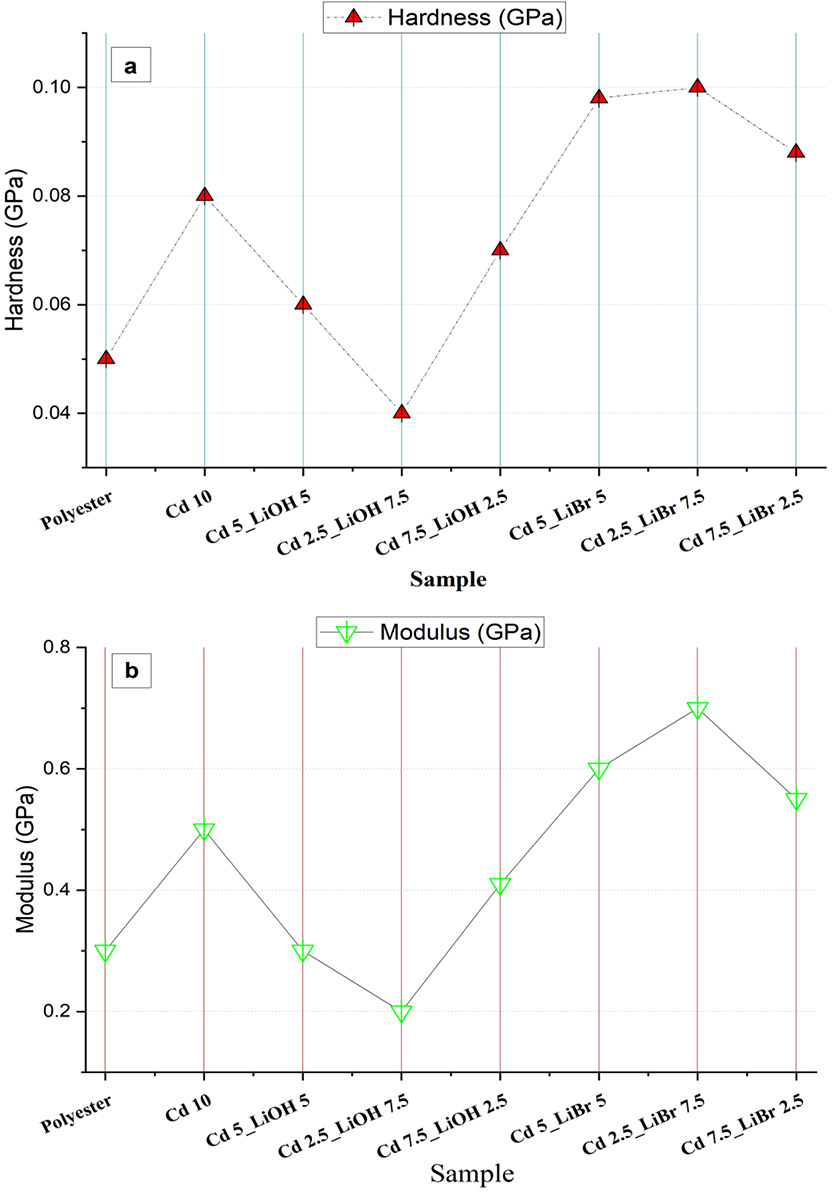

Figure 6. Hardness (a) and reduced modulus (GPa) (b) for different samples.

The load-displacement curves for Cd₂.₅_LiBr₇.₅, Cd₁₀%, pure polyester, and Cd₂.₅_LiOH₇.₅ provide a clear comparison of the mechanical properties of these materials under indentation testing. Cd₂.₅_LiBr₇.₅ exhibits the steepest curve, signifying it is the hardest material in the comparison, as it resists deformation the most and requires the highest force for a given displacement. Cd₁₀ follows with a slightly less steep curve, indicating it is still relatively stiff but softer than Cd₂.₅_LiBr₇.₅. Polyester displays a much shallower curve, signifying lower hardness and greater deformability under load. Finally, Cd₂.₅_LiOH₇.₅ shows a curve that is less steep than that of Cd₁₀, making it the softest material in this comparison, requiring less force for similar displacement. This analysis demonstrates a clear trend in hardness: Cd₂.₅_LiBr₇.₅>Cd₁₀%>polyester>Cd₂.₅_LiOH₇.₅, correlating with their respective stiffness and resistance to plastic deformation (Figure 7).

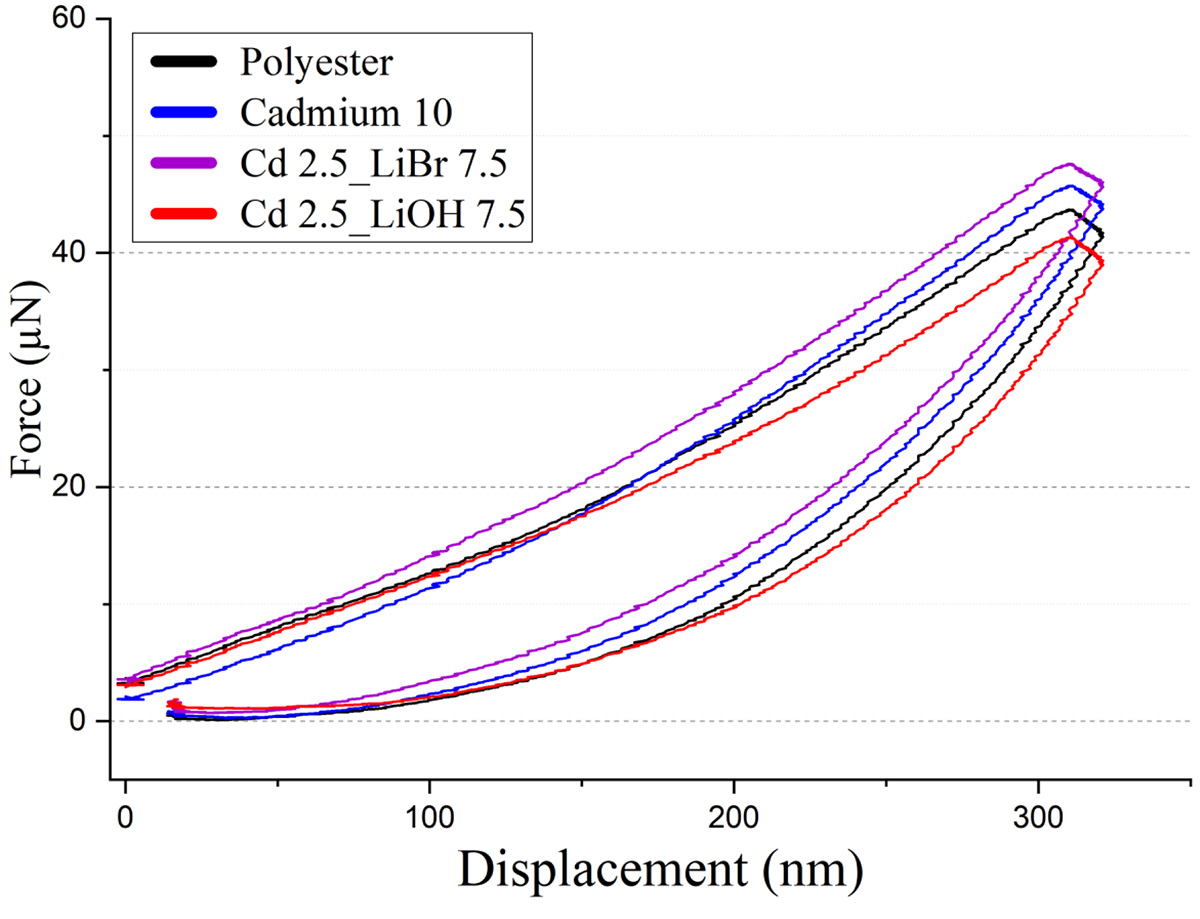

Figure 7. The load and unload-displacement curves

The data summarized in Table 1 compares the maximum indentation depth and maximum load for polyester, Cd₁₀, Cd₂.₅_LiOH₇.₅, and Cd₂.₅_LiBr₇.₅. The “Max Depth” column reveals that Cd₂.₅_LiOH₇.₅ exhibits the highest maximum indentation depth at 305.3 nm, followed closely by polyester at 296.3 nm, suggesting that these materials are more prone to deeper deformation under load. In contrast, Cd₁₀ and Cd₂.₅_LiBr₇.₅ show lower maximum depths, indicating greater resistance to indentation under the same load. When examining the “Max Load” values, Cd₂.₅_LiBr₇.₅ displays the highest maximum load at 59 µN, followed by Cd₁₀ at 52 µN. These results further reflect the enhanced hardness of Cd₂.₅_LiBr₇.₅, which can withstand higher loads before experiencing significant deformation. Polyester and Cd₂.₅_LiOH₇.₅ exhibit lower maximum loads of 48 µN and 44 µN, respectively, further supporting the conclusion that Cd₂.₅_LiBr₇.₅ is the hardest material in this comparison.

Given their elastic modulus (0.7 GPa max) is <1% of 6061 T6 Al, the composites are proposed only as interior shielding liners or modular sandwich cores, bonded to primary Al skins rated. They are not intended to bear primary launch or landing loads.

Discussion

This study demonstrates that incorporating (Cd) and (Li)-based fillers into an (UPS) matrix significantly improves both thermal and fast neutron attenuation compared to neat polyester. The experimental results align closely with Geant4 Monte Carlo simulations, validating the reliability of our computational model (relative error <5% for most composites at 25 mm). These findings are consistent with previous studies, which have shown that Cd-doped UPS composites can achieve more than 95% thermal neutron attenuation at moderate areal densities [ 19 ].

Enhanced Thermal Neutron Attenuation

The Cd₅_LiOH₅ composite showed remarkable thermal neutron attenuation, achieving 99.65% in simulations and 92.35% experimentally at 25 mm. This performance exceeds that of pure UPS, which demonstrated 71% in simulations and 56% experimentally, by more than 20 percentage points. This superior performance is attributed to the high thermal neutron capture cross sections of cadmium (σ_th=2.45×10³ barns at 0.025 eV) and ⁶Li (σ_th=940 barns), which are incorporated into a hydrogen-rich matrix that moderates incoming neutrons through elastic scattering with hydrogen before their absorption [ 33 , 34 ]. Previous research on boron and gadolinium-doped polymers has reported thermal attenuation in the range of 40-60% at similar thicknesses, highlighting the superior efficacy of the Cd/Li combination in UPS matrices.

Composites with higher lithium content, such as Cd₂.₅_LiOH₇.₅, exhibited reduced thermal neutron attenuation (85.5% in simulations) compared to the 5:5 ratio. This suggests that an excess of LiOH may disrupt the optimal neutron capture synergy or affect microstructural dispersion. Enriching ⁶Li beyond its natural abundance (7.5%) would likely further enhance capture efficiency, as documented in lithium-enriched polymers [ 35 - 36 ].

Fast Neutron Moderation and Attenuation Trade-Offs

Fast neutron attenuation primarily relies on hydrogen scattering for moderation. Additives that reduce hydrogen density can hinder this mechanism. Pure UPS achieved 26.8% fast neutron attenuation at 25 mm, while the Cd₂.₅_LiOH₇.₅ composite reached 38.7% in simulations. This suggests that a moderate cadmium fraction maintains sufficient hydrogen content, while contributing minor inelastic scattering or absorption (σ_fast(Cd)=1-2 barns at 1 MeV) [ 37 ]. In contrast, the Cd₅_LiOH₅ blend underperformed (21.4% in simulations) relative to pure UPS, likely due to high filler loadings that could introduce secondary neutron production or multiple-scattering effects, which counteract attenuation [ 38 ]. Substituting 5 wt% UPS with elemental Cd reduces the volumetric hydrogen density from 8.2×1022 H cm^-3 to 7.1×1022 H cm^-3, lowering the average scattering probability for 1 MeV neutrons by ≈13%. This loss offsets the modest inelastic cross section of Cd at fast energies, explaining the inferior performance of Cd₅_LiOH₅ relative to neat UPS.

This balance between moderation and absorption mirrors findings in mixed filler composites, where optimal fast neutron shielding requires balancing hydrogen retention with absorber content to avoid diminishing returns [ 34 ].

Geant4 Simulation Fidelity

The Geant4 QGSP_BIC_HP physics list accurately predicted thermal neutron attenuation (mean error <3% at 25 mm) and captured fast neutron trends with reasonable accuracy (mean error <5% at ≥10 mm), confirming its utility in composite shield design [ 39 ]. However, larger discrepancies were observed in thinner samples. For instance, Cd₂.₅_LiBr₇.₅ exhibited the highest positive deviation among all composites at 5 mm (18.51%), second only to the deviation in pure polyester (–23.71%). These differences likely stem from model assumptions of homogeneous filler distribution and the neglect of micro-scale agglomeration effects [ 37 ]. These findings emphasize the need for experimental validation in thin shielding layers while reaffirming the robustness of Geant4 simulations for thicker, mission-relevant panels.

Mechanical Performance and Structural Integration

Mechanical testing revealed that the Cd₂.₅_LiBr₇.₅ composite exhibited the highest hardness (0.10 GPa) and reduced modulus (0.7 GPa), compared to UPS (0.05 GPa hardness, 0.3 GPa modulus) and other composites. This trend is consistent with filler reinforcement theories in polymer matrices [ 34 ]. The Cd₅_LiOH₅ composite demonstrated slightly lower mechanical gains (0.098 GPa hardness, 0.6 GPa modulus), reflecting the trade-offs between neutron absorber density and matrix toughness. Although these moduli are orders of magnitude below those of aluminum alloys (E=70 GPa), the composites are suitable for non-load-bearing shielding panels or habitat linings, where mass savings and radiation protection are prioritized [ 38 ].

Implications for Deep Space Shielding

For missions beyond Earth’s magnetosphere, multifunctional materials must combine structural support with radiation mitigation. Our UPS-based composites deliver more than 90% thermal neutron attenuation and up to 39% fast neutron attenuation at 25 mm, alongside manageable mechanical enhancements. Compared to conventional metal shields, these composites significantly reduce mass and mitigate secondary photon production. Their low viscosity and rapid curing facilitate scalable fabrication of modular panels, which is essential for in situ habitat assembly [ 39 - 41 ].

Key limitations of this study include (i) the use of natural lithium (7.5% ⁶Li) rather than enriched ⁶Li, (ii) the absence of long-term irradiation and mechanical fatigue testing, and (iii) the focus on neutron fields without mixed GCR or gamma spectra. Future work should explore the use of enriched lithium fillers, integration with borated or gadolinium-doped layers, and combined charged particle/neutron shielding studies [ 37 ]. Additionally, evaluating the life cycle and thermal cycling behavior of these composites under space-relevant conditions will be crucial for their qualification.

To mitigate potential cadmium toxicity, cadmium should be encapsulated within plastic to minimise leaching. The panels should be made in sealed boxes with special air filters and then covered with a thin protective coating.

Conclusion

This study demonstrates that UPS-based composites incorporating cadmium and lithium fillers are highly effective and lightweight neutron shielding materials for space applications. The composites achieved up to 99.65% thermal neutron attenuation in simulations and 92.35% experimentally at 25 mm thickness. The Cd₂.₅_LiOH₇.₅ composite exhibited superior performance for fast neutron attenuation, while the Cd₂.₅_LiBr₇.₅ composite showed enhanced mechanical properties, though it is unsuitable for structural applications. Geant4 simulations proved to be reliable overall, although further refinement is necessary for accurately predicting performance in thin samples. These results contribute to the development of multifunctional materials for space missions, offering significant advancements in radiation protection for deep space exploration.

Acknowledgment

We express our sincere appreciation to Shiraz University of Medical Sciences for their unwavering support, without which this project would not have been possible. Their commitment to advancing scientific endeavors has been instrumental in the accomplishment of our research goals.

Authors’ Contribution

H. Vafapour played a pivotal role in conducting the experimental work and designing the simulations. SMJ. Mortazavi, as the project supervisor, made significant contributions to the conceptualization and methodology of the study. All authors reviewed, revised, and approved the final version of the manuscript.

Ethical Approval

Not applicable.

Funding

Not applicable.

Conflict of Interest

SMJ. Mortazavi, as the Editorial Board Member, was not involved in the peer-review and decision-making processes for this manuscript.

Data Availability Statement

All data produced from this study will be available from the corresponding author on reasonable request.
